16401 - Toro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE BRIGGS & STRATTON MODEL 122702-3171-01 Parts Diagram

Walk-Behind Mower

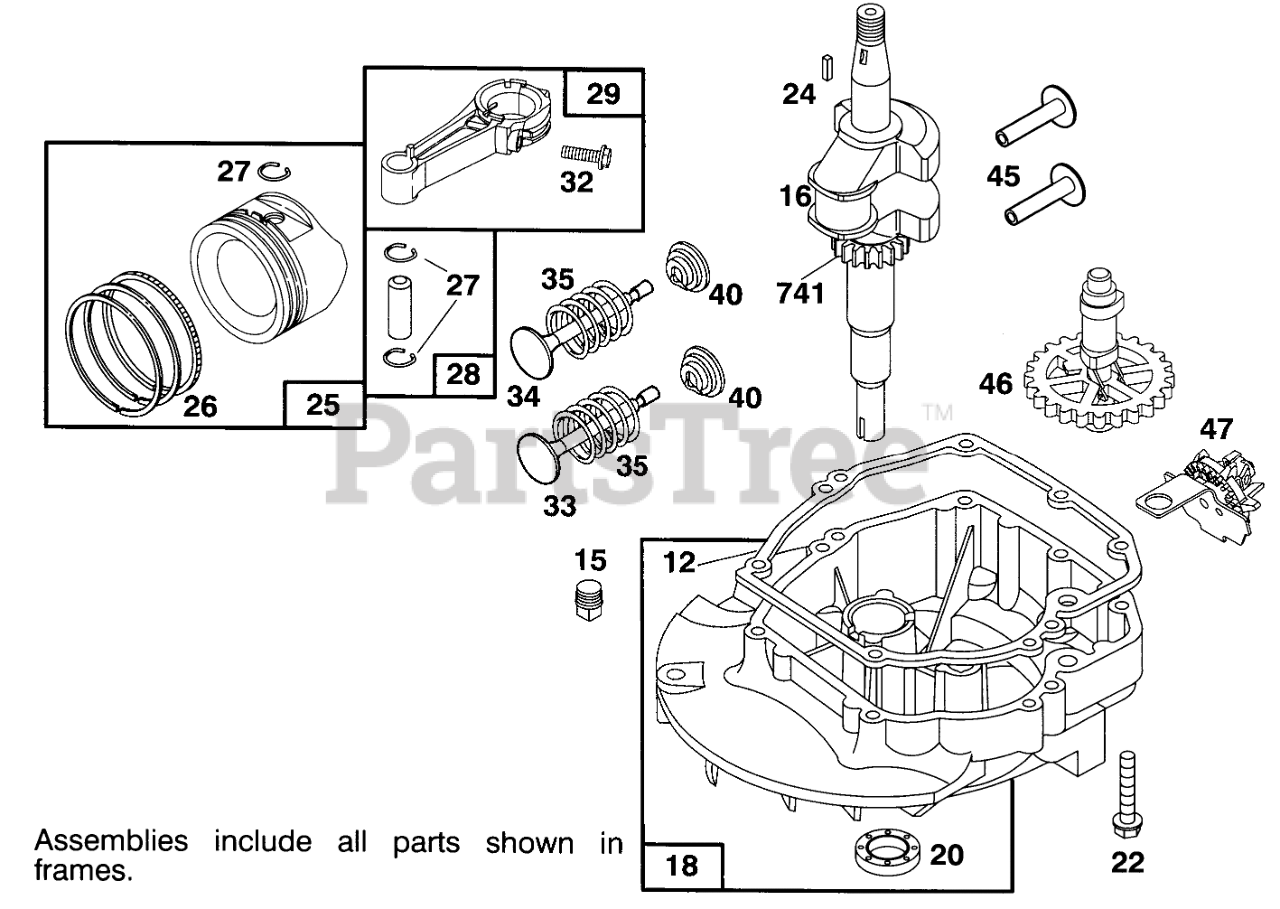

ENGINE BRIGGS & STRATTON MODEL 122702-3171-01 Parts Diagram

  • Title

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-Part No. 493263.

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94613

Plug-Pipe
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 493731

Shaft Note: Order 94388 For Timing Gear Key
(Superseded to 694443)

$127.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-Part No. 493263.

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw-Hex. Head
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 493262

Piston Assy. (Std.)

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493385

Piston Ass-y-.010" O.S.

$62.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493386

Piston Ass-y-.020" O.S.

$

$

Not available

Briggs & Stratton 493387

Piston Ass-y-.030" O.S.

$62.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493261

Ring Set (Std.)

$41.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493388

Ring-.010" O. S.

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493389

Ring Set-.020" O.S.

$

$

Not available

Briggs & Stratton 493390

Ring Set-.030" O.S.

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490566

Rod Ass-y-Con.

$39.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94405

Screw-Con. Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

Spring-Value
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 262204

Tappet-Valve
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 492828

Gear-Cam

$51.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 493737

Oil Slinger
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0
