16401 (SD-21 S) - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 127702-1745-E1 (SERIAL NO. 8901374 & UP) Parts Diagram

Walk-Behind Mower

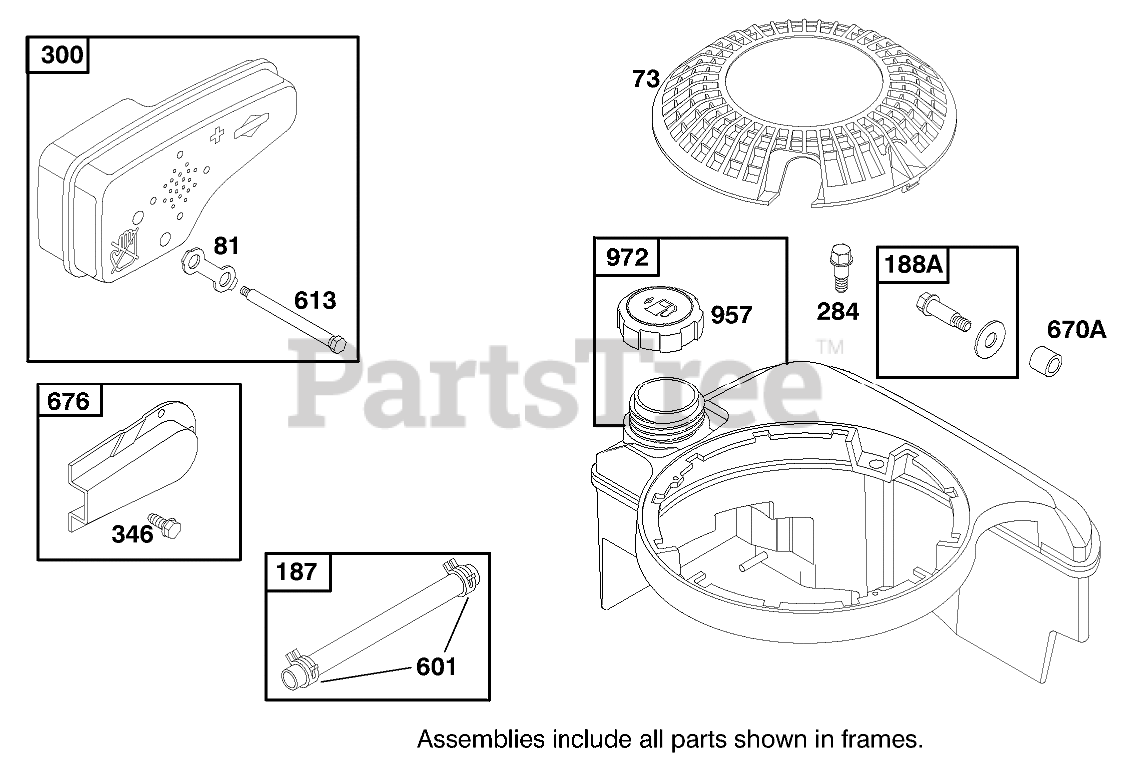

ENGINE BRIGGS & STRATTON MODEL 127702-1745-E1 (SERIAL NO. 8901374 & UP) Parts Diagram

  • Title
73

Briggs & Stratton 281136

Guard-Finger
(Superseded to 691919)

$28.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

$5.49

$

In Stock, Qty 6

0

187

Briggs & Stratton 298049

Line-Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 398540

Screw-Shoulder
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

$3.99

$

In Stock, Qty 8

0

300

Briggs & Stratton 496106

Muffler
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 94231

Screw-Shoulder
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

670A

Briggs & Stratton 280512

Spacer-FueITank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

676

Briggs & Stratton 493871

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

Cap-Fuel
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Toro 495227

Tank-Fuel

$

$

Currently unavailable
