16401 (SD-21 S) - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 127702-1745-E1 (SERIAL NO. 8901374 & UP) Parts Diagram

Walk-Behind Mower

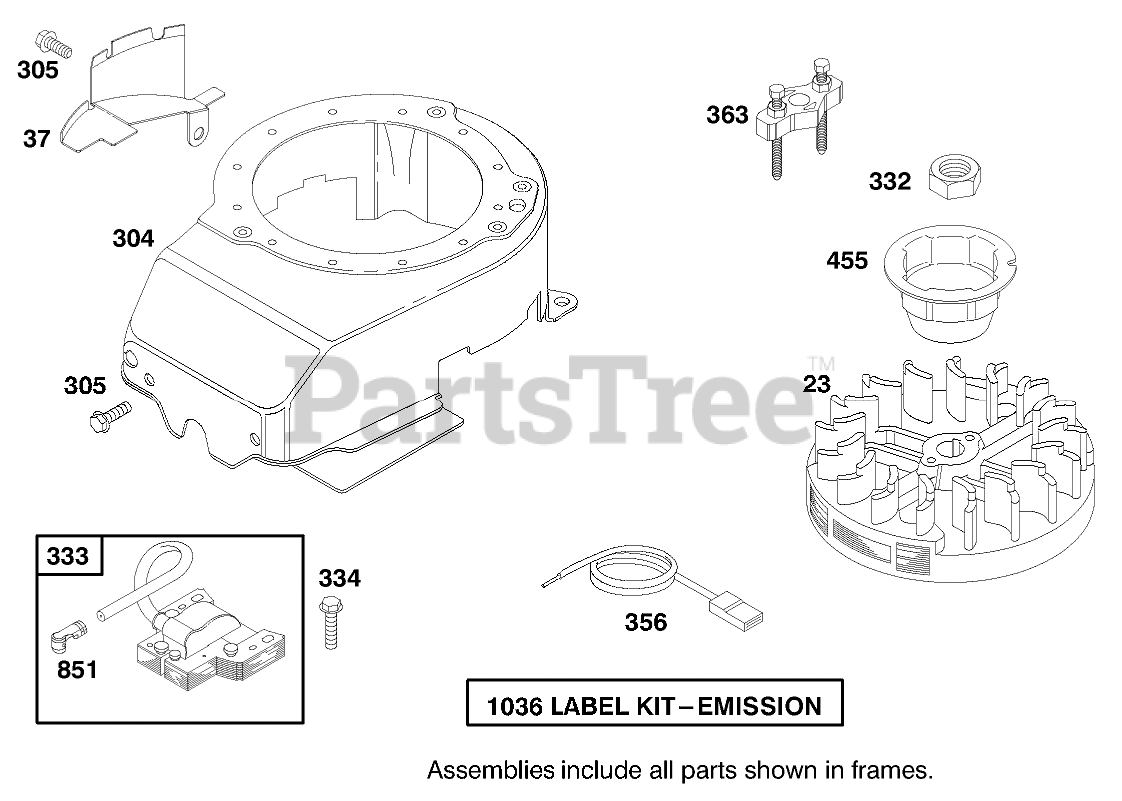

ENGINE BRIGGS & STRATTON MODEL 127702-1745-E1 (SERIAL NO. 8901374 & UP) Parts Diagram

  • Title
23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 224511

Flywheel Guard
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94744

Screw-Hex
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

Wire-Stop
(Superseded to 692390)

$

$

Not available

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 225121

Cup-Starter
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 499341

Emissions Label

$3.49

$

In Stock, only 1 left!

0
