16401 (SD-21 S) - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 127702-0645-01 (SERIAL NO. 8900001-8901373) Parts Diagram

Walk-Behind Mower

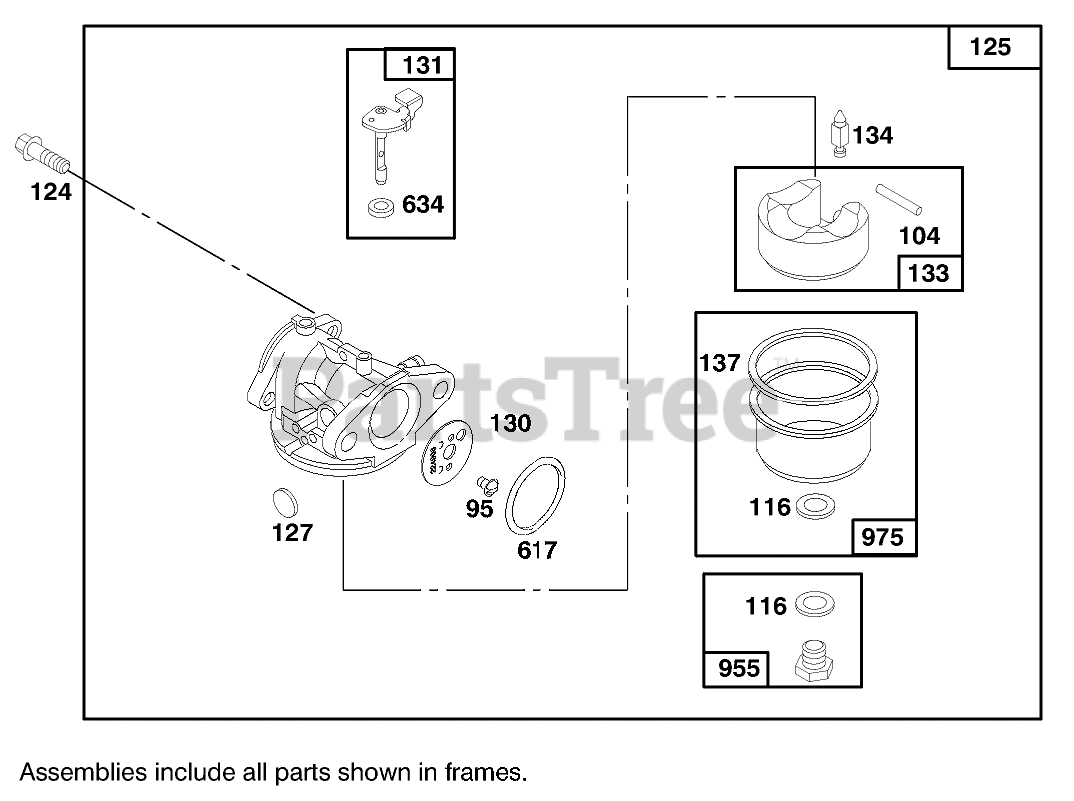

ENGINE BRIGGS & STRATTON MODEL 127702-0645-01 (SERIAL NO. 8900001-8901373) Parts Diagram

  • Title

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 493762.

$3.99

$

In Stock, Qty 10

0

116

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

124

Briggs & Stratton 94525

Screw-Hex
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 497314

Carburetor
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

130

Briggs & Stratton 224908

Throttle Valve
(Superseded to 691203)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

Shaft and Lever

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 493762.

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part No. 493762.

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

955

Briggs & Stratton 497315

Screw-Bowl Mtg. (Std.)

$13.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available
