16400 - Toro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

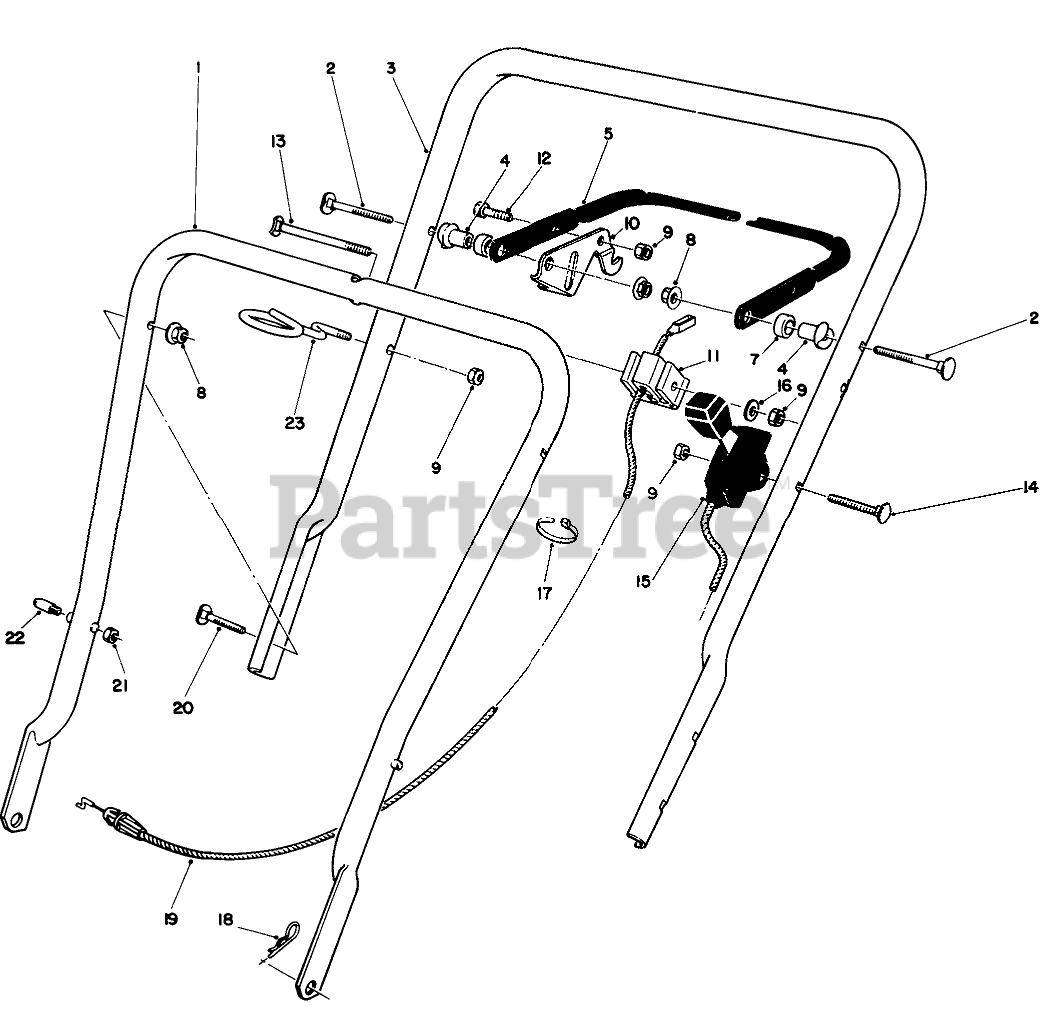

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 49-1691

Lower Handle Assembly
(Superseded to 49-1691-05)

$

$

Not available

2

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 11

0

3

Toro 49-4238

UPPER HANDLE

$113.99

$

Usually ships in 3-6 days

0

4

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

5

Toro 71-3080

Bar-Control
(Superseded to 71-3080-05)

$38.99

$

Usually ships in 3-6 days

0

7

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

10

Toro 77-5271

CONTROL LEVER

$33.99

$

Usually ships in 3-6 days

0

11

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

12

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

13

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

14

Toro 92-2266

SCREW-HANDLE

$5.99

$

Usually ships in 3-6 days

0

15

Toro 92-8908

THROTTLE CONTROL

$

$

Not available

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

19

Toro 92-8907

BRAKE CONTROL CABLE

$

$

Not available

20

Toro 92-4095

SCREW-HANDLE

$6.99

$

In Stock, Qty 5

0

21

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Part

$3.99

$

In Stock, Qty 7

0

22

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$32.99

$

Usually ships in 3-6 days

0

23

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

Toro 16-6779

Loose Parts

Note: Not illustrated

$

$

Not available
