16400 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

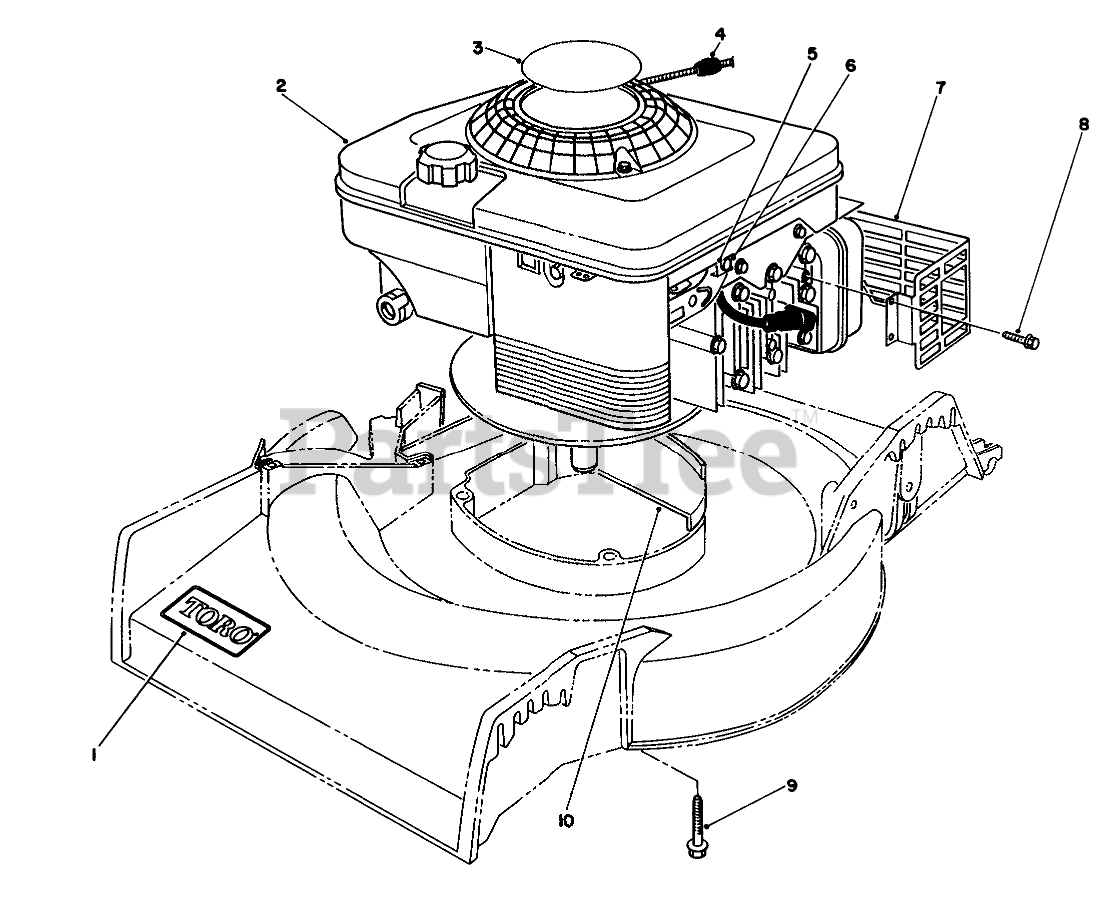

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0

2

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

3

Toro 80-2860

DECAL - ENGINE

$

$

Not available

4

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

5

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

6

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

7

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

8

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

9

Toro 32144-105

THD FORM SCREW

$

$

Not available

10

Toro 27-7470

HOUSING CAP

$

$

Not available
