16390 - Toro Whirlwind Pow'R Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

Whirlwind Pow'R Walk-Behind Mower

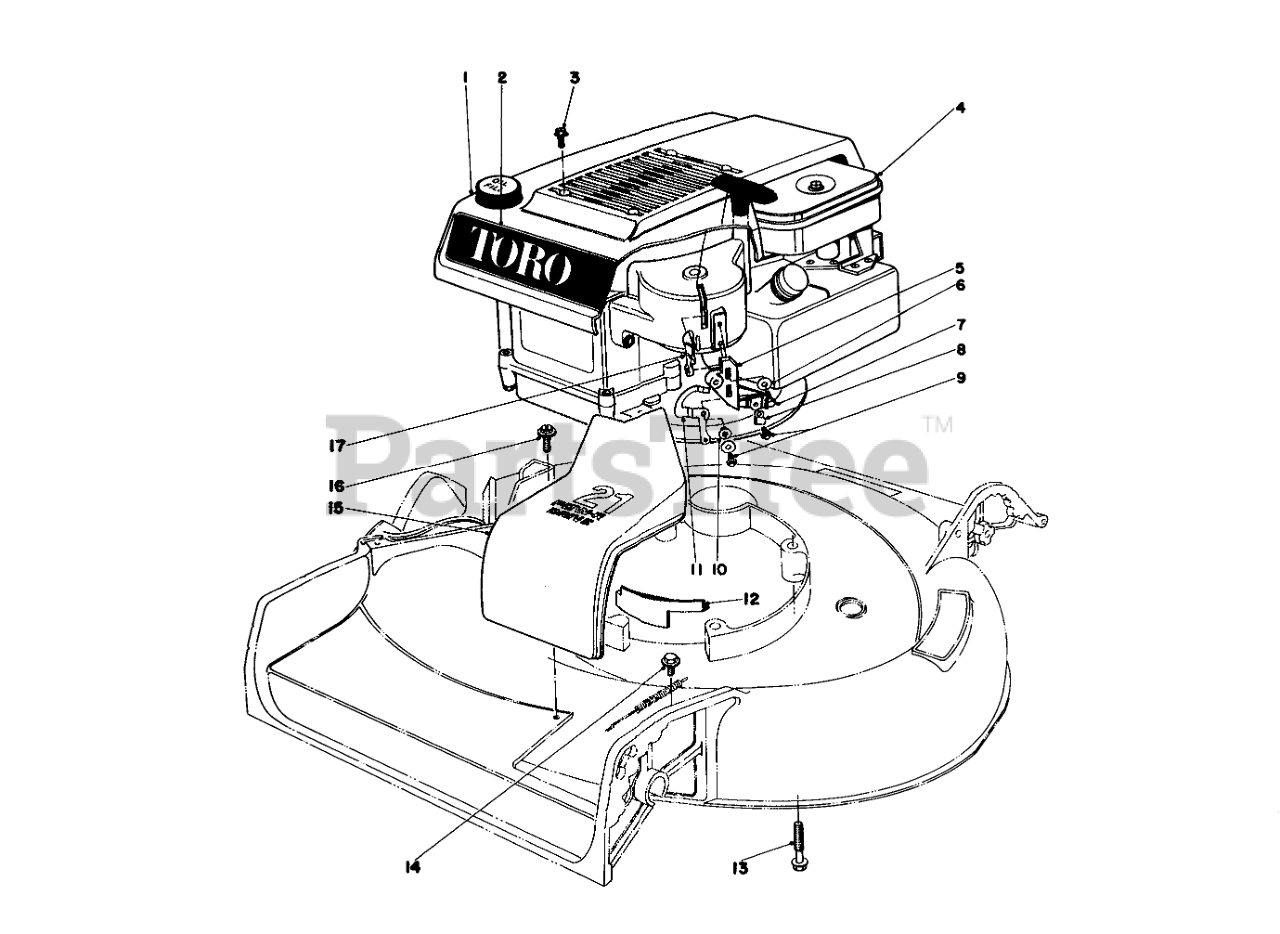

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 28-4721

Shroud
(Superseded to 37-9830)

$182.99

$

Usually ships in 3-6 days

0

2

Toro 28-4740

Decal-Toro

$

$

Not available

3

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

4

Toro 221-635

Engine

$

$

Currently unavailable

5

Toro 27-9280

CABLE & PIVOT BLOCK

$

$

Not available

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3214419

Screw

$

$

Currently unavailable

8

Toro 2412-63

CLAMP

$

$

Not available

9

Toro 3210476

Screw

$

$

Currently unavailable

10

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

11

Toro 25-8150

CAM INTERLOCK

$

$

Not available

12

Toro 27-7470

HOUSING CAP

$

$

Not available

13

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

15

Toro 28-4730

BELT DRIVE COVER

$65.99

$

Usually ships in 3-6 days

0

16

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

17

Toro 25-0350

INTERLOCK LEVER

$

$

Not available
