16380 - Toro Whirlwind II Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY Parts Diagram

Whirlwind II Walk-Behind Mower

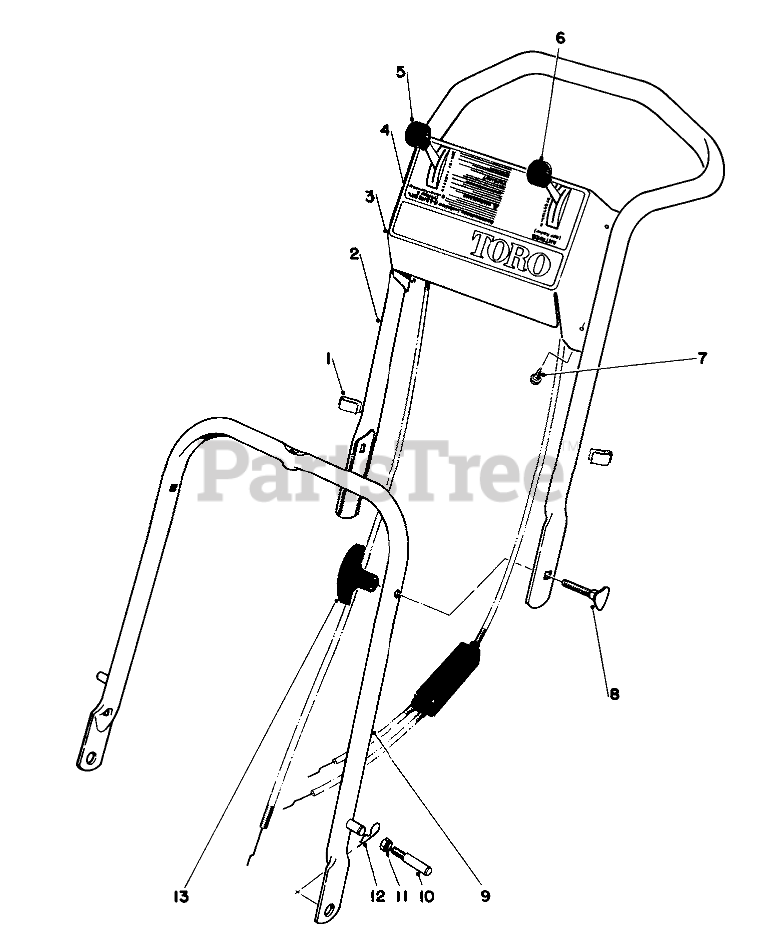

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 218-465

BOWDEN CLIP

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$279.99

$

Usually ships in 3-6 days

0

3

Toro 25-0410

Control Plate

$

$

Not available

4

Toro 39-2770

Decal-Control Plate (German)

$

$

Not available

5

Toro 33-2546

Control Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

6

Toro 33-2560

Traction Control
(Superseded to 46-6050)

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 6-6330

HANDLE SCREW

$

$

Not available

9

Toro 38-2620

Lower Handle
(Superseded to 42-1480)

$

$

Not available

10

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts.

$

$

Not available

11

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts.

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 23341

Handle Knob

$

$

Currently unavailable
