16370 - Toro Whirlwind II Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY MODEL 16390 Parts Diagram

Whirlwind II Walk-Behind Mower

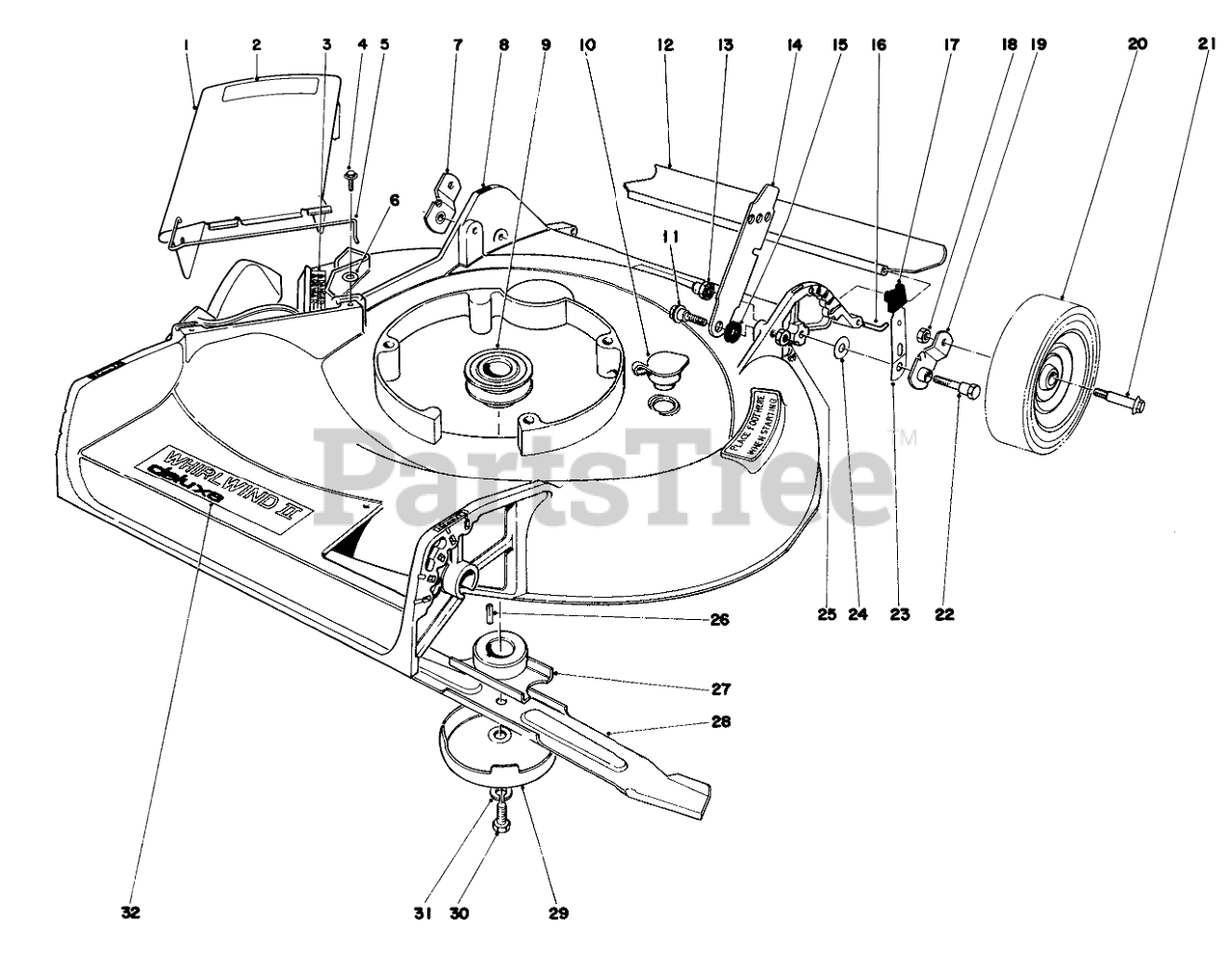

HOUSING ASSEMBLY MODEL 16390 Parts Diagram

  • Title
1

Toro 27-7813

Deflector Cover Assembly (Incl. Ref. #2 & 5)
(Superseded to 13-5909)

$129.99

$

Usually ships in 3-6 days

0

2

Toro 39-2920

Decal-Caution (French & Dutch)

$

$

Not available

3

Toro 39-2720

Decal-Danger (French & Dutch)

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

8

Toro 20-2602

Housing

$

$

Not available

9

Toro 21-5580

DRIVER PULLEY

$

$

Not available

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

12

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

13

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

14

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

15

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

16

Toro 33-3201

SHIELD ROD

$

$

Not available

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

18

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

19

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

20

Toro 17-4120

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

21

$

$

Not available

22

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

23

Toro 25-8000

SPRING ARM ASM

$

$

Not available

24

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

25

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

26

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

27

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

28

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

29

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$16.99

$

In Stock, only 2 left!

0

30

Toro 3-5246

SPECIAL SCREW

$

$

Not available

31

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

32

Toro 33-2310

Decal Deck

$

$

Not available

Toro 8-5299

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
