16360 - Toro Whirlwind Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY MODEL 16360 AND 16370 Parts Diagram

Whirlwind Walk-Behind Mower

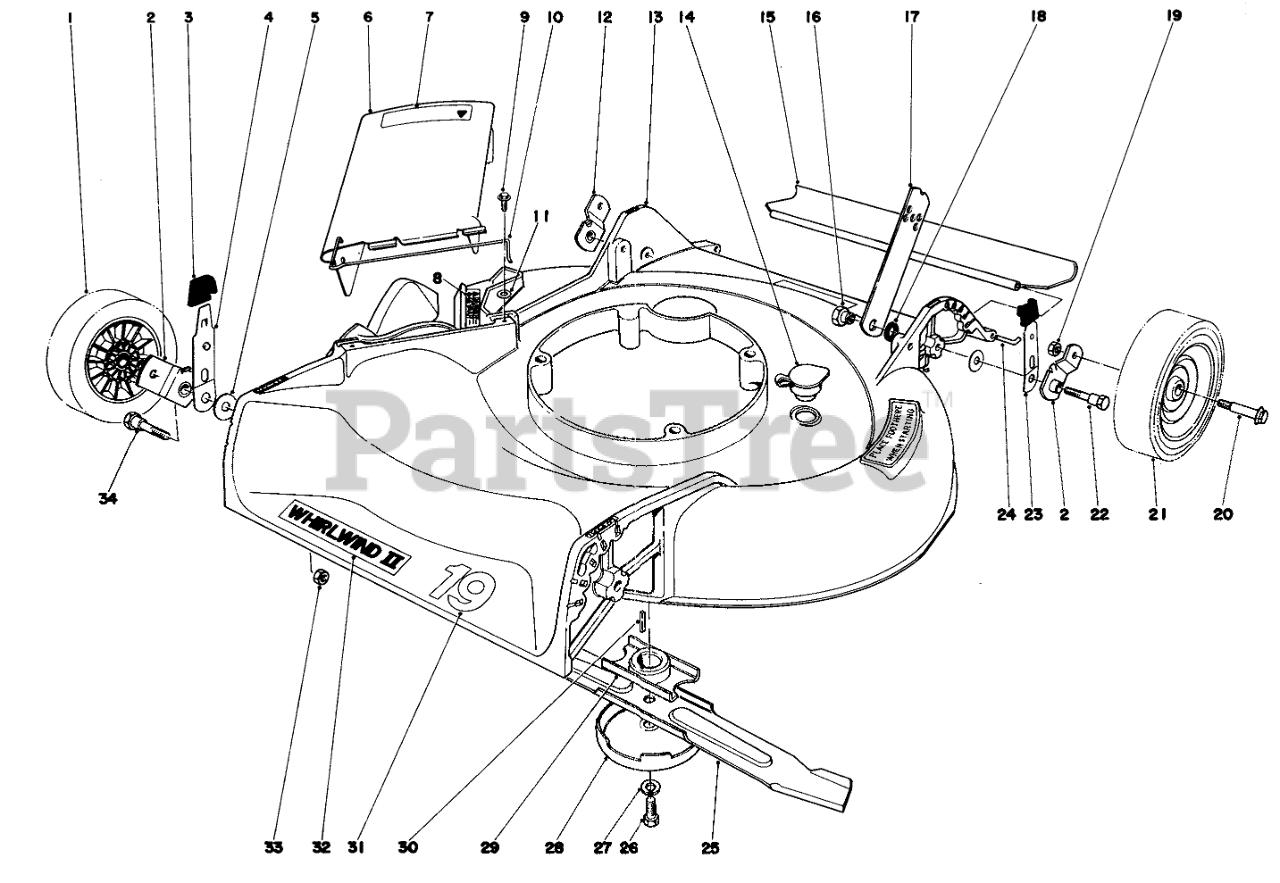

HOUSING ASSEMBLY MODEL 16360 AND 16370 Parts Diagram

  • Title

1

Toro 174140

Wheel & Tire Assembly

$

$

Currently unavailable

Toro 17-4120

Wheel Assembly
(Superseded to 99-5256)

Note: Not illustrated

$

$

Not available

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 25-8000

SPRING ARM ASM

$

$

Not available

5

Toro 54460

Washer

$

$

Currently unavailable

6

Toro 27-7813

Deflector-Cover Assembly (Incl. Ref. #7 & 10)
(Superseded to 13-5909)

$129.99

$

Usually ships in 3-6 days

0

7

Toro 39-2920

Decal-Caution (French & Dutch)

$

$

Not available

8

Toro 39-2720

Decal-Danger (French & Dutch)

$

$

Not available

9

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

10

Toro 20-2640

SPRING HINGE

$

$

Not available

11

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

13

Toro 20-2622

Housing (Model 16009)

$

$

Currently unavailable

Toro 20-2612

Housing (Model 16113)

Note: Not illustrated

$

$

Not available

14

Toro 6-4500

WASHOUT PLUG

$

$

Not available

15

Toro 22-4960

SHIELD - TRAILING

$91.99

$

Usually ships in 3-6 days

0

Toro 22-4950

REAR SAFETY SHIELD 21

Note: Not illustrated

$

$

Not available

16

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

17

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

Toro 27-7080

HANDLE LATCH

Note: Not illustrated

$

$

Not available

18

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 3-2652

Bolt

$

$

Not available

21

Toro 174120

Wheel & Tire Assembly

$

$

Currently unavailable

22

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

23

Toro 27-7240

SPRING ARM ASM

$

$

Not available

Toro 25-8000

SPRING ARM ASM

Note: Not illustrated

$

$

Not available

24

Toro 33-3200

SHIELD ROD

$

$

Not available

Toro 33-3201

SHIELD ROD

Note: Not illustrated

$

$

Not available

25

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

Blade
(Superseded to 20-2720-03)

Note: Not illustrated

$41.99

$

In Stock, only 2 left!

0

26

Toro 3-5246

SPECIAL SCREW

$

$

Not available

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

28

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

29

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

30

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

31

Toro 28-4760

Decal-19"

$

$

Not available

Toro 28-4750

Decal-21"

Note: Not illustrated

$

$

Not available

32

Toro 27-6270

Decal Whirlwind

$

$

Not available

33

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

34

Toro 25-3440

PIVOT SCREW

$

$

Not available

Toro 8-5189

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
