16340 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

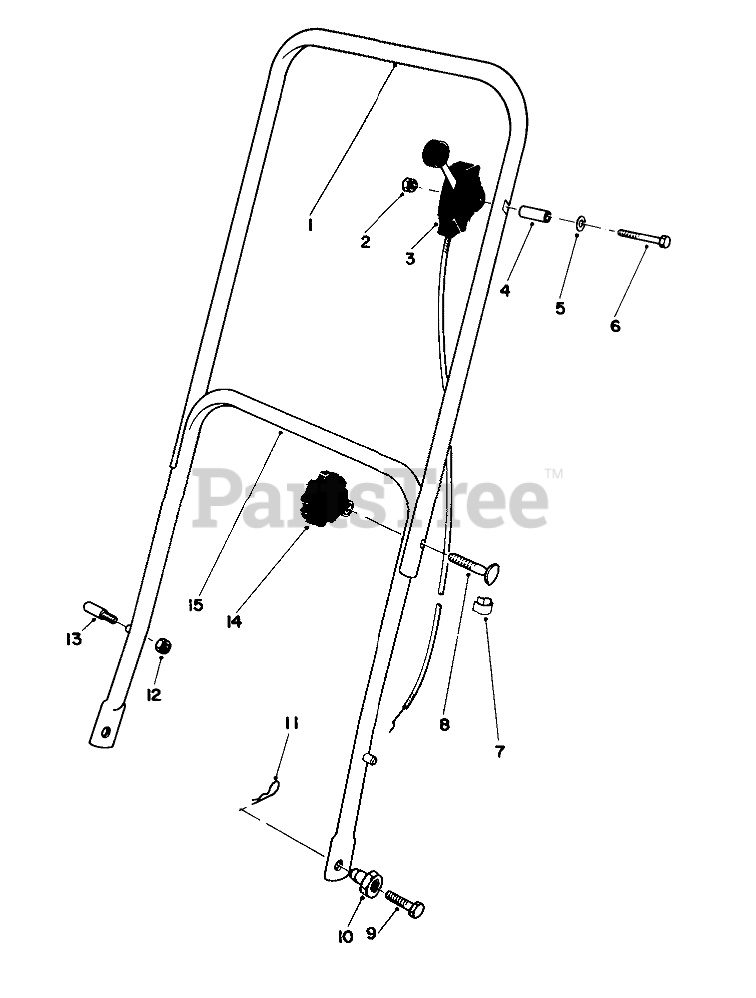

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 494231

Upper Handle

$

$

Currently unavailable

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 46-6000

SERVICE THROTTLE CONTRO

$50.99

$

Usually ships in 3-6 days

0

4

Toro 47-5330

Spacer

$

$

Not available

5

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

6

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 218-466

CLIP

$

$

Not available

8

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

9

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

10

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

11

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

12

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 20+

0

13

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$36.99

$

Usually ships in 3-6 days

0

14

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

15

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0
