16320 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) GEAR BOX ASSEMBLY MODEL 16320 Parts Diagram

Walk-Behind Mower

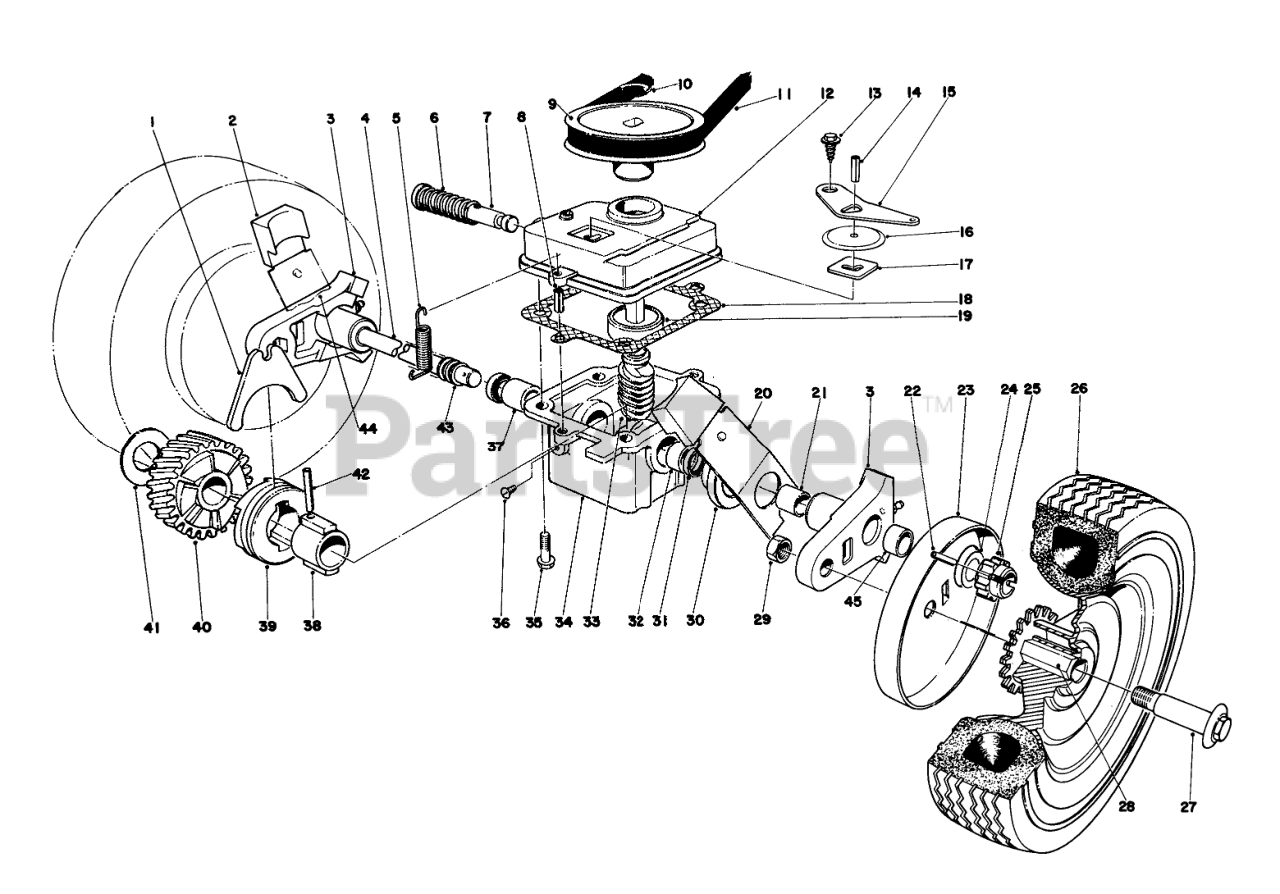

GEAR BOX ASSEMBLY MODEL 16320 Parts Diagram

  • Title
1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 38-2220

Pivot Arm (Incl.Ref. #21 & 45)

$128.99

$

Usually ships in 3-6 days

0

4

Toro 37-9440

DRIVE SHAFT (SERVCE)

$

$

Not available

5

Toro 174490

Spring-Tension

$

$

Currently unavailable

6

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

7

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$46.99

$

Usually ships in 3-6 days

0

8

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

9

Toro 20-2780

PULLEY

$

$

Not available

10

Toro 3290-346

PUSH-ON 93-3236

$9.49

$

Usually ships in 3-6 days

0

11

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

12

Toro 33-2080

Cover Gear Case

Note: Used on units with Serial No. 9000001 thru 9499999.

$

$

Not available

Toro 39-1100

Case-Upper

Note: Used on units with Serial No. 9500000 & up.

$

$

Not available

Toro 39-1100

Case-Upper

Note: Not Illustrated.

$

$

Not available

13

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-23

PIN-ROLL

$

$

Not available

15

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

16

Toro 3-2615

TRANS DUST COVER

$

$

Not available

17

Toro 3-0681

LATCH PLATE

$

$

Not available

18

Toro 36-1000

GASKET

$10.99

$

In Stock, only 1 left!

0

19

Toro 251-144

Bearing
(Superseded to 47-7460)

Note: Used on units with Serial No. 9000001 thru 9499999.

$72.99

$

In Stock, only 1 left!

0

Toro 251-284

Bearing
(Superseded to 47-7250)

Note: Used on units with Serial No. 9500000 & up.

$72.99

$

Usually ships in 3-6 days

0

Toro 251-284

Bearing
(Superseded to 47-7250)

Note: Not Illustrated.

$72.99

$

Usually ships in 3-6 days

0

20

Toro 25-7930

SPRING ARM ASM SP LH
(Superseded to 25-7930-03)

$78.99

$

Usually ships in 3-6 days

0

21

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

22

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

23

Toro 18-9820

WHEEL COVER

$

$

Not available

24

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

25

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

26

Toro 11-9470

Wheel & Tire Assembly (Incl.Ref. #28)
(Superseded to 11-1279)

$

$

Not available

27

$

$

Not available

28

Toro 11-9530

WHEEL BUSHING

$

$

Not available

29

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

30

Toro 3-2646

End Cap

$

$

Currently unavailable

31

Toro 253-140

Seal
(Superseded to 47-6730)

$12.99

$

In Stock, Qty 20+

0

32

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

33

Toro 6-9949

Worm Shaft & Gear (Incl.Ref. #40)

Note: Used on units with Serial No. 9000001 thru 9499999.

$

$

Not available

Toro 8-5679

Worm Shaft & Gear (Incl. Ref. #40)

Note: Not Illustrated.

$165.99

$

In Stock, Qty 5

0

Toro 8-5679

Worm Shaft & Gear (Incl. Ref. #40)

Note: Used on units with Serial No. 9500000 & up.

$165.99

$

In Stock, Qty 5

0

34

Toro 8-0479

Gear Case (Incl. Ref. #31, 32&37)

$258.99

$

Usually ships in 3-6 days

0

35

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

36

Toro 28-1550

NYLON SCREW

$

$

Not available

37

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, only 4 left!

0

38

Toro 3-0721

SLEEVE

$

$

Not available

39

Toro 19-5660

CLUTCH JAW

$46.99

$

Usually ships in 3-6 days

0

40

Helical Gear

$

$

Not available

41

Toro 3-0724

THRUST WASHER

$

$

Not available

42

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

43

Toro 24-7920

COVER-SHAFT, DRIVE

$11.99

$

Usually ships in 3-6 days

0

44

Toro 25-7920

SPRING ARM ASM SP RH

$

$

Not available

45

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

Toro 33-2150

Gear Case Assembly Complete
(Superseded to 11-5599)

Note: Not Illustrated.

$

$

Not available
