16310 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

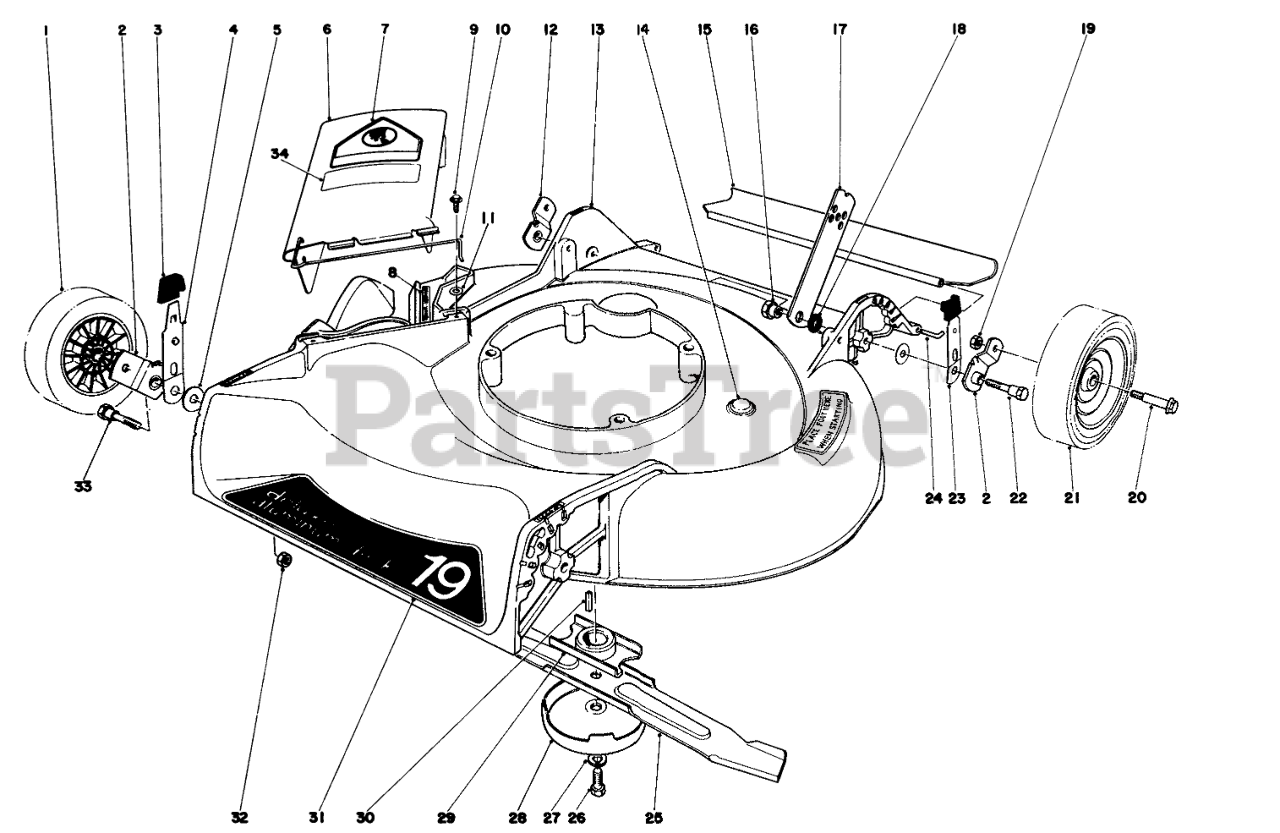

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 174140

Wheel & Tire Assembly

$

$

Currently unavailable

Toro 174120

Wheel & Tire Assembly

Note: Not illustrated

$

$

Currently unavailable

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

5

Toro 54460

Washer

$

$

Currently unavailable

6

Toro 27-7810

Deflector-Cover Assembly (Incl. Ref. #7,10 & 34)
(Superseded to 13-4049)

$

$

Not available

7

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

8

Toro 22-7350

Decal

$

$

Not available

9

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

10

Toro 20-2640

SPRING HINGE

$

$

Not available

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

13

Toro 6-7389

Housing

$

$

Currently unavailable

Toro 6-7399

Housing

Note: Not illustrated

$

$

Not available

14

Toro 2410-54

PLUG

$

$

Not available

15

Toro 224960

Rear Shield

$

$

Currently unavailable

Toro 224950

Rear Shield

Note: Not illustrated

$

$

Currently unavailable

16

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

17

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

Toro 27-7080

HANDLE LATCH

Note: Not illustrated

$22.99

$

Usually ships in 3-6 days

0

18

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 3-2652

Bolt

$

$

Not available

21

Toro 174120

Wheel & Tire Assembly

$

$

Currently unavailable

22

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

23

Toro 27-7240

SPRING ARM ASM

$

$

Not available

Toro 25-8000

SPRING ARM ASM

Note: Not illustrated

$69.99

$

Usually ships in 3-6 days

0

24

Toro 33-3200

SHIELD ROD

$

$

Not available

Toro 33-3201

SHIELD ROD

Note: Not illustrated

$

$

Not available

25

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

Blade
(Superseded to 20-2720-03)

Note: Not illustrated

$36.99

$

In Stock, only 2 left!

0

26

Toro 3-5246

SPECIAL SCREW

$

$

Not available

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

28

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

30

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

31

Toro 40-2230

Decal

$

$

Not available

Toro 40-2220

Decal-21" (Model 16310)

Note: Not illustrated

$

$

Not available

32

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

33

Toro 25-3440

PIVOT SCREW

$

$

Not available

34

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

Toro 8-9909

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
