16299 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

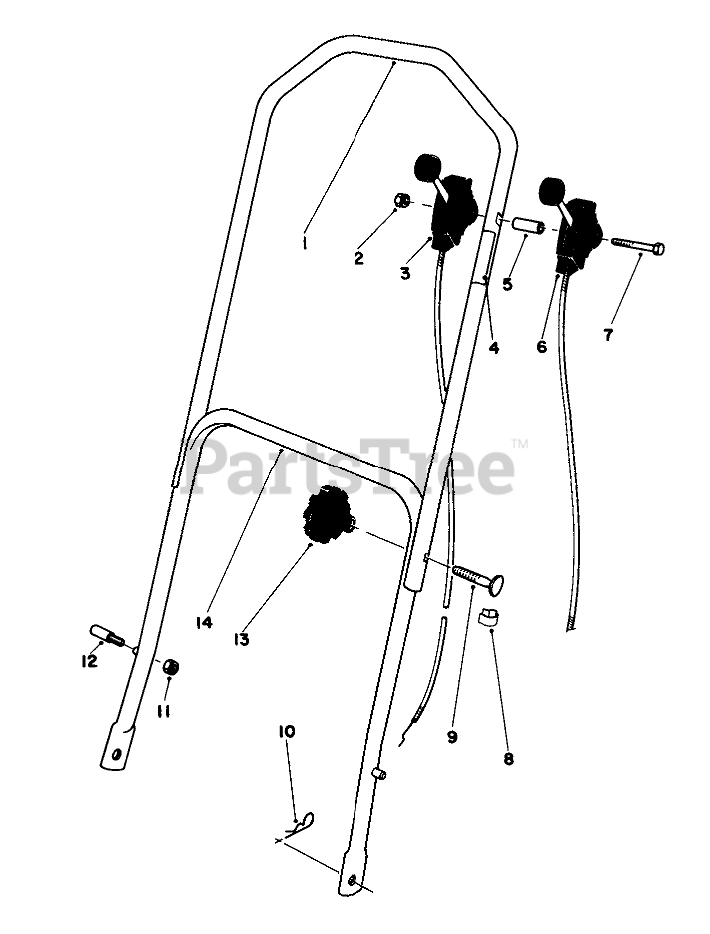

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-6549

Upper Handle (Incl. Ref. #4)

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 46-6000

SERVICE THROTTLE CONTRO

$50.99

$

Usually ships in 3-6 days

0

4

Toro 47-7480

Decal-Throttle & Traction

$

$

Not available

5

Toro 47-5330

Spacer

$

$

Not available

6

Toro 46-030

Control-Traction Traction Bend 2 Traction Sheath Lg. 24-1/2" (62.2 cm) Traction Wire Lg. 1" (2.5 cm) Lockout Bend 4 Lockout Sheath Lg. 23" (58.4 cm) Lockout Wire Lg. 1/4" (.6 cm)

$

$

Currently unavailable

7

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

8

Toro 218-465

BOWDEN CLIP

$

$

Not available

9

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

10

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

11

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts.

$3.99

$

In Stock, Qty 20+

0

12

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts.

$36.99

$

Usually ships in 3-6 days

0

13

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

14

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0
