16299 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

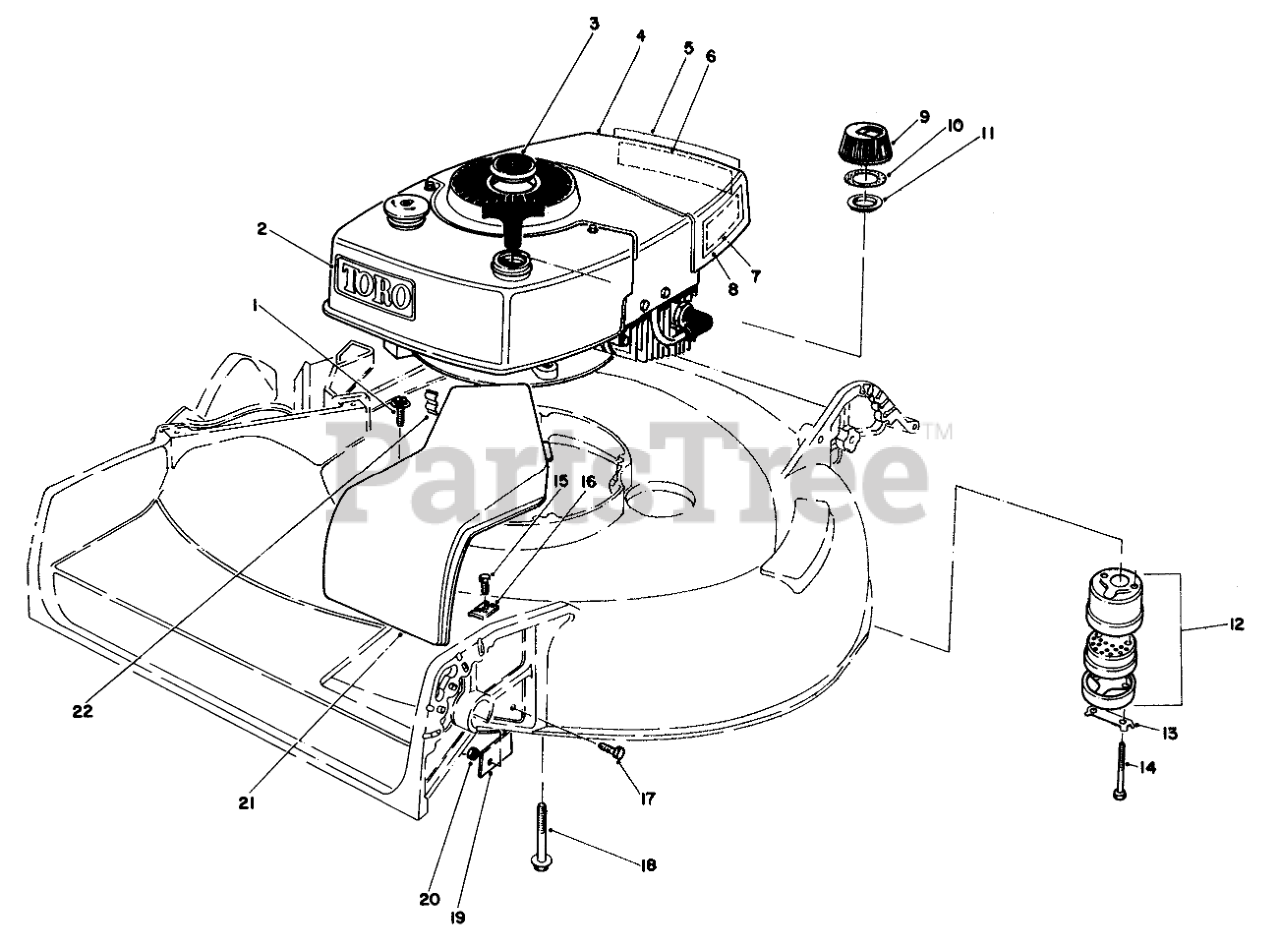

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

2

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 38-1481

Plug Button

$

$

Not available

4

Toro 221-742

Engine

$

$

Currently unavailable

5

Toro 47-7390

Decal-Danger

$

$

Not available

6

Toro 40-2950

Decal Maintenance

$

$

Not available

7

Toro 46-9000

Decal-Maintenance

$

$

Not available

8

Toro 40-2440

Decal-Maintenance

$

$

Not available

9

Toro 27-7872

Gas Cap Assembly (Incl. Ref. #10 & 11)
(Superseded to 42-0682)

$

$

Not available

10

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

11

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

12

Toro 5-4769

Muffler (Incl . Ref . #13 & 14)

$54.99

$

Usually ships in 3-6 days

0

13

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

14

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

16

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

19

Toro 47-7580

Shield Front

$

$

Not available

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 46-4781

Cow-Belt
(Superseded to 46-4780)

$30.99

$

Usually ships in 3-6 days

0

22

Toro 2210-247

Clip Conduit

$

$

Not available

Toro 39-5930

Spark Arrester Muffler-Optional (Incl. Ref. #13 & 14)

Note: Not illustrated

$

$

Not available
