16299 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

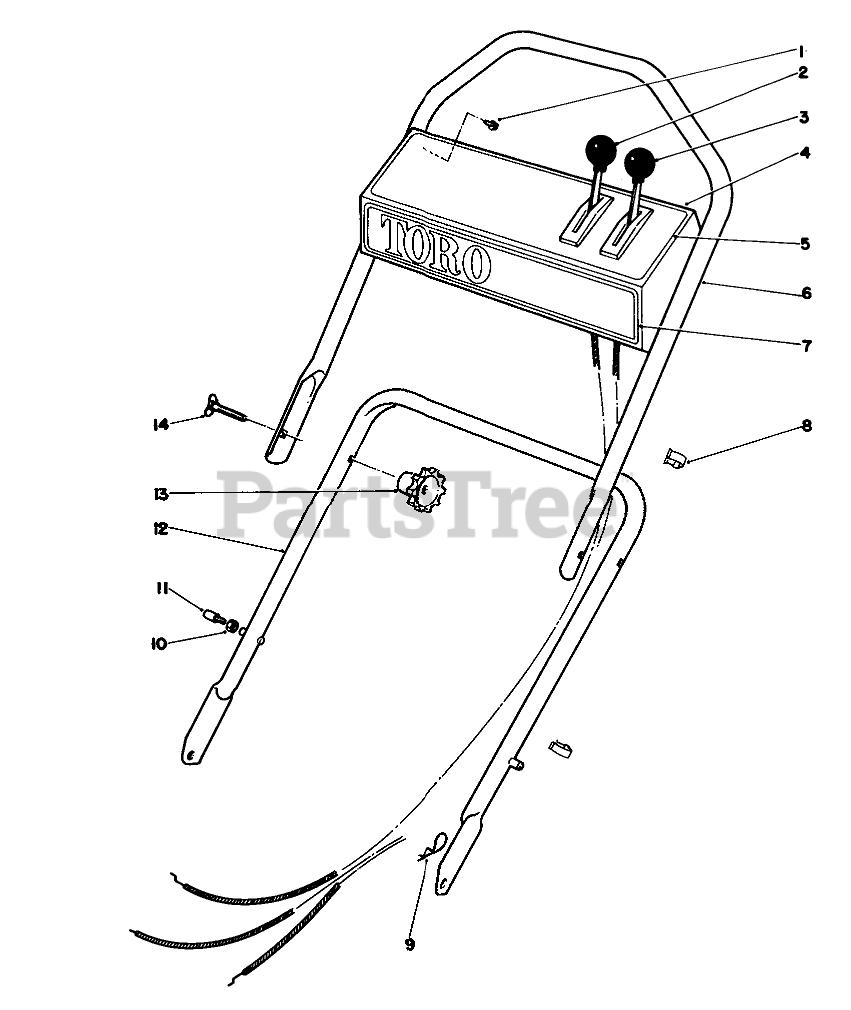

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 46-6050

SERVICE TRACT. CONTROL

$

$

Not available

3

Toro 46-6010

SERVICE THROTTLE CONTRO

$72.99

$

Usually ships in 3-6 days

0

4

Toro 12-6599

Panel-Control (Incl. Ref. #5)

$

$

Not available

5

Toro 62-4570

DECAL

$

$

Not available

6

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

7

Toro 62-6740

Decal-Toro

$

$

Not available

8

Toro 218-465

BOWDEN CLIP

$

$

Not available

9

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

10

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

11

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

12

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

13

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

14

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0
