16299 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

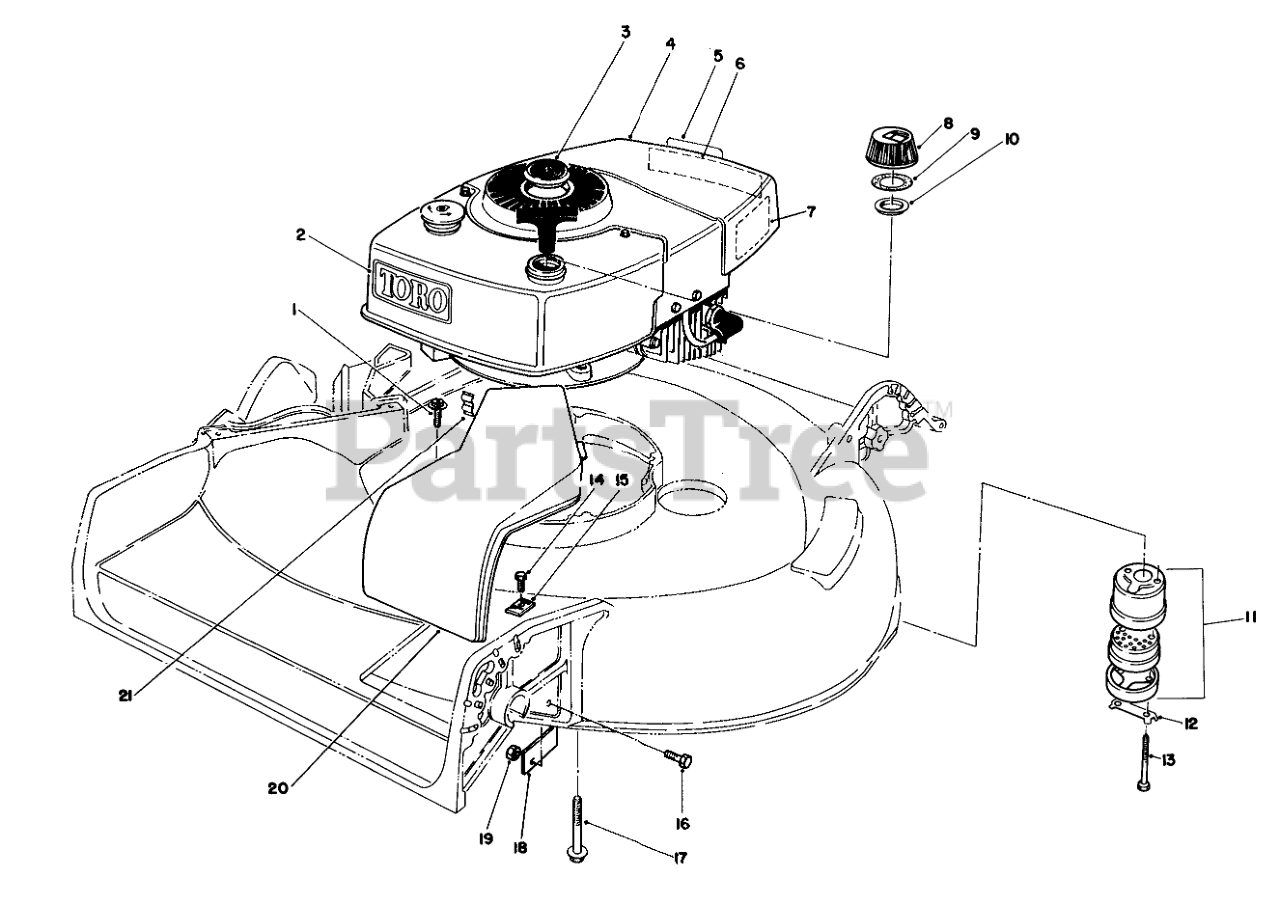

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

2

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 38-1481

Plug Button

$

$

Not available

4

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

5

Toro 62-5760

DECAL-PRIMER
(Superseded to 94-2572)

$

$

Not available

6

Toro 40-2950

Decal Maintenance

$

$

Not available

7

Toro 46-9000

Decal-Maintenance

$

$

Not available

8

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #9 & 10)

$

$

Not available

9

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

10

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

11

Toro 5-4769

Muffler (Incl. Ref. #12 & 13)

$62.99

$

Usually ships in 3-6 days

0

12

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

13

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

15

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

18

Toro 47-7580

Shield Front

$

$

Not available

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 46-4781

Cow-Belt
(Superseded to 46-4780)

$

$

Not available

21

Toro 2210-247

Clip Conduit

$

$

Not available

Toro 39-5930

Spark Arrester Muffler-Optional (Incl. Ref. #12 & 13)

$

$

Not available
