16299 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

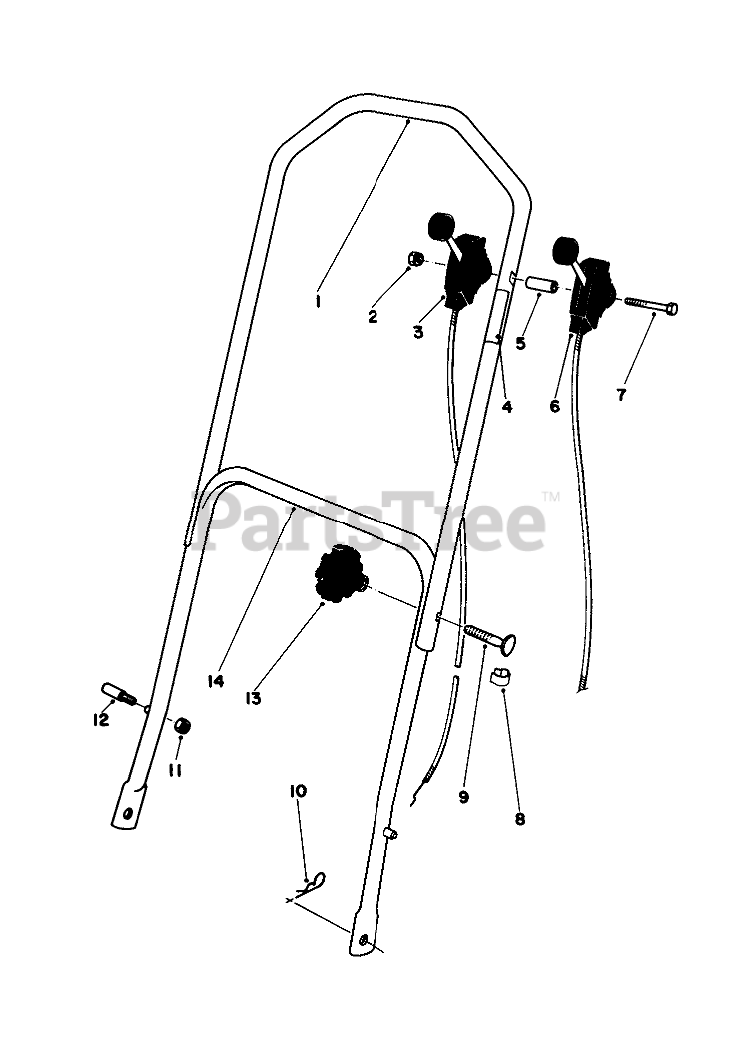

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-6549

UPPER HANDLE/DECAL

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

3

Toro 46-6000

SERVICE THROTTLE CONTRO

$50.99

$

Usually ships in 3-6 days

0

4

Toro 47-7480

Decal-Throttle & Traction

$

$

Not available

5

Toro 47-5330

Spacer

$

$

Not available

6

Toro 46-6030

SERVICE TRACT. CONTROL

$

$

Not available

7

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

8

Toro 218465

Clip

$

$

Currently unavailable

9

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

10

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

11

Toro 329647

Locknut

Note: Service Replacement Parts.

$

$

Currently unavailable

12

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts.

$36.99

$

Usually ships in 3-6 days

0

13

Toro 194050

Horn

$

$

Currently unavailable

14

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0
