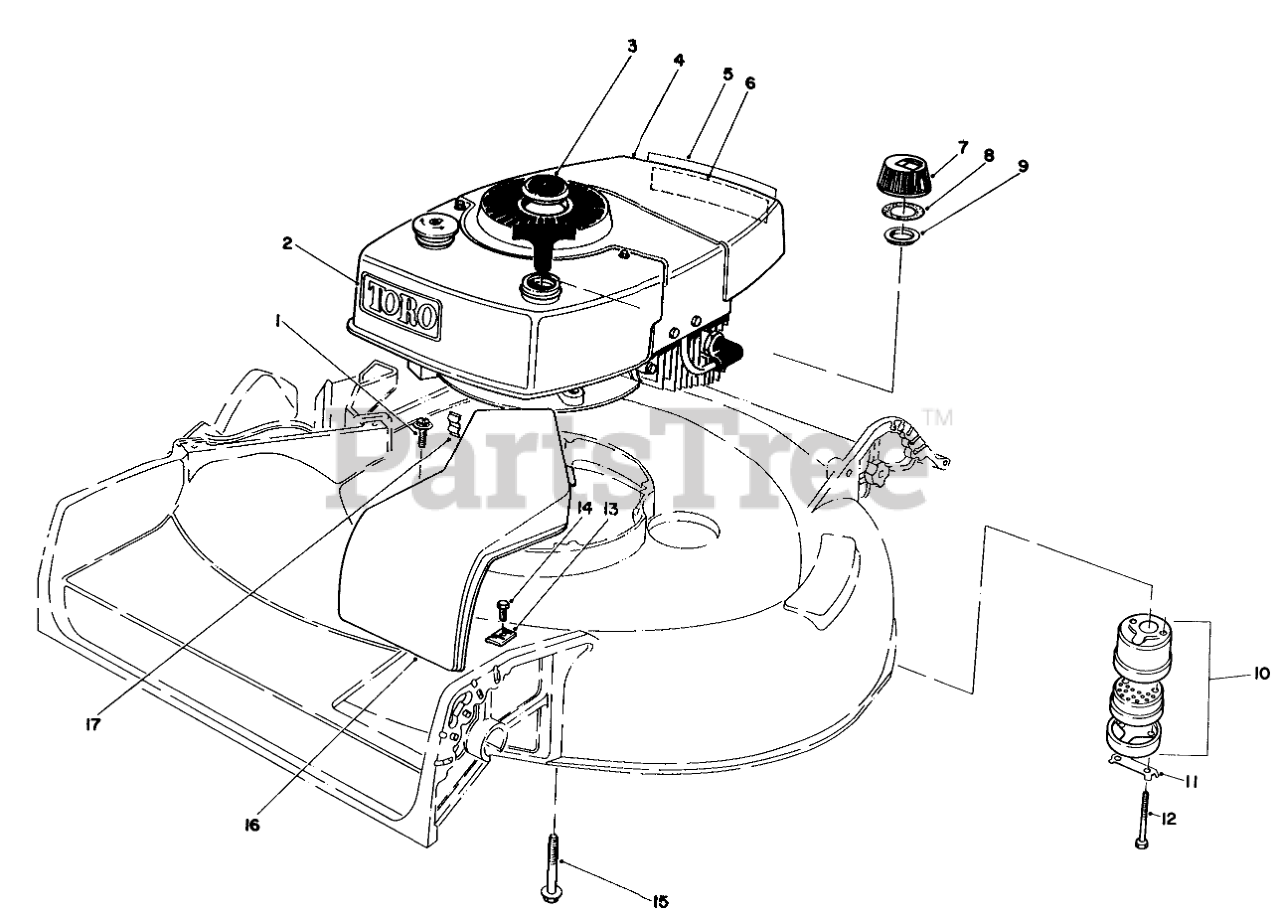

16297 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 712-5450

Screw-Thread Forming

$

$

Currently unavailable

2

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 38-1481

Plug Button

$

$

Not available

4

Toro 221-739

Engine

$

$

Currently unavailable

5

Toro 46-9300

Decal-Primer

$

$

Not available

6

Toro 40-2950

Decal Maintenance

$

$

Not available

7

Toro 27-7872

Fuel Cap Assembly (Incl. Ref. #8 & 9)
(Superseded to 42-0682)

$

$

Not available

8

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

9

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

10

Toro 5-4769

Muffler Assembly (Incl. Ref. #11 & 12)

$62.99

$

Usually ships in 3-6 days

0

11

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

12

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

13

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

15

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

16

Toro 46-4781

Cow-Belt
(Superseded to 46-4780)

$

$

Not available

17

Toro 2210-247

Clip Conduit

$

$

Not available

Toro 39-5930

Spark Arrestor Muffler (Optional) (Incl. #11 & 12)

Note: Not illustrated

$

$

Not available
