16297 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) GEAR CASE ASSEMBLY MODEL 16297 Parts Diagram

Walk-Behind Mower

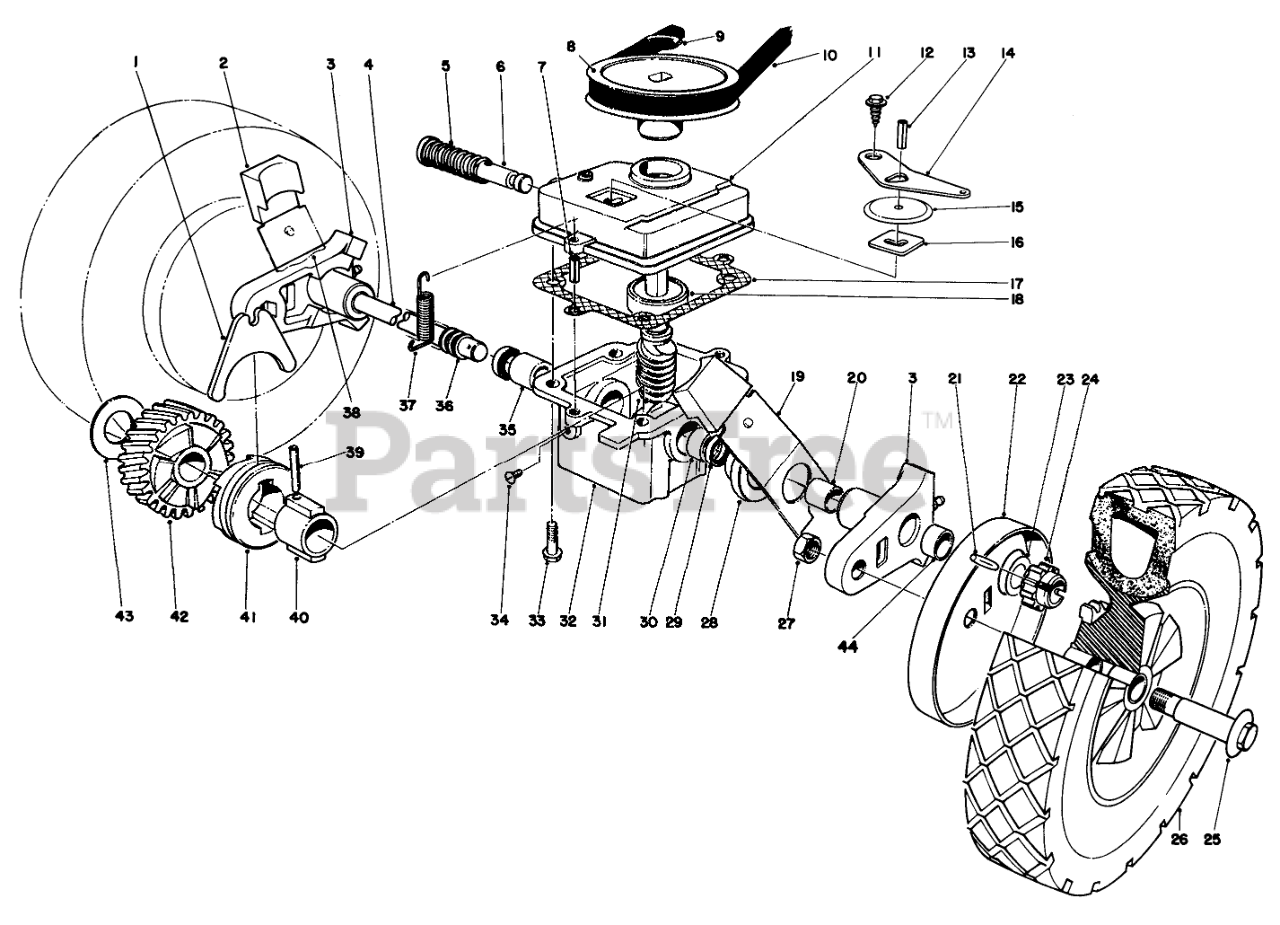

GEAR CASE ASSEMBLY MODEL 16297 Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 38-2220

Pivot Arm (Incl. Ref. #20 & 40)

$128.99

$

Usually ships in 3-6 days

0

4

Toro 37-9440

DRIVE SHAFT (SERVCE)

$

$

Not available

5

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

6

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$46.99

$

Usually ships in 3-6 days

0

7

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

8

Toro 20-2780

PULLEY

$

$

Not available

9

Toro 3290-346

PUSH-ON 93-3236

$9.49

$

Usually ships in 3-6 days

0

10

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

11

Toro 33-2080

Cover Gear Case

$

$

Not available

12

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

13

Toro 32121-23

PIN-ROLL

$

$

Not available

14

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

15

Toro 3-2615

TRANS DUST COVER

$

$

Not available

16

Toro 3-0681

LATCH PLATE

$

$

Not available

17

Toro 36-1000

GASKET

$10.99

$

In Stock, only 1 left!

0

18

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

19

Toro 25-7930

SPRING ARM ASM SP LH
(Superseded to 25-7930-03)

$78.99

$

Usually ships in 3-6 days

0

20

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

21

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

22

Toro 18-9820

WHEEL COVER

$

$

Not available

23

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

24

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

25

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

26

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

27

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

28

Toro 3-2646

End Cap

$

$

Currently unavailable

29

Toro 253-140

Seal
(Superseded to 47-6730)

$12.99

$

In Stock, Qty 20+

0

30

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

31

Toro 6-9949

Worm Shaft & Gear (Incl. Ref. #42)

$

$

Not available

32

Toro 8-0479

Gear Case (Incl. Ref. #29-30 & 35)

$258.99

$

Usually ships in 3-6 days

0

33

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

34

Toro 28-1550

NYLON SCREW

$

$

Not available

35

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, only 4 left!

0

36

Toro 24-7920

COVER-SHAFT, DRIVE

$11.99

$

Usually ships in 3-6 days

0

37

Toro 17-4490

TENSION SPRING

$21.99

$

In Stock, only 1 left!

0

38

Toro 25-7920

SPRING ARM ASM SP RH

$

$

Not available

39

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

40

Toro 3-0721

SLEEVE

$

$

Not available

41

Toro 19-5660

CLUTCH JAW

$46.99

$

Usually ships in 3-6 days

0

42

Helical Gear

$

$

Not available

43

Toro 3-0724

THRUST WASHER

$

$

Not available

44

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

Toro 33-2150

Gear Case Assembly Complete
(Superseded to 11-5599)

Note: Not illustrated

$

$

Not available
