16297 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY MODEL 16077 AND 16165 Parts Diagram

Walk-Behind Mower

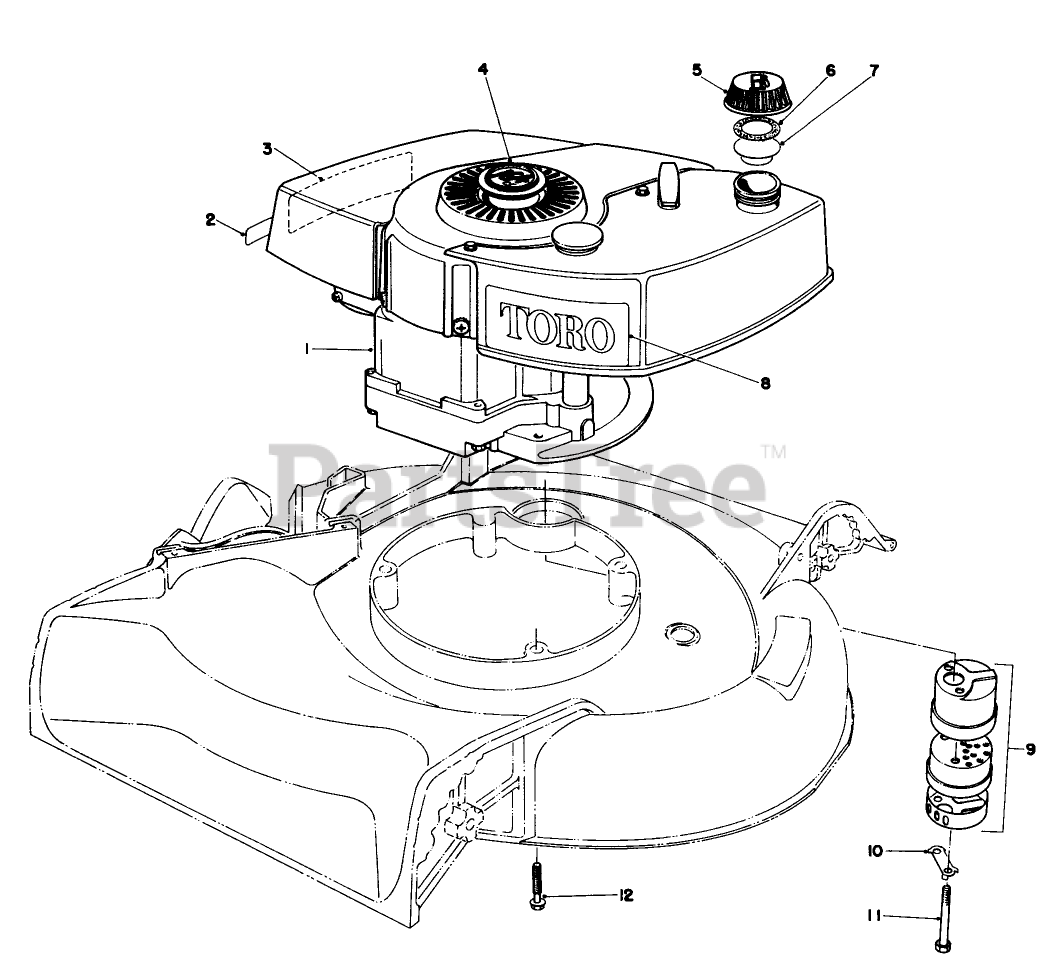

ENGINE ASSEMBLY MODEL 16077 AND 16165 Parts Diagram

  • Title
1

Toro 221-648

Engine

$

$

Currently unavailable

2

Toro 40-2960

Decal-Primer Bulb

$

$

Not available

3

Toro 40-2950

Decal Maintenance

$

$

Not available

4

Toro 38-1481

Plug Button

$

$

Not available

5

Toro 27-7872

Gas Cap Assembly (Incl. Ref. #6&7)
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210

144 Gasket

$

$

Currently unavailable

7

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

8

Toro 40-5460

Decal Toro

$

$

Not available

9

Toro 5-4769

Muffler (Incl. Ref. #10 & 11)

$62.99

$

Usually ships in 3-6 days

0

10

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

11

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

12

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0
