16297 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

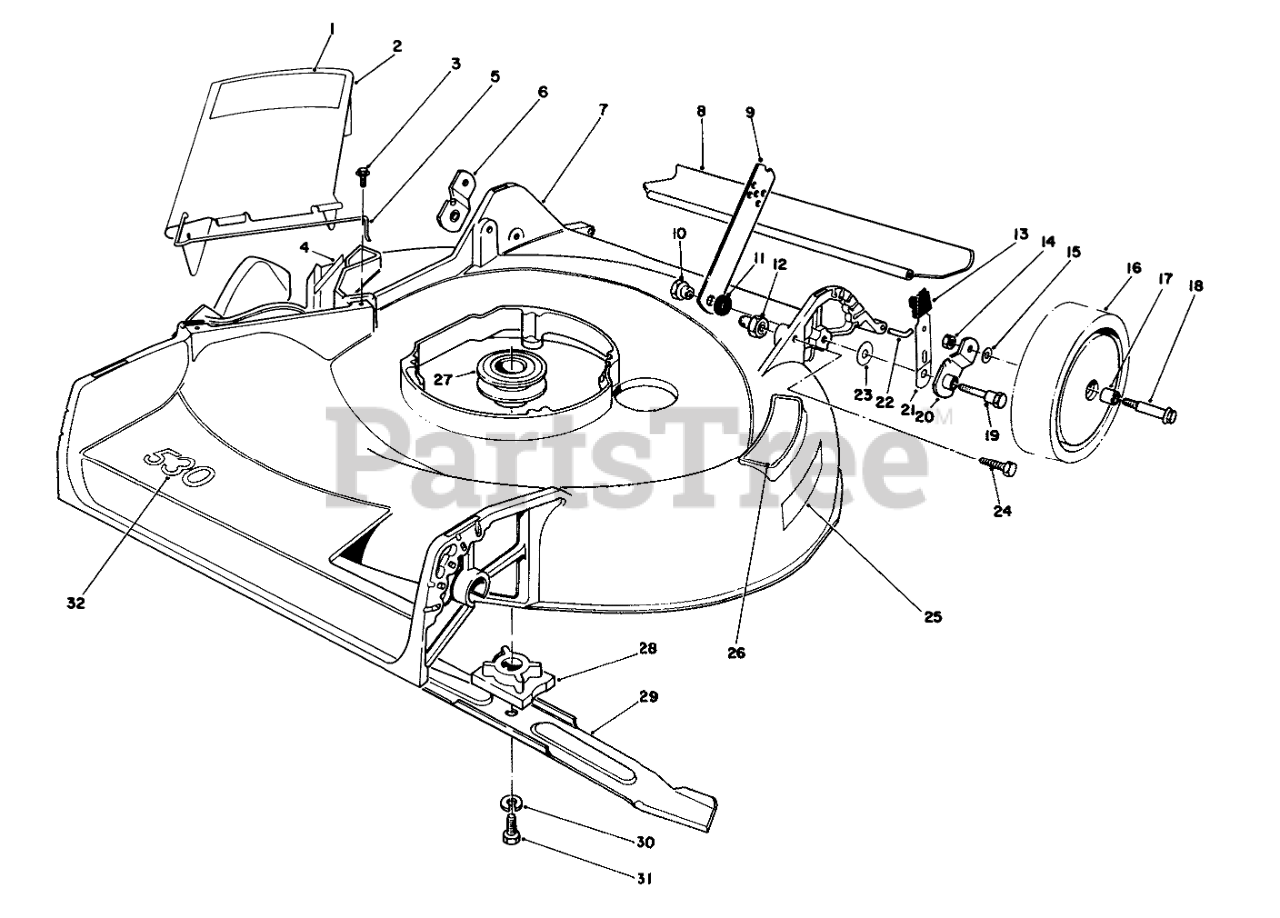

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 46-9280

Decal-Danger(French)
(Superseded to 47-7410)

$

$

Not available

2

Toro 27-7815

Deflector Assembly Ref. #1 & 5)
(Superseded to 13-5909)

$129.99

$

Usually ships in 3-6 days

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

4

Toro 40-2760

Decal-Danger

$

$

Not available

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 11-4639

Housing
(Superseded to 99-5250)

$

$

Not available

8

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

9

Toro 27-7080

HANDLE LATCH

$

$

Not available

10

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

12

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

14

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 11-9509

Wheel & Tire (Incl. Ref. #17)
(Superseded to 51-2751)

$34.99

$

In Stock, only 4 left!

0

17

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

18

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

19

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

20

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

21

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 33-3201

SHIELD ROD

$

$

Not available

23

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 40-2730

Decal-Step

$

$

Not available

26

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

27

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

28

Toro 49-7890

BLADE RETAINER

$

$

Not available

29

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

31

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

32

Toro 46-8310

Decal-530

$

$

Not available

Toro 11-6609

Loose Parts

Note: Not illustrated

$

$

Not available
