16297 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

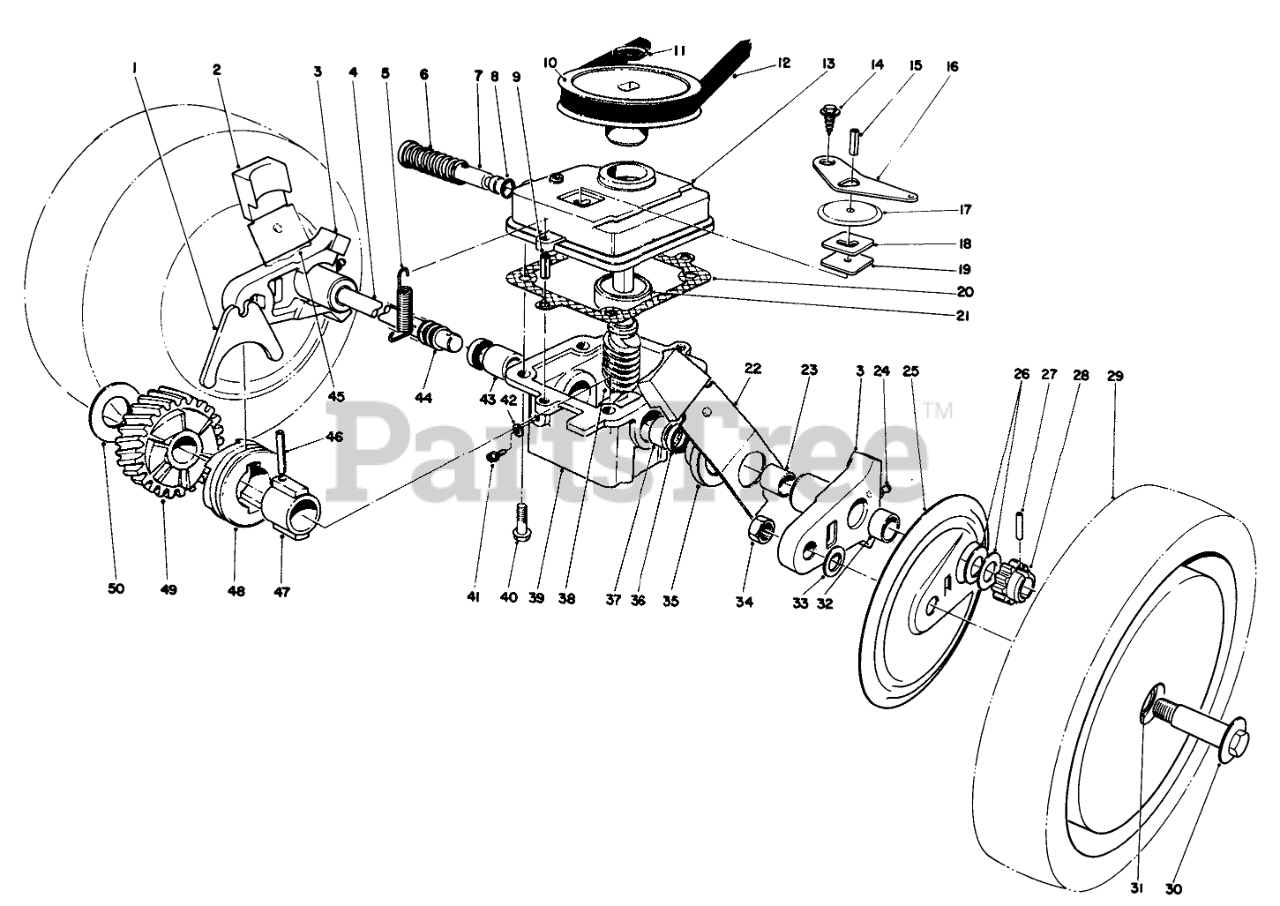

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$17.99

$

Usually ships in 3-6 days

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 38-2220

Pivot Arm (Incl. Ref. #23-24 & 32)

$110.99

$

Usually ships in 3-6 days

0

4

Toro 37-9440

DRIVE SHAFT (SERVCE)

$155.99

$

Usually ships in 3-6 days

0

5

Toro 17-4490

TENSION SPRING

$18.99

$

In Stock, only 1 left!

0

6

Toro 3-0731

SPRING

$9.99

$

Usually ships in 3-6 days

0

7

Toro 46-8240

SHIFTER ROD

$40.99

$

Usually ships in 3-6 days

0

8

Toro 237-137

O-RING

$12.99

$

Usually ships in 3-6 days

0

9

Toro 32121-1

3/16 X 1/2 ROLL PIN

$3.99

$

In Stock, Qty 5

0

10

Toro 18-9760

PULLEY

$66.99

$

Usually ships in 3-6 days

0

11

Toro 3290-346

PUSH-ON 93-3236

$7.99

$

Usually ships in 3-6 days

0

12

Toro 5-4505

V BELT

$

$

Not available

13

Toro 39-1101

GEAR CASE COVER

$

$

Not available

14

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

15

Toro 32121-114

SPIROL PIN H D

$1.99

$

In Stock, only 2 left!

0

16

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

17

Toro 52-7380

DUST COVER

$6.99

$

Usually ships in 3-6 days

0

18

Toro 3-0681

LATCH PLATE

$

$

Not available

19

Toro 52-7370

DUST FILTER

$3.99

$

In Stock, only 2 left!

0

20

Toro 36-1000

GASKET

$8.99

$

Usually ships in 3-6 days

0

21

Toro 47-7250

BEARING

$62.99

$

Usually ships in 3-6 days

0

22

Toro 25-7930

SPRING ARM ASM SP LH
(Superseded to 25-7930-03)

$76.99

$

Usually ships in 3-6 days

0

23

Toro 256-206

BUSHING

$1.49

$

In Stock, only 2 left!

0

24

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 3 left!

0

25

Toro 52-7500

WHEEL COVER

$

$

Not available

26

Toro 46-6510

THRUST WASHER

$

$

Not available

27

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

28

Toro 46-5930

PINION GEAR 14T

$29.99

$

Usually ships in 3-6 days

0

29

Toro 11-9519

Wheel, Tire 8 Gear Assembly (Incl. Ref. #31)
(Superseded to 14-9959)

$36.99

$

In Stock, only 2 left!

0

30

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

31

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

32

Toro 256-1

BUSHING

$28.99

$

In Stock, only 2 left!

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

34

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

35

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.49

$

In Stock, only 2 left!

0

36

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

37

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

38

Toro 8-5679

Worm Shaft 8 Gear (Incl. Ref. #49)

$144.99

$

In Stock, Qty 5

0

39

Toro 8-0479

Gear Case (Incl. Ref. #36,37&43)

$222.99

$

Usually ships in 3-6 days

0

40

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

41

Toro 28-1550

NYLON SCREW

$6.99

$

Usually ships in 3-6 days

0

42

Toro 46-9640

FILL PLUG GASKET

$5.49

$

Usually ships in 3-6 days

0

43

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 5

0

44

Toro 24-7920

COVER-SHAFT, DRIVE

$9.99

$

Usually ships in 3-6 days

0

45

Toro 25-7920

SPRING ARM ASM SP RH

$76.99

$

Usually ships in 3-6 days

0

46

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

47

Toro 3-0721

SLEEVE

$

$

Not available

48

Toro 19-5660

CLUTCH JAW

$39.99

$

Usually ships in 3-6 days

0

49

Helical Gear

$

$

Not available

50

Toro 3-0724

THRUST WASHER

$

$

Not available

Toro 52-7360

Gear Case Assy. Complete
(Superseded to 12-2399)

Note: Not illustrated

$

$

Not available

Toro 27-0490

BRG/SHAFT INSTALL TL

Note: Not illustrated

$

$

Not available

Toro 39-9640

SPECIAL TOOL

Note: Not illustrated

$28.99

$

Usually ships in 3-6 days

0

Toro 39-9640

SPECIAL TOOL

Note: Note: Used with 27-0490 Bearing/Shaft Tool.

$28.99

$

Usually ships in 3-6 days

0
