16273 - Toro Whirlwind Walk-Behind Mower (SN: 006000001 - 006999999) (1976) HOUSING AND ENGINE ASSEMBLY MODEL 16073 & 16173 Parts Diagram

Whirlwind Walk-Behind Mower

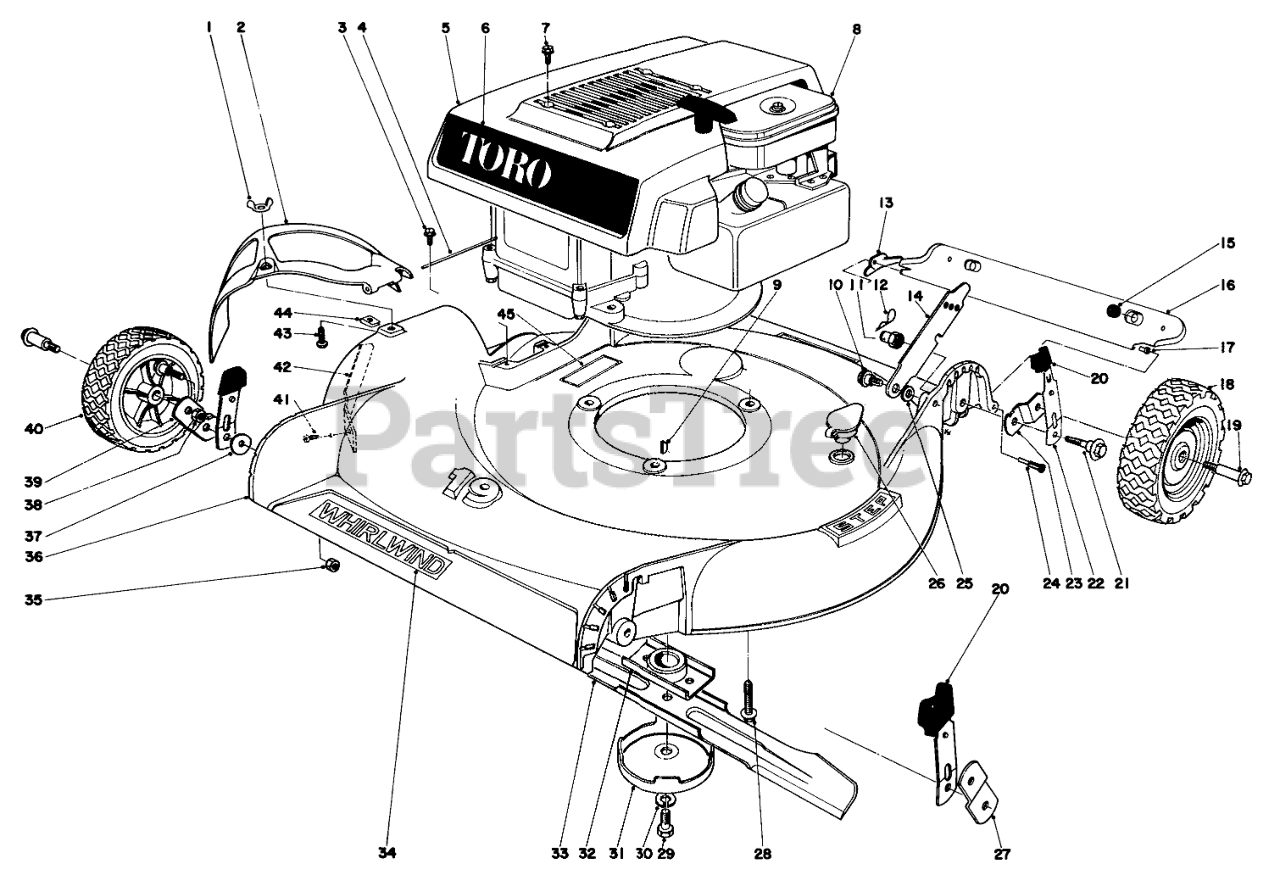

HOUSING AND ENGINE ASSEMBLY MODEL 16073 & 16173 Parts Diagram

  • Title

1

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

2

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

4

Toro 3-2644

HINGE PIN

$

$

Not available

5

Toro 124470

Shroud

$

$

Currently unavailable

6

Toro 26-0570

Decal Whirlwind

$

$

Currently unavailable

7

32104

Capscrew

$

$

Not available

8

Toro 221466

Engine (Model 16073)

$

$

Currently unavailable

Toro 221-505

Engine (Model 16173)

Note: Not illustrated

$

$

Currently unavailable

9

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

10

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

11

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 19-5680

Restraint R.H.

$

$

Not available

Toro 19-5740

Restraint L.H.

$

$

Not available

14

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

15

Toro 5-6450

SKID BUTTON

$

$

Not available

16

Toro 19-5770

Safety Shield (Incl. Ref. #15 & 17) (Model 16073)
(Superseded to 36-2360)

$

$

Not available

Toro 19-5780

Safety Shield (Incl. Ref. #15 & 17) (Model 16173)
(Superseded to 28-3780)

Note: Not illustrated

$

$

Not available

17

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

18

Toro 17-4120

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

19

Toro 3-2652

Bolt

$

$

Not available

20

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

21

Toro 12-2440

PIVOT SCREW

$22.99

$

In Stock, only 1 left!

0

22

Toro 25-7890

SPRING ARM ASM

$

$

Not available

23

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

24

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

25

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

26

Toro 64500

Plug Washout

$

$

Currently unavailable

27

Toro 20-3170

PIVOT ARM C PLTD

$

$

Not available

28

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 3-5246

SPECIAL SCREW

$

$

Not available

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

31

Toro 84240

Anti Scalp Cup

$

$

Currently unavailable

32

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

33

Toro 8-5240

Blade
(Superseded to 8-5240-03)

$

$

Not available

Toro 8-5230

Blade
(Superseded to 8-5230-03)

Note: Not illustrated

$33.99

$

Usually ships in 3-6 days

0

34

Toro 26-2170

Decal Toro

$

$

Currently unavailable

35

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

36

Toro 5-5279

Housing (Model 16073)

$

$

Not available

Toro 5-5299

Housing

Note: Not illustrated

$

$

Currently unavailable

37

Toro 54460

Washer

$

$

Currently unavailable

Toro 54460

Washer

Note: Not illustrated

$

$

Currently unavailable

38

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

39

Toro 20-3180

PIVOT ARM D PLTD

$

$

Not available

40

Toro 17-4140

Wheel Assembly

$

$

Not available

41

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

42

Toro 12-2990

Bar Safety

$

$

Not available

43

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

44

Toro 3290-380

NUT

$

$

Not available

45

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

Toro 19-5790

Drain Plug Wrench

Note: Not illustrated

$

$

Not available

Toro 26-6890

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
