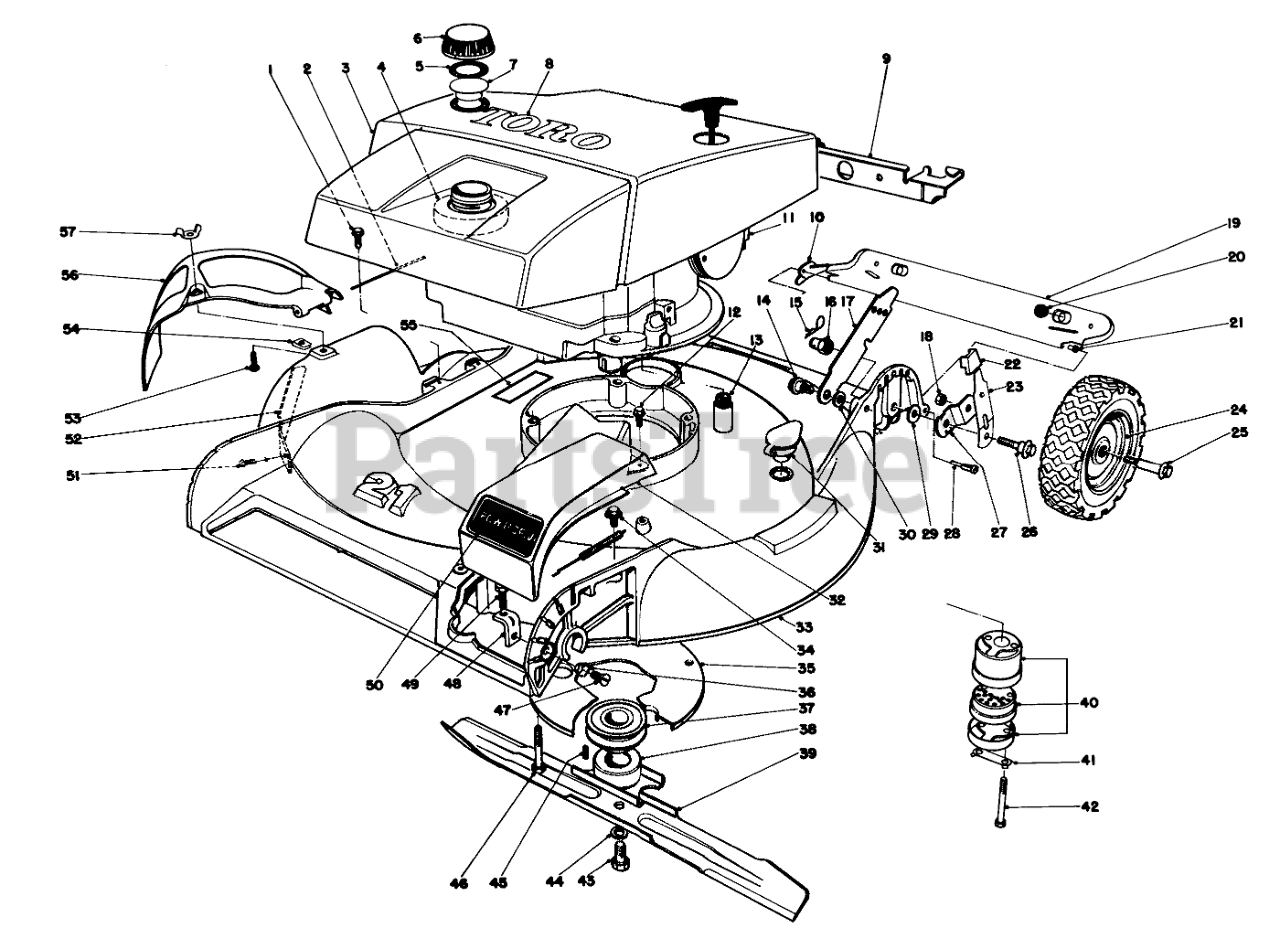

16268 - Toro Whirlwind Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HOUSING ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

2

Toro 3-2644

HINGE PIN

$

$

Not available

3

Toro 25-9170

Shroud
(Superseded to 6-3439)

$

$

Not available

4

Toro 25-1610

FOAM PAD

$

$

Not available

5

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

6

Toro 20-2860

Gas Cap (Incl. Ref. #5 & 7)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

8

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

9

Toro 11-9690

Shroud Bracket

$

$

Currently unavailable

10

Toro 19-5680

Restraint R.H.

$

$

Not available

Toro 19-5740

Restraint L.H.

Note: Not illustrated

$

$

Not available

11

Toro 221-502

Engine

$

$

Currently unavailable

12

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

13

Toro 3-0761

Extension Oil Drain

$

$

Currently unavailable

14

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

15

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

16

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

17

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

18

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

19

Toro 19-5780

Rear Safety Shield (Incl. Ref. #20-21)
(Superseded to 28-3780)

$

$

Not available

20

Toro 5-6450

SKID BUTTON

$

$

Not available

21

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

22

Toro 84220

Knob Arm

$

$

Currently unavailable

23

Toro 18-9590

Spring Arm

$

$

Not available

24

Toro 12-2620

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

25

Toro 3-2652

Bolt

$

$

Not available

26

Toro 12-2440

PIVOT SCREW

$21.99

$

In Stock, only 1 left!

0

27

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

28

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

29

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

30

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

31

Toro 6-4500

WASHOUT PLUG

$

$

Not available

32

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

33

Toro 25-9310

Housing

$

$

Currently unavailable

34

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

35

Toro 19-4040

Grass Guard

$

$

Not available

36

Toro 3255-12

Lockwasher

$

$

Not available

37

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

38

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

39

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

40

Toro 11-9570

Muffler Assembly
(Superseded to 5-4769)

$62.99

$

Usually ships in 3-6 days

0

41

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

42

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

43

Toro 3-5246

SPECIAL SCREW

$

$

Not available

44

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

45

Toro 21-5060

Key Square
(Superseded to 27-6300)

$6.49

$

In Stock, only 1 left!

0

46

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

47

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

48

Toro 3-7278

ADJ BRACKET

$

$

Not available

49

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

50

Toro 12-2430

Decal Power Drive

$

$

Not available

51

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

52

Toro 12-2990

Bar Safety

$

$

Not available

53

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

54

Toro 3290-380

NUT

$

$

Not available

55

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

56

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

57

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

Toro 25-7760

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
