16240 - Toro Whirlwind Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HOUSING AND ENGINE ASSEMBLY MODEL 16273 Parts Diagram

Whirlwind Walk-Behind Mower

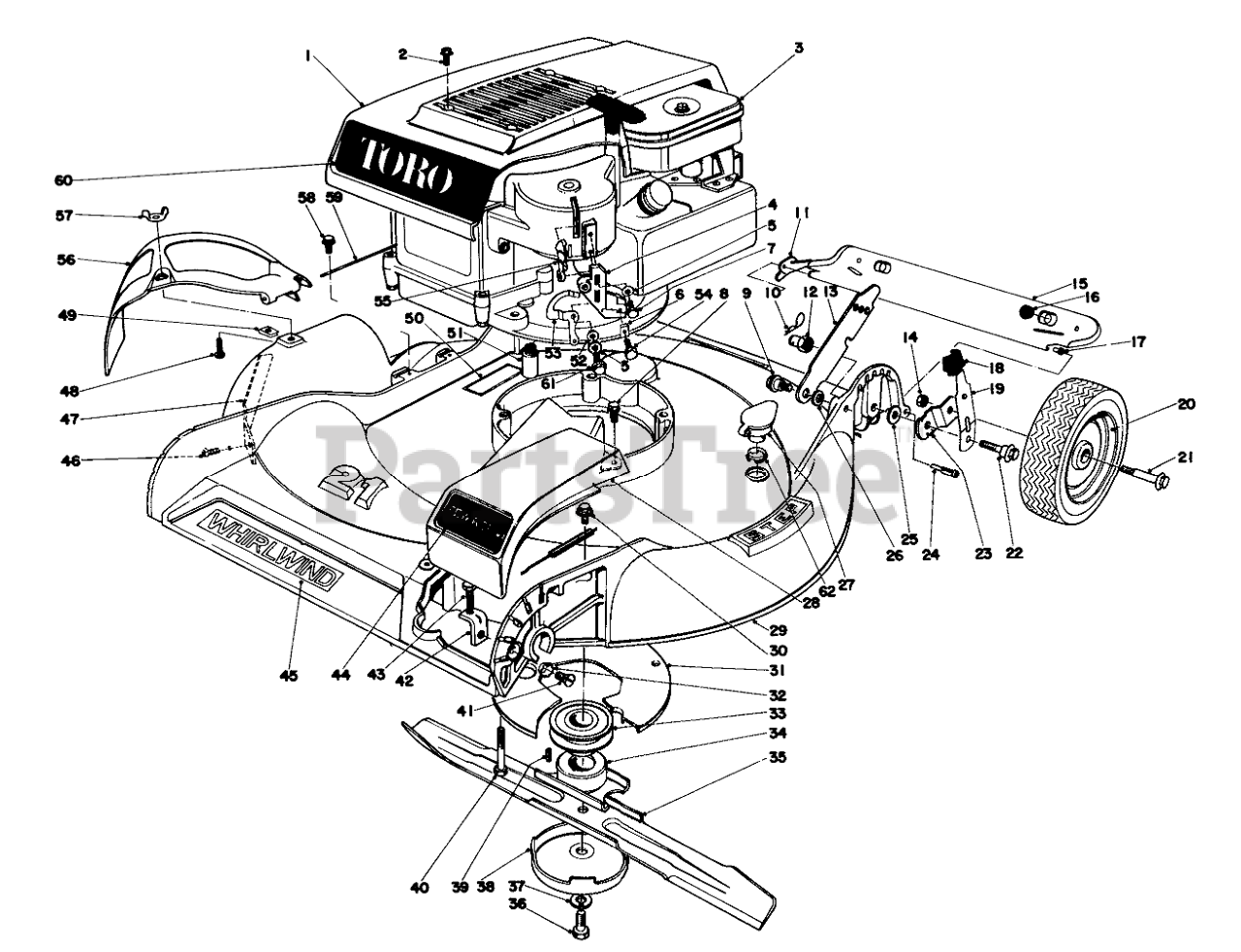

HOUSING AND ENGINE ASSEMBLY MODEL 16273 Parts Diagram

  • Title

1

Toro 12-4470

Shroud
(Superseded to 28-4720)

$90.99

$

Usually ships in 3-6 days

0

2

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

3

Toro 221-506

Engine

$

$

Currently unavailable

4

Toro 25-4830

Pivot Block

$

$

Not available

5

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 2412-38

Clip

$

$

Not available

7

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

9

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

10

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

11

Toro 19-5680

Restraint R.H.

$

$

Not available

Toro 19-5740

Restraint L.H.

Note: Not illustrated

$

$

Not available

12

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

14

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 195780

Rear Safety Shield (Incl. Ref. No. 16 & 17)

$

$

Currently unavailable

16

Toro 5-6450

SKID BUTTON

$

$

Not available

17

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

18

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

19

Toro 25-7890

SPRING ARM ASM

$

$

Not available

20

Toro 17-4120

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

21

Toro 3-2652

Bolt

$

$

Not available

22

Toro 12-2440

PIVOT SCREW

$21.99

$

In Stock, only 1 left!

0

23

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

24

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

25

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

26

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

27

Toro 6-4500

WASHOUT PLUG

$

$

Not available

28

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

29

Toro 5-5289

Housing

$

$

Currently unavailable

30

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

31

Toro 19-4040

Grass Guard

$

$

Not available

32

Toro 3255-12

Lockwasher

$

$

Not available

33

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

34

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

35

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

36

Toro 3-5246

SPECIAL SCREW

$

$

Not available

37

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

38

Toro 84240

Anti Scalp Cup

$

$

Currently unavailable

39

Toro 21-5060

Key Square
(Superseded to 27-6300)

$6.49

$

In Stock, only 1 left!

0

40

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

41

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

42

Toro 25-7560

Bracket-Gear Box

$

$

Not available

43

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro 12-2430

Decal Power Drive

$

$

Not available

45

Toro 26-2170

Decal Toro

$

$

Currently unavailable

46

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

47

Toro 12-2990

Bar Safety

$

$

Not available

48

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

49

Toro 3290-380

NUT

$

$

Not available

50

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

51

Toro 19-4030

OIL DRAIN EXTENSION

$

$

Not available

52

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

53

Toro 25-8150

CAM INTERLOCK

$

$

Not available

54

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

55

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

56

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

57

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

58

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

59

Toro 3-2644

HINGE PIN

$

$

Not available

60

Toro 26-0570

Decal Whirlwind

$

$

Currently unavailable

61

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0

62

Toro 26-7410

Washout Plug Adapter

$

$

Currently unavailable

Toro 19-5790

Drain Plug Wrench

Note: Not illustrated

$

$

Not available

Toro 26-6910

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
