16222 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1971) HOUSING AND ENGINE ASSEMBLY MODEL 16222 Parts Diagram

Walk-Behind Mower

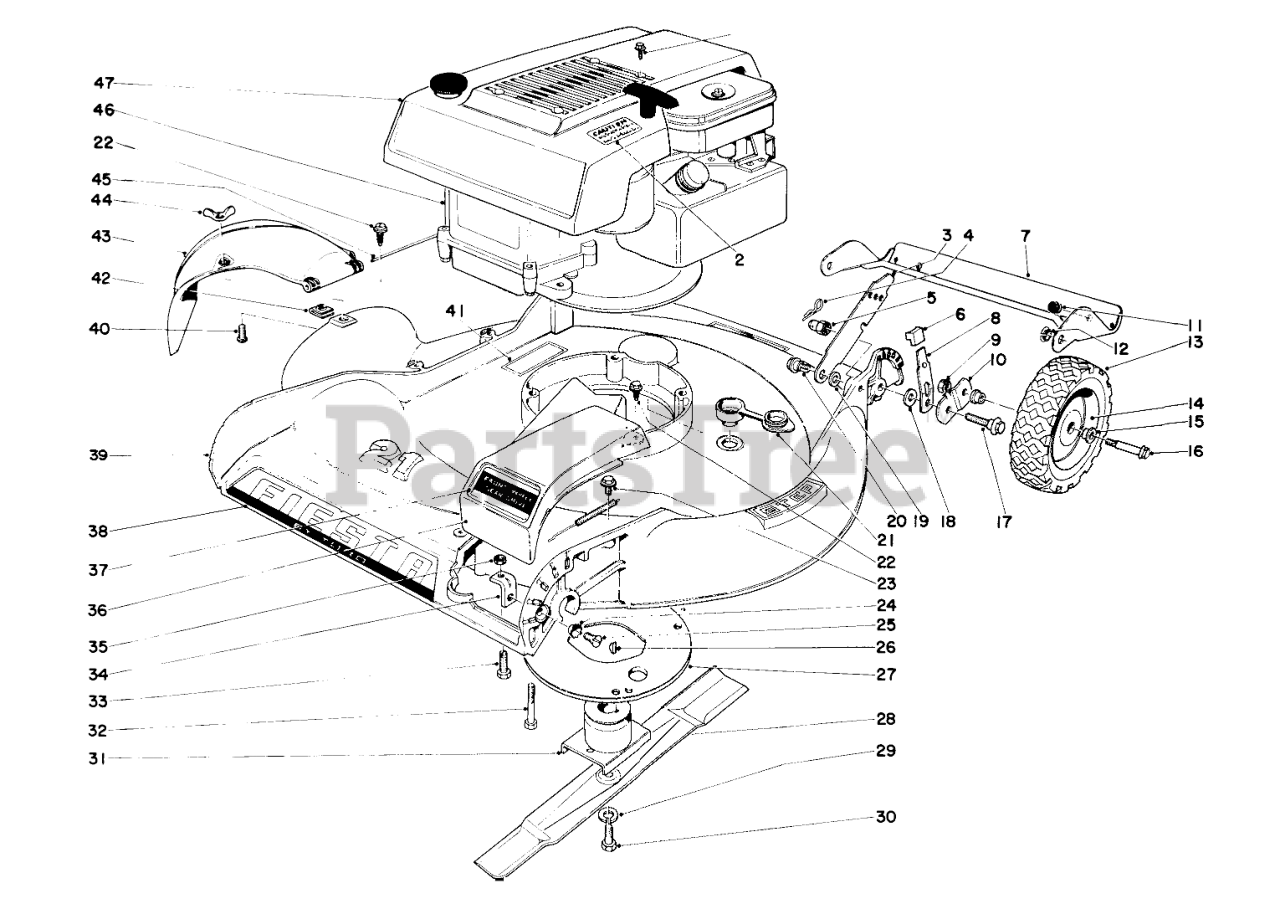

HOUSING AND ENGINE ASSEMBLY MODEL 16222 Parts Diagram

  • Title

1

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

2

Toro 5-4752

Decal-Warning

$

$

Not available

3

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

4

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

5

Toro 3-6482

Nut
(Superseded to 12-2080)

$22.99

$

Usually ships in 3-6 days

0

6

Toro 6-6220

Arm Knob

$

$

Currently unavailable

7

Toro 4-8889-4

Rear Safety Shield (Incl. #11)

$

$

Currently unavailable

8

Toro 5-3357-4

Spring Arm

$

$

Currently unavailable

9

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

10

Toro 5-4471-4

Pivot Arm

$

$

Currently unavailable

11

Toro 5-6450

SKID BUTTON

$

$

Not available

12

Toro 256-194

Nyliner

$

$

Currently unavailable

13

Toro 5-3543

TIRE

$

$

Not available

14

Toro 10-9830

Wheel (Incl. Ref. #15)
(Superseded to 10-9680)

$

$

Not available

15

Toro 5-4504

FLANGE BUSHING

$

$

Not available

16

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

17

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$22.99

$

In Stock, only 1 left!

0

18

Toro 5-4460-4

Pivot Washer

$

$

Currently unavailable

19

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

20

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

21

Toro 6-4500

WASHOUT PLUG

$

$

Not available

22

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 32140-69

Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 6

0

24

Toro 3255-12

Lockwasher

$

$

Not available

25

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

27

Toro 3-7626

Grass Guard

$

$

Not available

28

Toro 3-0663

21 ROTORY BLADE

$126.99

$

Usually ships in 3-6 days

0

29

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

30

Toro 3-5246

SPECIAL SCREW

$

$

Not available

31

Toro 3-8328

Blade Retainer

$

$

Currently unavailable

32

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

33

Toro 3-7281

SCREW

$

$

Not available

34

Toro 3-7278

ADJ BRACKET

$

$

Not available

35

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

36

Toro 10-9530

Cover, Belt Drive

$

$

Currently unavailable

37

Toro 10-9740

Decal, Power Drive

$

$

Currently unavailable

38

Toro 10-9660

Decal

$

$

Currently unavailable

39

Toro 10-8440

Housing

$

$

Currently unavailable

40

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

41

Toro 6-9690

Decal, Warning

$

$

Currently unavailable

42

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

43

Toro 10-9520

Deflector
(Superseded to 71-8640)

$

$

Not available

44

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

45

Toro 3-2644

HINGE PIN

$

$

Not available

46

Toro 221-383

Engine

$

$

Currently unavailable

47

Toro 10-9570

Shroud

$

$

Not available

Toro 5-4472-4

Pivot Arm

Note: Not illustrated

$

$

Currently unavailable

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

Note: Not illustrated

$4.99

$

In Stock, Qty 8

0

Toro 10-9630

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
