16212 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

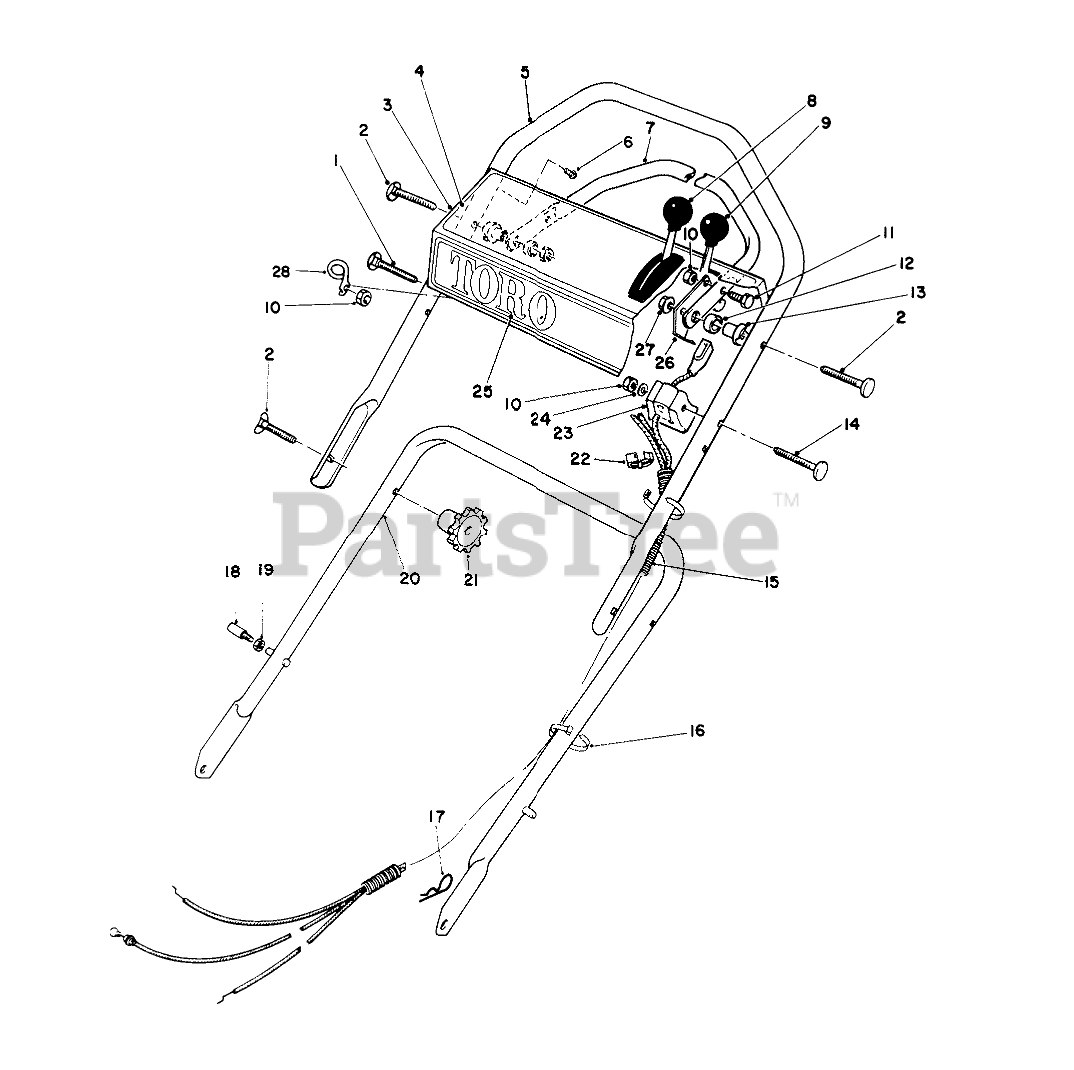

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

2

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

3

Toro 11-7049

Panel-Control (Incl. Ref. #4)

$

$

Not available

4

Toro 51-0190

Decal-Instructions

$

$

Not available

5

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

8

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

9

Toro 49-4193

THROTTLE CONT-SERVICE

$81.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

13

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

14

Toro 46-6434

HANDLE SCREW

$

$

Not available

15

Toro 46-6441

CONT. CABLE COVER

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

18

Toro 49-2780

CHOKE DECAL

Note: Service Replacement Parts

$

$

Not available

19

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 20+

0

20

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

21

$17.99

$

In Stock, only 2 left!

0

22

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

23

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 46-7380

Decal-Toro
(Superseded to 66-1770)

$

$

Not available

26

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$15.99

$

Usually ships in 3-6 days

0

27

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

28

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0
