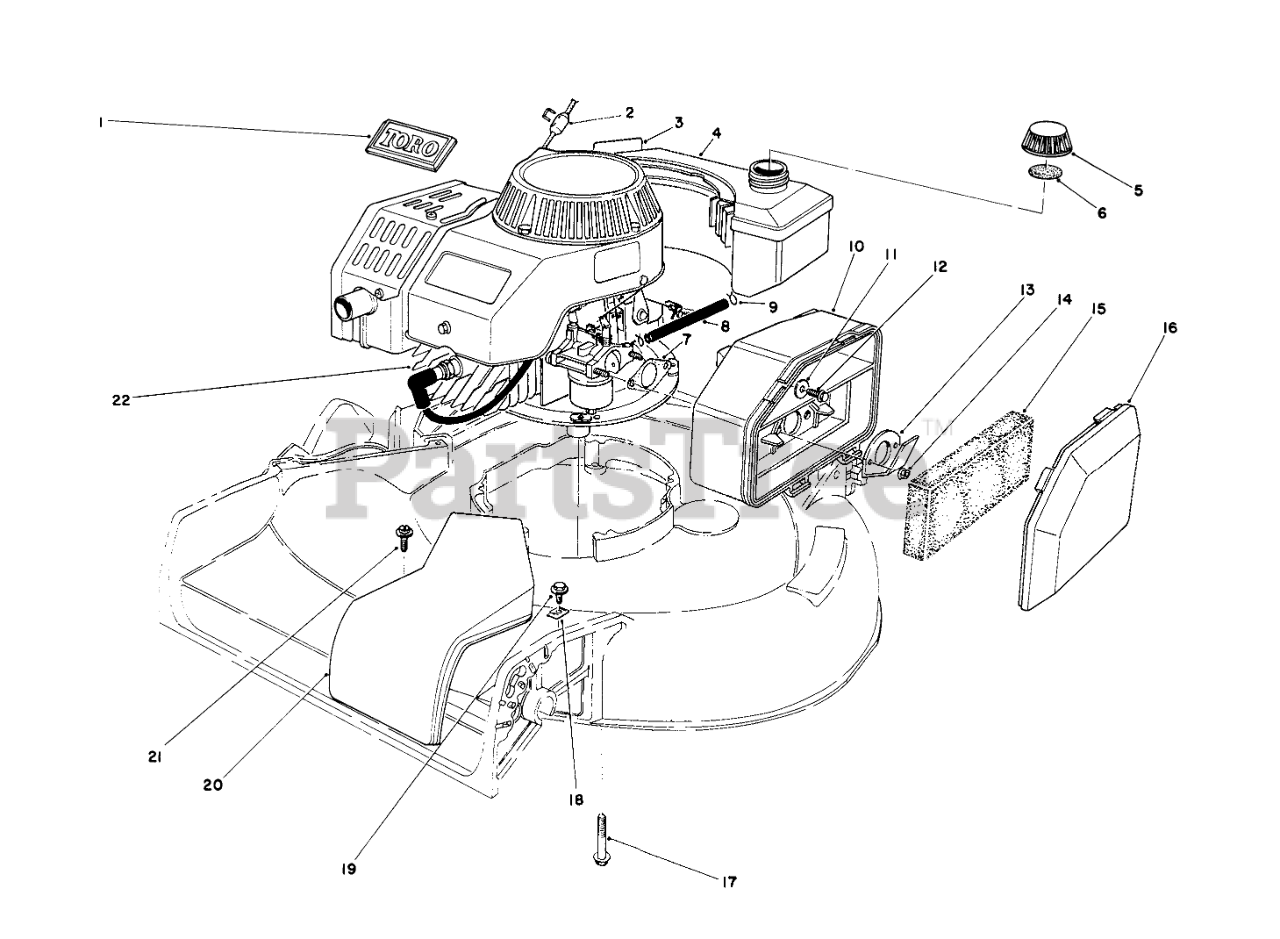

16212 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

2

Toro 47-2480

STOP-ROPE

$

$

Not available

3

Toro 40-2440

Decal-Maintenance

$

$

Not available

4

Toro 81-0160

Fuel Tank Assembly
(Superseded to 99-5263)

$

$

Not available

5

Toro 42-0681

Gas Cap Assembly (IncL Ref. #5)

$42.99

$

Usually ships in 3-6 days

0

6

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

7

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

8

Toro 81-2310

FUEL LINE

$3.49

$

Usually ships in 3-6 days

0

9

Toro 51-3200

FUEL LINE CLAMP

$

$

Not available

10

Toro 81-0110

AIR CLEANER

$

$

Not available

11

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

13

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

14

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

16

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

17

Toro 3234-20

FLG SCREW,3/8-16X2.000
(Superseded to 66-9302)

$4.99

$

Usually ships in 3-6 days

0

18

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

19

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

20

Toro 46-4781

Cow-Belt
(Superseded to 46-4780)

$30.99

$

Usually ships in 3-6 days

0

21

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

22

Toro 59257

Engine
(Superseded to 12-8099)

$

$

Not available
