16212 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) RECOIL ASSEMBLY Parts Diagram

Walk-Behind Mower

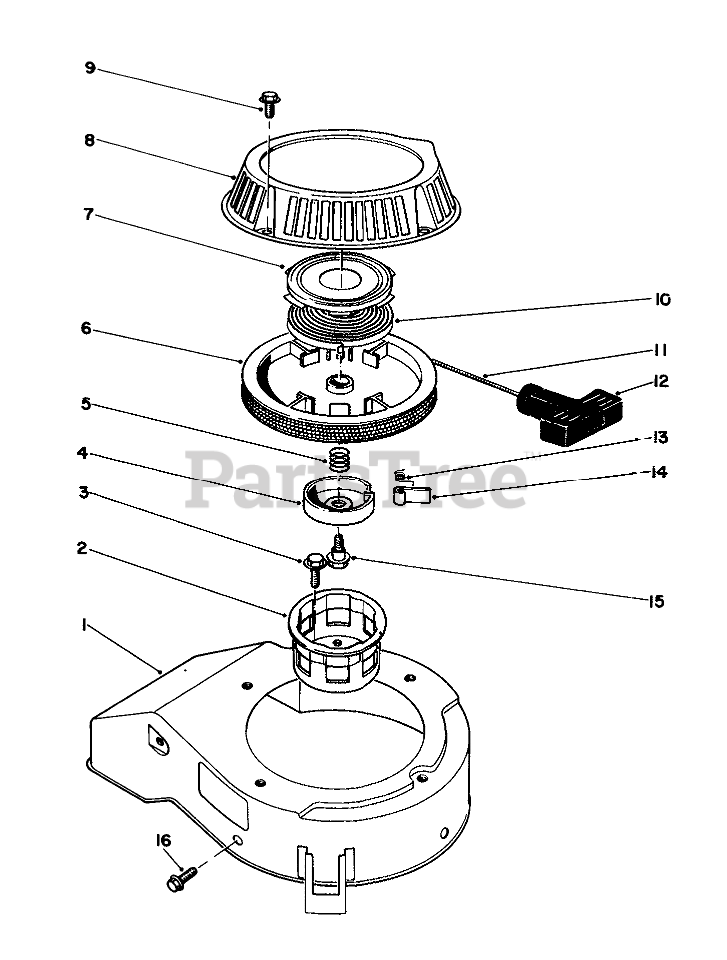

RECOIL ASSEMBLY Parts Diagram

  • Title

1

Toro 81-2070

COVER

$

$

Not available

2

Toro 81-1290

CUP - STARTER

$21.99

$

Usually ships in 3-6 days

0

3

Toro 81-1300

BOLT

$7.99

$

Usually ships in 3-6 days

0

4

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

5

Toro 81-1240

SPRING

$

$

Not available

6

Toro 81-1210

REEL

$49.99

$

In Stock, only 2 left!

0

7

Toro 81-1640

Retainer-Recoil Spring
(Superseded to 81-2300)

$39.99

$

Usually ships in 3-6 days

0

8

Toro 81-2090

CASE

$

$

Not available

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

10

Toro 81-1200

Spring-Recoil
(Superseded to 81-2300)

$39.99

$

Usually ships in 3-6 days

0

11

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$30.99

$

Usually ships in 3-6 days

0

12

Toro 81-1630

HANDLE-RECOIL

$18.99

$

In Stock, only 1 left!

0

13

Toro 81-1220

SPRING

$

$

Not available

14

Toro 81-1230

DOG

$

$

Not available

15

Toro 81-1260

BOLT

$

$

Not available

16

Toro 81-1170

BOLT

$9.49

$

Usually ships in 3-6 days

0

Toro 81-2040

Starter Assembly (Incl. Ref. #4-15)

Note: Not illustrated

$321.99

$

Usually ships in 3-6 days

0

Toro 81-2300

Spring & Retainer (Incl. Ref. #7 & 10)

Note: Not illustrated

$39.99

$

Usually ships in 3-6 days

0
