16212 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) BRAKE ASSEMBLY Parts Diagram

Walk-Behind Mower

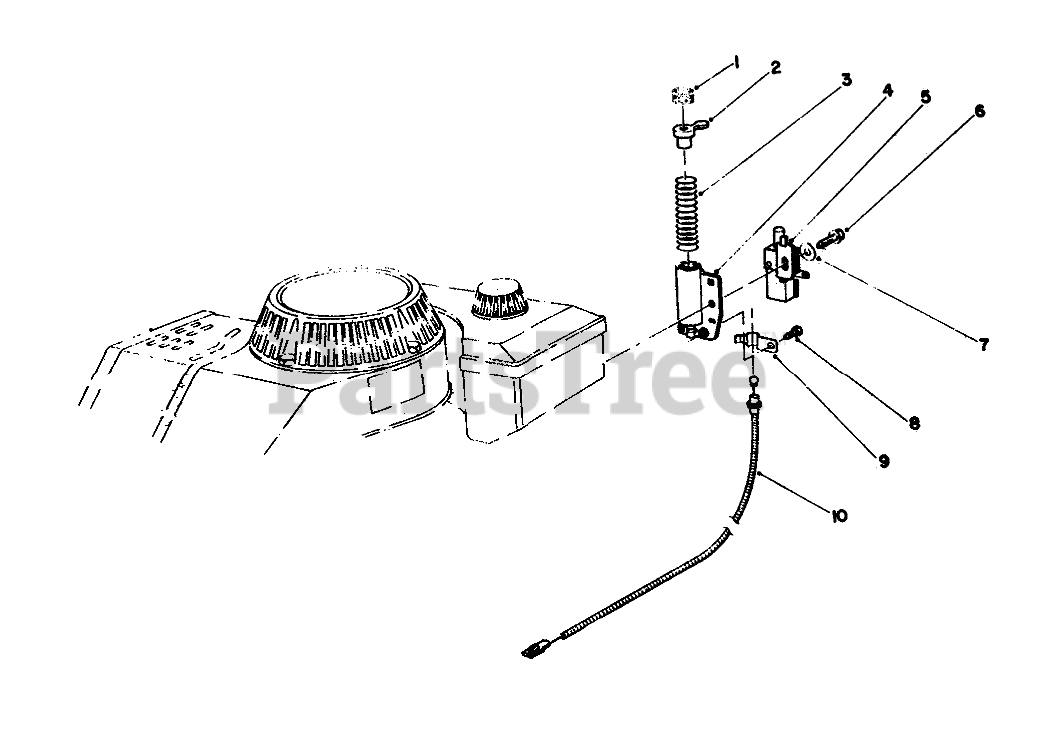

BRAKE ASSEMBLY Parts Diagram

  • Title
1

Pad-Friction

$

$

Not available

2

Toro 47-7350

Plunger & Pad Assembly (Incl. Ref. #1)

$

$

Not available

3

Toro 47-2180

COMPRESSION SPRING

$

$

Not available

4

Toro 46-5840

TUBE W A

$

$

Not available

5

Toro 47-6520

PUSH BUTTON SWITCH

$

$

Not available

6

Toro 46-0790

THO FORM SCREW M6 X 1

$

$

Not available

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

9

Toro 46-6530

CABLE CLAMP

$

$

Not available

10

Toro 43-4533

BRAKE CABLE

$82.99

$

Usually ships in 3-6 days

0
