16212 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

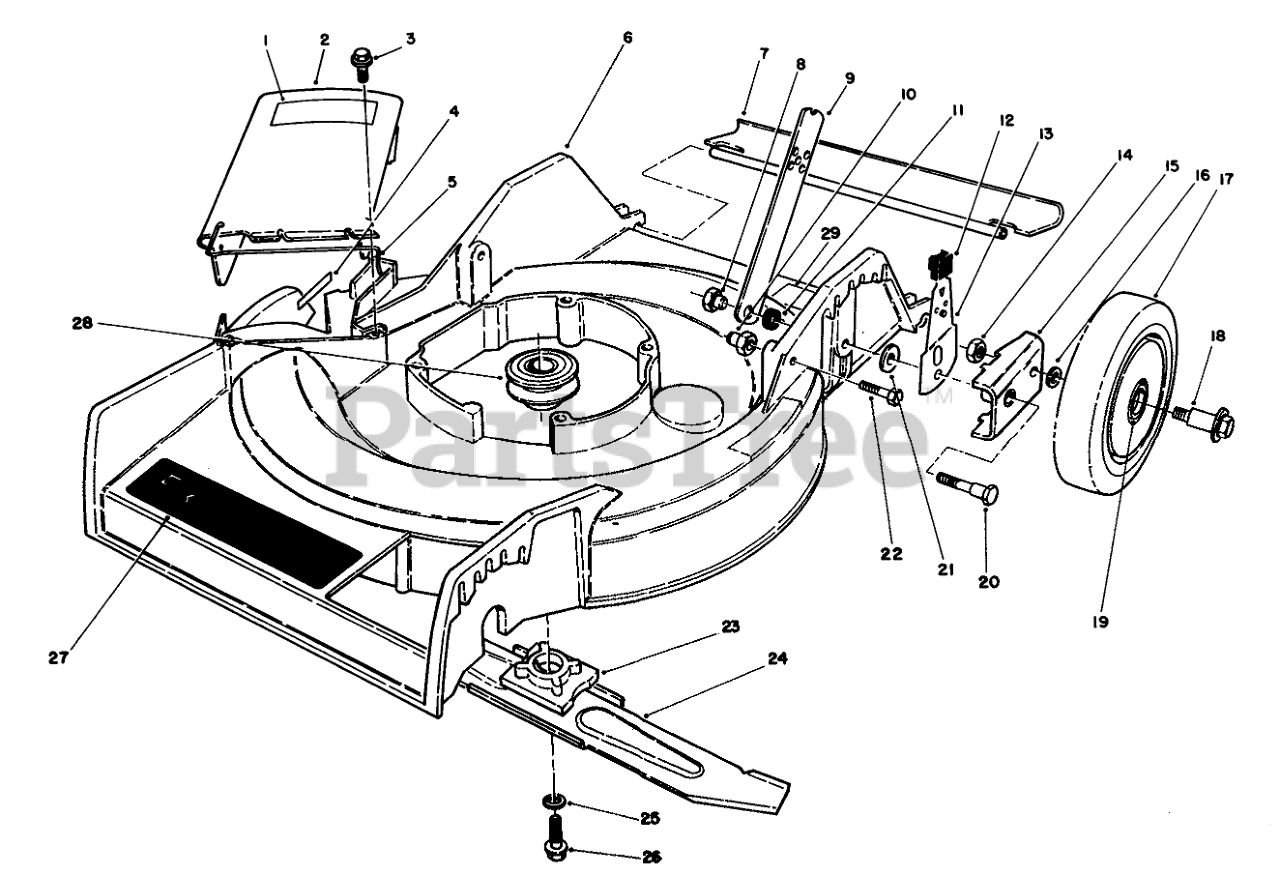

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 62-4210

DECAL - DANGER DEFL

$

$

Not available

2

Toro 13-5909

Deflector (Incl. Ref. #1 & 5)

$129.99

$

Usually ships in 3-6 days

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

4

Toro 62-4200

DANGER DECAL

$

$

Not available

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 13-3489

Housing (Incl. Ref. #4)

$

$

Not available

7

Toro 66-5990

SHIELD - TRAILING

$

$

Not available

8

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

9

Toro 27-7080

HANDLE LATCH

$

$

Not available

10

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Toro 66-9260

SPRING ARM ASSEMBLY

$

$

Not available

Toro 66-9250

SPRING ARM ASSEMBLY

$

$

Not available

14

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

15

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

16

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

17

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #19)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

18

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

20

Toro 44-5271

PIVOT SCREW

$9.49

$

In Stock, only 1 left!

0

21

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0

24

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

26

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

27

Toro 70-1590

DECAL - SP DECK

$

$

Not available

28

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

29

Decal-Noise Rating

$

$

Not available
