16212 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

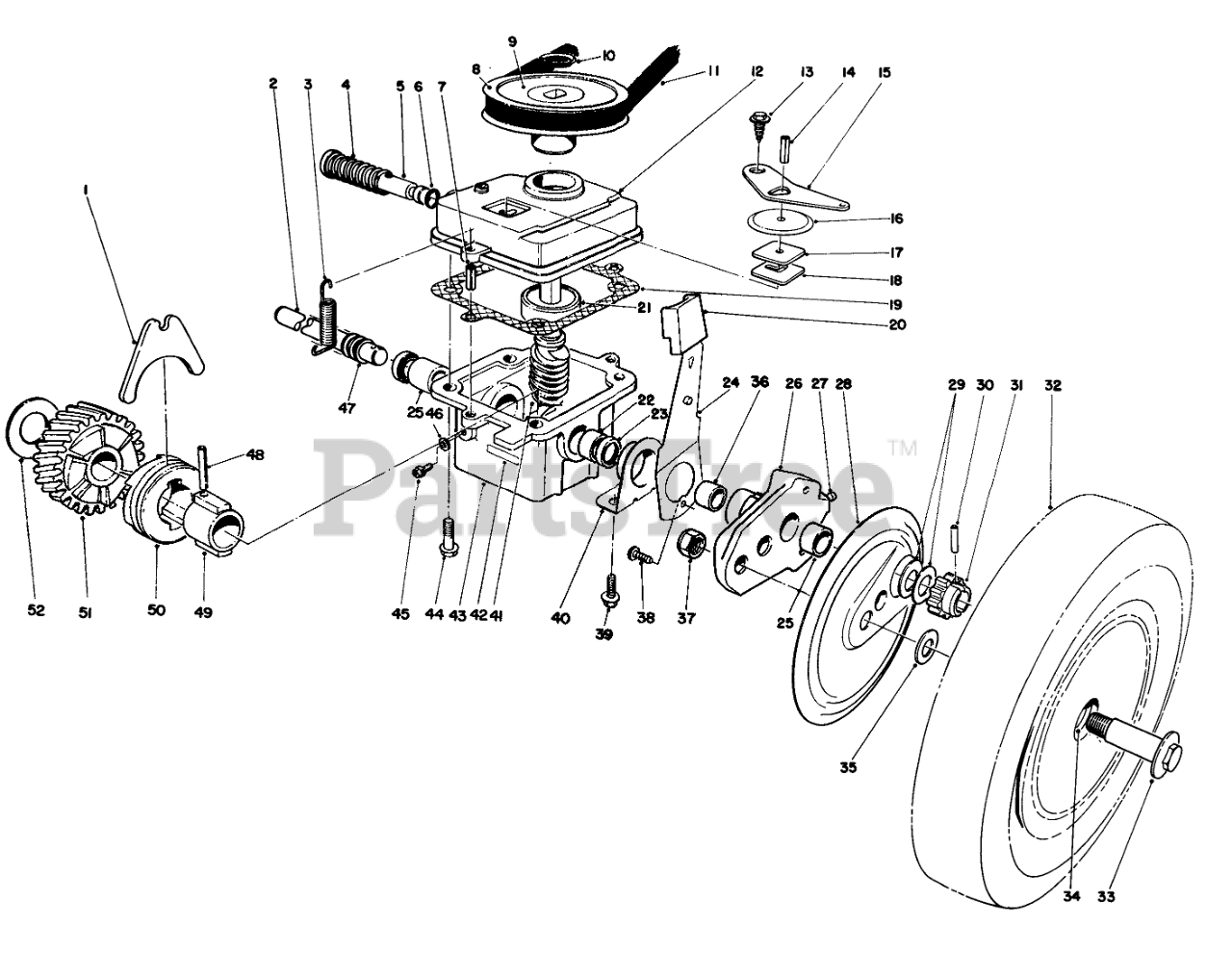

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 66-6020

DRIVE SHAFT

$95.99

$

Usually ships in 3-6 days

0

3

Toro 17-4490

TENSION SPRING

$23.99

$

In Stock, only 1 left!

0

4

Toro 3-0731

SPRING

$12.99

$

Usually ships in 3-6 days

0

5

Toro 46-8240

SHIFTER ROD

$48.99

$

Usually ships in 3-6 days

0

6

Toro 237-137

O-RING

$16.99

$

Usually ships in 3-6 days

0

7

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

8

Toro 18-9760

PULLEY

$78.99

$

Usually ships in 3-6 days

0

9

Toro 33-2450

DECAL

$

$

Not available

10

Toro 3290-346

PUSH-ON 93-3236

$9.49

$

Usually ships in 3-6 days

0

11

Toro 5-4505

V BELT

$24.99

$

Usually ships in 3-6 days

0

12

Toro 39-1101

GEAR CASE COVER

$

$

Not available

13

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-114

SPIROL PIN H D

$2.49

$

Usually ships in 3-6 days

0

15

Toro 5-3252

SHIFTER ARM

$40.99

$

In Stock, only 1 left!

0

16

Toro 52-7380

DUST COVER

$

$

Not available

17

Toro 52-7370

DUST FILTER

$3.99

$

In Stock, only 2 left!

0

18

Toro 3-0681

LATCH PLATE

$

$

Not available

19

Toro 36-1000

GASKET

$10.99

$

Usually ships in 3-6 days

0

20

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

21

Toro 47-7250

BEARING

$76.99

$

Usually ships in 3-6 days

0

22

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

23

Toro 47-6730

SEAL-OIL

$13.99

$

In Stock, Qty 20+

0

24

Toro 67-9370

SPRING ARM ASSY-FRONT

$32.99

$

Usually ships in 3-6 days

0

25

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

26

Toro 66-6001

Arm-Pivot (Incl. Ref. #25, 27 & 36)

$58.99

$

In Stock, only 2 left!

0

27

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 10

0

28

Toro 63-5270

WHEEL COVER

$

$

Not available

29

Toro 46-6510

THRUST WASHER

$

$

Not available

30

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

31

Toro 46-6520

PINION GEAR 15T

$27.99

$

In Stock, Qty 6

0

32

Toro 11-9519

Wheel, Tire & Gear Assy (Incl. Ref. #34)
(Superseded to 14-9959)

$54.99

$

In Stock, Qty 13

0

33

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 2 left!

0

34

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

35

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

36

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

37

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 14

0

38

Toro 63-8590

SCREW

$1.49

$

In Stock, Qty 6

0

39

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

40

Toro 68-9000

END CAP

$

$

Not available

41

Toro 8-5679

Worm Shaft & Gear (Incl. Ref. #51)

$173.99

$

In Stock, only 4 left!

0

42

Toro 40-4755

DECAL

$1.99

$

Usually ships in 3-6 days

0

43

Toro 8-0479

Gear Case (Incl. Ref. #22, 23 & 25)

$271.99

$

Usually ships in 3-6 days

0

44

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

45

Toro 28-1550

NYLON SCREW

$

$

Not available

46

Toro 46-9640

FILL PLUG GASKET

$

$

Not available

47

Toro 24-7920

COVER-SHAFT, DRIVE

$12.99

$

Usually ships in 3-6 days

0

48

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

49

Toro 3-0721

SLEEVE

$

$

Not available

50

Toro 19-5660

CLUTCH JAW

$48.99

$

Usually ships in 3-6 days

0

51

Gear-Helical

$

$

Not available

52

Toro 3-0724

THRUST WASHER

$

$

Not available

Toro 13-3479

GEAR CASE ASM W/DECAL

$

$

Not available

Toro 27-0490

BRG/SHAFT INSTALL TL

$

$

Not available

Toro 39-9640

SPECIAL TOOL

$29.99

$

Usually ships in 3-6 days

0

Toro 27-0460

SP ROTARY BSHG TOOL

$

$

Not available
