16212 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

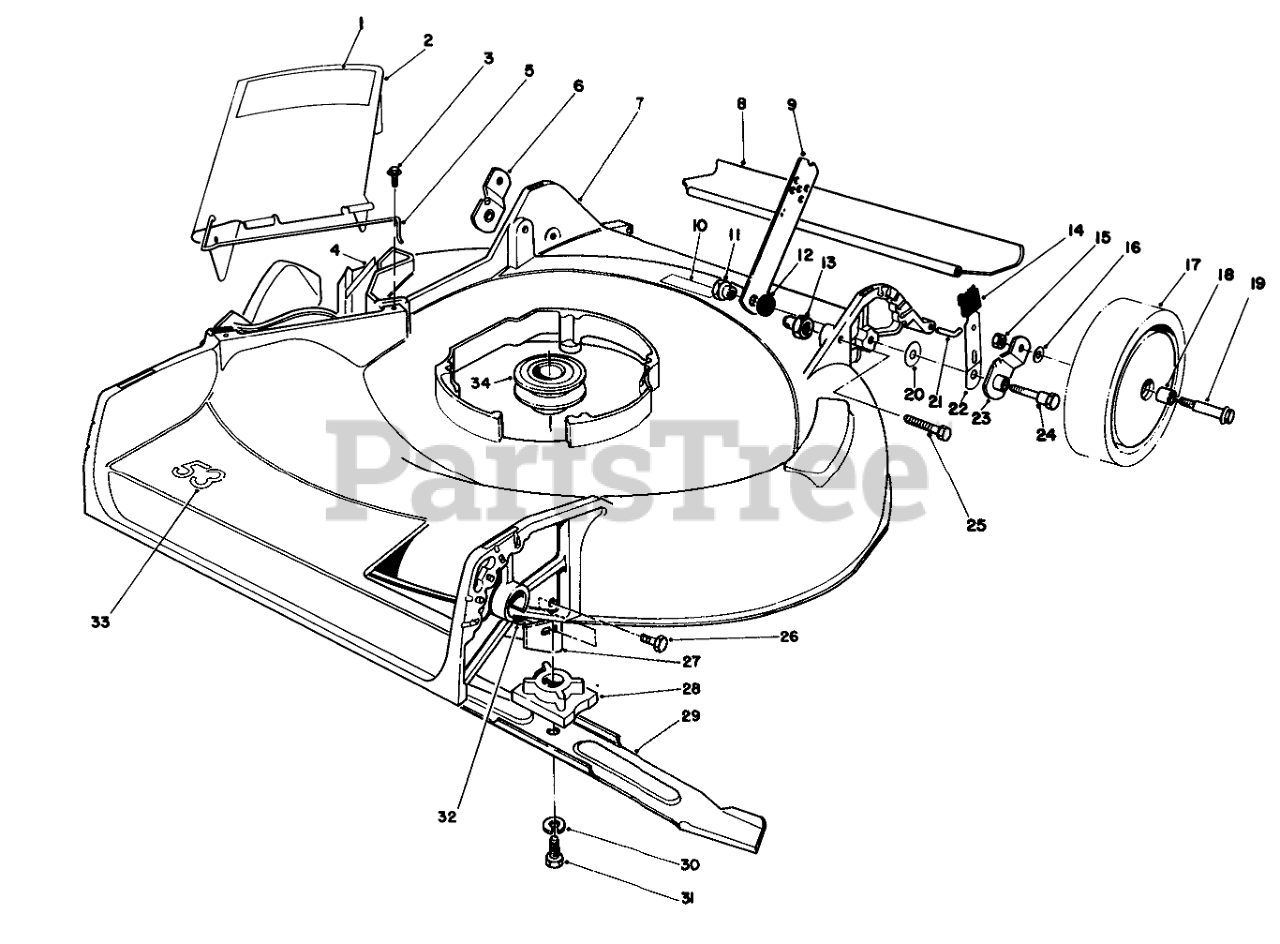

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 62-4210

DECAL - DANGER DEFL

$31.99

$

Usually ships in 3-6 days

0

2

Toro 12-6209

Deflector (Incl. Ref. #1)
(Superseded to 13-5909)

$110.99

$

Usually ships in 3-6 days

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

4

Toro 62-4200

DANGER DECAL

$

$

Not available

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 11-7139

HOUSING/DECAL

$

$

Not available

8

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

9

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

10

Toro 40-2850

Decal

$

$

Not available

11

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

12

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

13

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

15

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

16

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Toro 11-9509

Wheel 8 Tire Assembly (Incl. Ref. #18)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

18

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

20

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

21

Toro 33-3201

SHIELD ROD

$

$

Not available

22

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

23

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

24

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

25

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 47-7580

Shield Front

$

$

Not available

28

Toro 49-7900

BLADE RETAINER

$63.99

$

In Stock, only 2 left!

0

29

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 2 left!

0

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

31

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 62-4190

DECAL - 53

$

$

Not available

34

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0
