16212 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

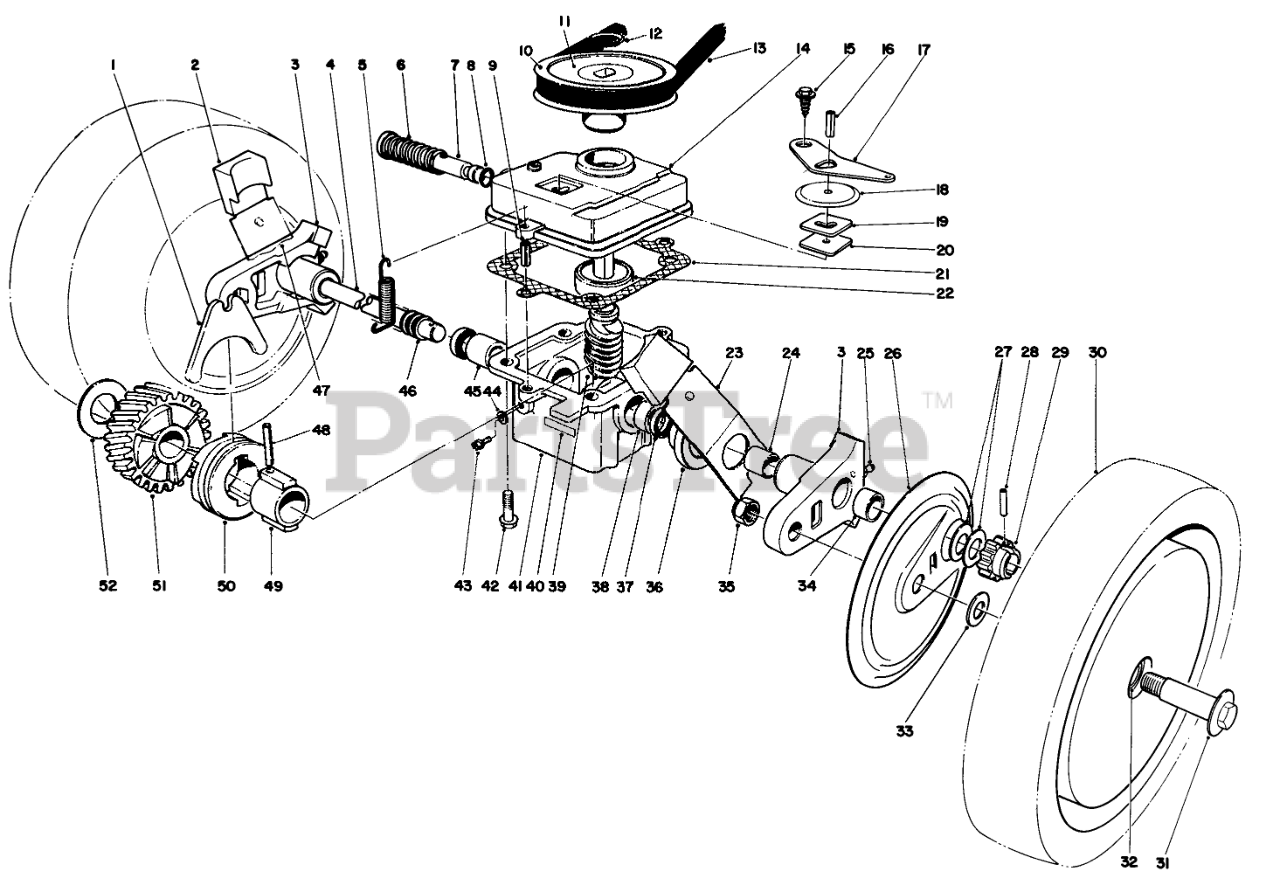

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

3

Toro 38-2220

Pivot Arm (Incl. Ret. #24, 25 8 34)

$128.99

$

Usually ships in 3-6 days

0

4

Toro 37-9440

DRIVE SHAFT (SERVCE)

$

$

Not available

5

Toro 17-4490

TENSION SPRING

$21.99

$

In Stock, only 1 left!

0

6

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

7

Toro 46-8240

SHIFTER ROD

$46.99

$

Usually ships in 3-6 days

0

8

Toro 237-137

O-RING

$15.99

$

Usually ships in 3-6 days

0

9

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

10

Toro 18-9760

PULLEY

$74.99

$

Usually ships in 3-6 days

0

11

Toro 33-2450

DECAL

$

$

Not available

12

Toro 3290-346

PUSH-ON 93-3236

$9.49

$

Usually ships in 3-6 days

0

13

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

14

Toro 39-1101

GEAR CASE COVER

$

$

Not available

15

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

16

Toro 32121-114

SPIROL PIN H D

$2.49

$

Usually ships in 3-6 days

0

17

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

18

Toro 52-7380

DUST COVER

$

$

Not available

19

Toro 3-0681

LATCH PLATE

$

$

Not available

20

Toro 52-7370

DUST FILTER

$3.99

$

In Stock, only 2 left!

0

21

Toro 36-1000

GASKET

$10.99

$

Usually ships in 3-6 days

0

22

Toro 47-7250

BEARING

$72.99

$

Usually ships in 3-6 days

0

23

Toro 25-7930

SPRING ARM ASM SP LH
(Superseded to 25-7930-03)

$78.99

$

Usually ships in 3-6 days

0

24

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

25

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

26

Toro 52-7500

WHEEL COVER

$

$

Not available

27

Toro 46-6510

THRUST WASHER

$

$

Not available

28

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

29

Toro 46-5930

PINION GEAR 14T

$34.99

$

Usually ships in 3-6 days

0

30

Toro 11-9519

Wheel, Tire & Gear Assembly (Incl. Ref. #32)
(Superseded to 14-9959)

$62.99

$

In Stock, Qty 9

0

31

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

32

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

34

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

35

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

36

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

37

Toro 47-6730

SEAL-OIL

$13.99

$

In Stock, Qty 20+

0

38

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

39

Toro 8-5679

Worm Shaft & Gear (Incl. Ref. #51)

$165.99

$

In Stock, only 4 left!

0

40

Toro 40-4755

DECAL

$1.99

$

Usually ships in 3-6 days

0

41

Toro 8-0479

Gear Case (Incl. Ref. #37, 38 8 45)

$258.99

$

Usually ships in 3-6 days

0

42

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

43

Toro 28-1550

NYLON SCREW

$

$

Not available

44

Toro 46-9640

FILL PLUG GASKET

$

$

Not available

45

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

46

Toro 24-7920

COVER-SHAFT, DRIVE

$11.99

$

Usually ships in 3-6 days

0

47

Toro 25-7920

SPRING ARM ASM SP RH

$

$

Not available

48

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

49

Toro 3-0721

SLEEVE

$

$

Not available

50

Toro 19-5660

CLUTCH JAW

$46.99

$

Usually ships in 3-6 days

0

51

Helical Gear

$

$

Not available

52

Toro 3-0724

THRUST WASHER

$

$

Not available

Toro 52-7360

Gear Case Assy. Complete
(Superseded to 12-2399)

Note: Not illustrated

$

$

Not available

Toro 27-0490

BRG/SHAFT INSTALL TL

Note: Not illustrated

$

$

Not available

Toro 39-9640

SPECIAL TOOL

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

Toro 39-9640

SPECIAL TOOL

Note: Use with 27-0490 Bearing & Shaft Tool

$27.99

$

Usually ships in 3-6 days

0

Toro 27-0460

SP ROTARY BSHG TOOL

Note: Not illustrated

$

$

Not available
