16212 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

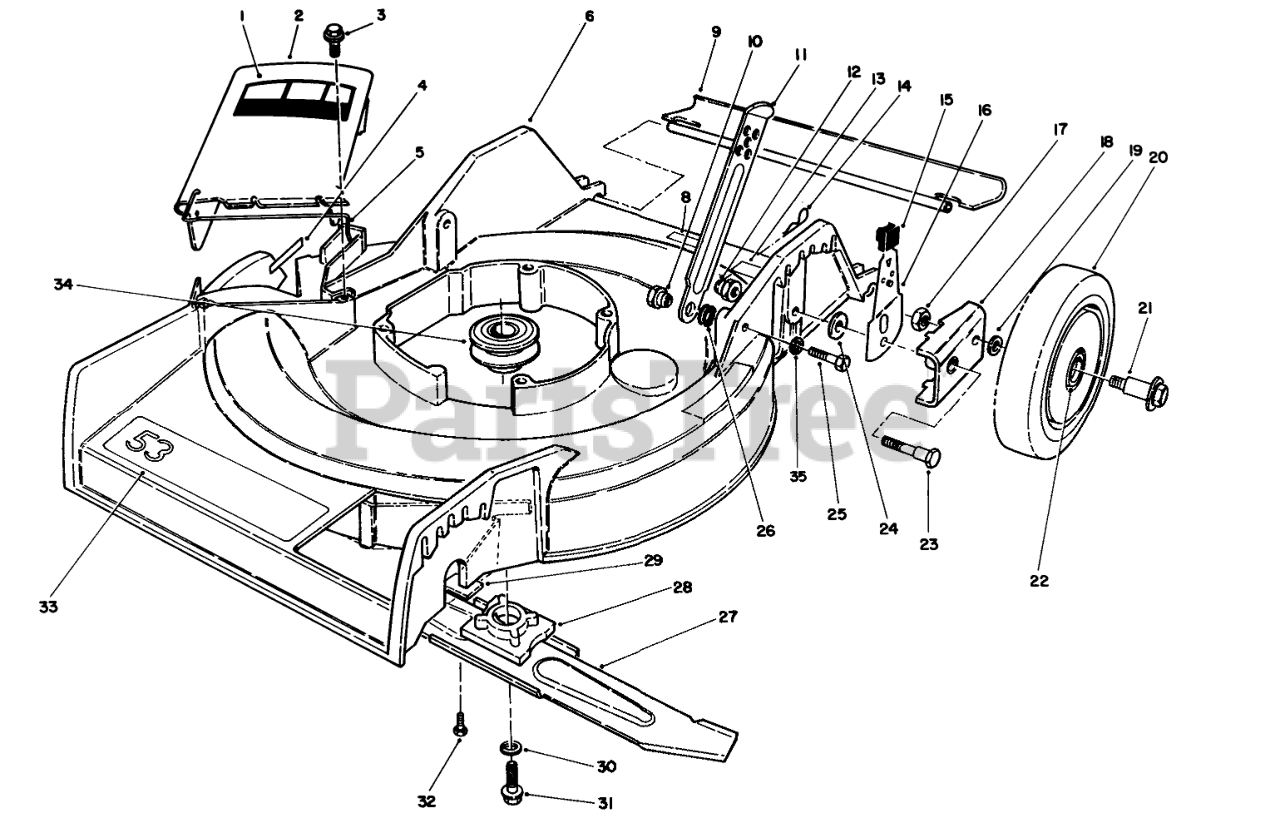

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 62-4210

DECAL - DANGER DEFL

$

$

Not available

2

Toro 13-5909

Deflector (Incl. Ref. #1 & 5)

$129.99

$

Usually ships in 3-6 days

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

4

Toro 62-4200

DANGER DECAL

$

$

Not available

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 13-3489

Housing (Incl. Ref. #4)

$

$

Not available

8

Toro 66-0680

DECAL FRENCH REGUL.

$

$

Not available

9

Toro 66-5990

SHIELD - TRAILING

$

$

Not available

10

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

11

Toro 82-7620

HANDLE LATCH

$

$

Not available

12

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 66-2000

Decal-Noise

$

$

Not available

14

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

15

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

16

Toro 66-9260

SPRING ARM ASSEMBLY

$

$

Not available

Toro 66-9250

SPRING ARM ASSEMBLY

Note: Not illustrated

$

$

Not available

17

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

18

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #22)
(Superseded to 51-2751)

$34.99

$

In Stock, only 4 left!

0

21

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

22

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

23

Toro 44-5271

PIVOT SCREW

$9.49

$

In Stock, only 1 left!

0

24

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

25

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

27

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

28

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0

29

Toro 67-9880

FRONT SHIELD

$

$

Not available

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

31

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 70-1590

DECAL - SP DECK

$

$

Not available

34

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

35

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

Toro 46-1930

Wrench
(Superseded to 62-6770)

Note: Not illustrated

$

$

Not available

Toro 46-1040

SPK PLUG WRENCH/HDLE

Note: Not illustrated

$

$

Not available

Toro 46-1041

WRENCH KEY

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0
