16212 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

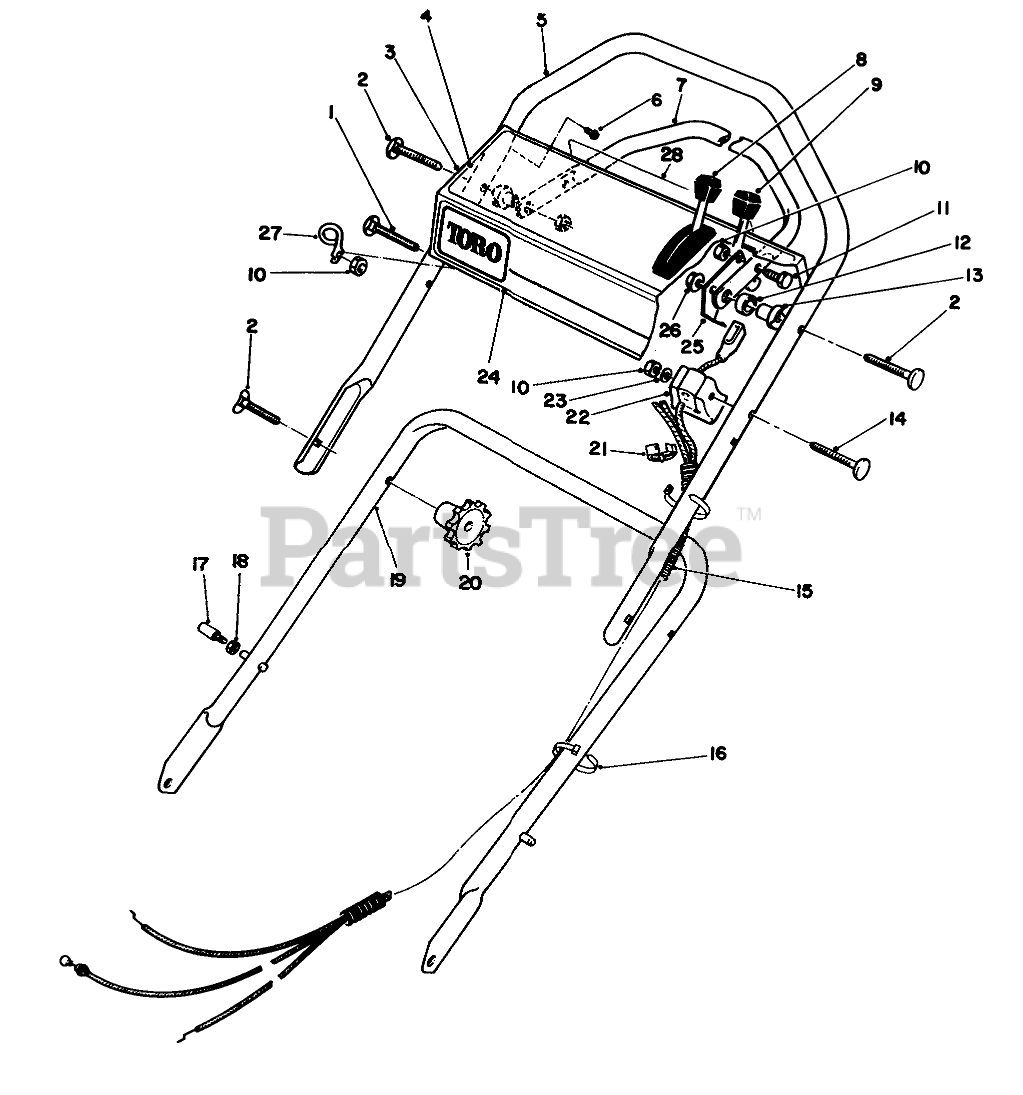

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

2

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

3

Toro 13-3469

Panel-Control (Incl. Ref. #4 & 29)

$

$

Not available

4

Toro 66-1840

DECAL - INSTR (INT'L)

$

$

Not available

5

Toro 84-8330

UPPER HANDLE, PVC DIP

$

$

Not available

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

8

Toro 46-6884

Control-Traction (Bend Type #3) Sheath Lg. 46")(Wire Lg. 2")
(Superseded to 46-6883)

$

$

Not available

9

Toro 49-4197

THROTTLE CONTROL - R&S

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

13

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

14

Toro 46-6434

HANDLE SCREW

$

$

Not available

15

Toro 46-6441

CONT. CABLE COVER

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$36.99

$

Usually ships in 3-6 days

0

18

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 20+

0

19

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

20

$17.99

$

In Stock, only 2 left!

0

21

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

22

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 66-1770

DECAL - TORO PANEL

$

$

Not available

25

Toro 66-5350

LEVER-CONTROL

$15.99

$

Usually ships in 3-6 days

0

26

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

27

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

28

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$10.99

$

Usually ships in 3-6 days
