16212 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

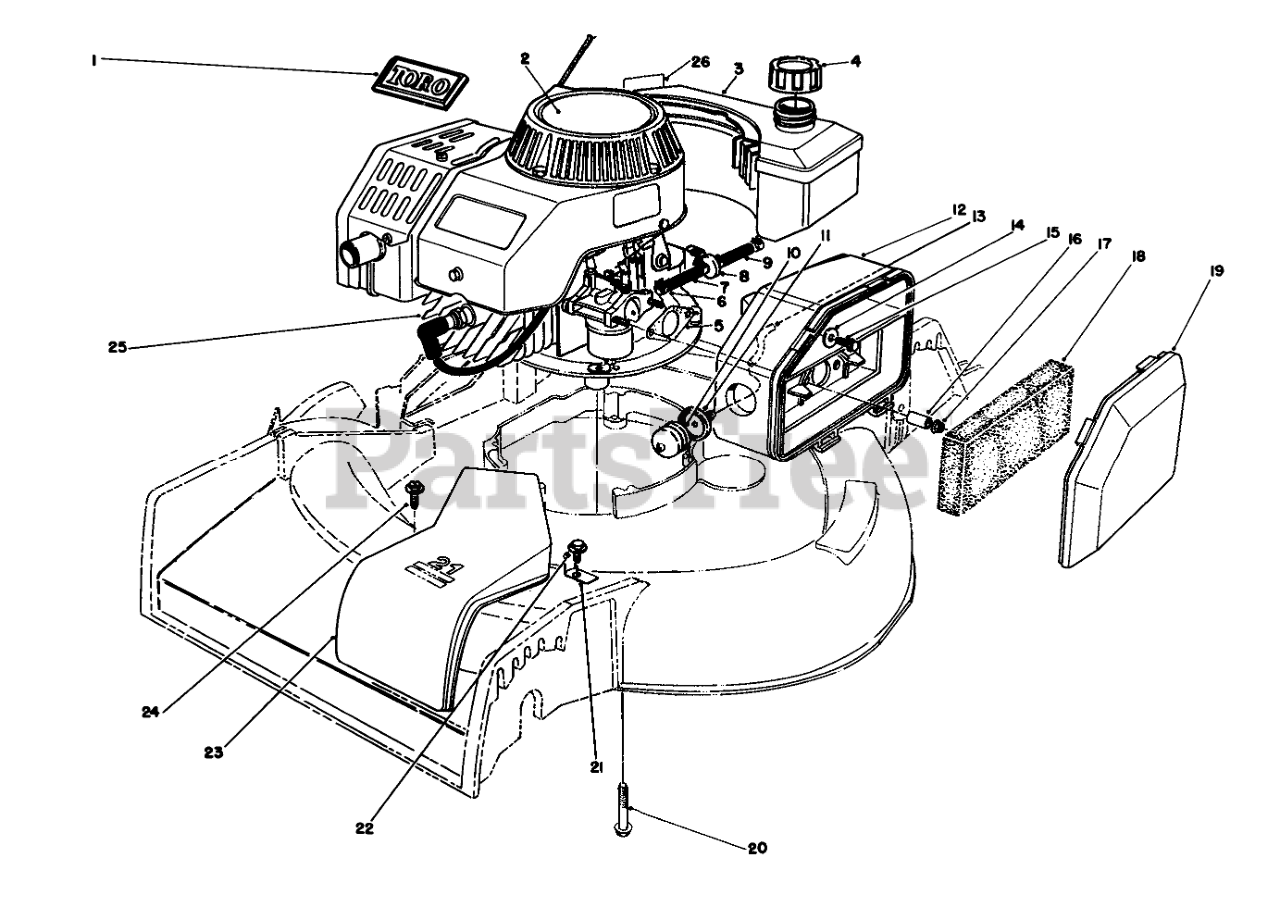

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

2

Toro 57-3110

DECAL- 2 CYC RECOIL

$

$

Not available

3

Toro 81-0162

FUEL TANK ASM
(Superseded to 99-5263)

$

$

Not available

4

Toro 55-3575

GAS CAP ASM

$20.99

$

Usually ships in 3-6 days

0

5

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

6

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

7

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 6

0

9

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

10

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

11

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

12

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

13

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, only 1 left!

0

14

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

15

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

16

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

17

Toro 50-7180

NUT

$6.99

$

In Stock, only 1 left!

0

18

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

Usually ships in 3-6 days

0

19

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

20

Toro 66-9302

SCREW-HHF, WHIZ

$4.99

$

Usually ships in 3-6 days

0

21

Toro 70-8080

BELT GUIDE

$3.49

$

In Stock, only 1 left!

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 46-4780

BELT COVER 21" S D

$

$

Not available

24

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

25

Toro 51-0413

Engine
(Superseded to 12-8099)

$

$

Not available

26

Toro 40-2440

Decal-Maintenance

$

$

Not available
