16202 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) CARBURETOR ASSEMBLY Parts Diagram

Walk-Behind Mower

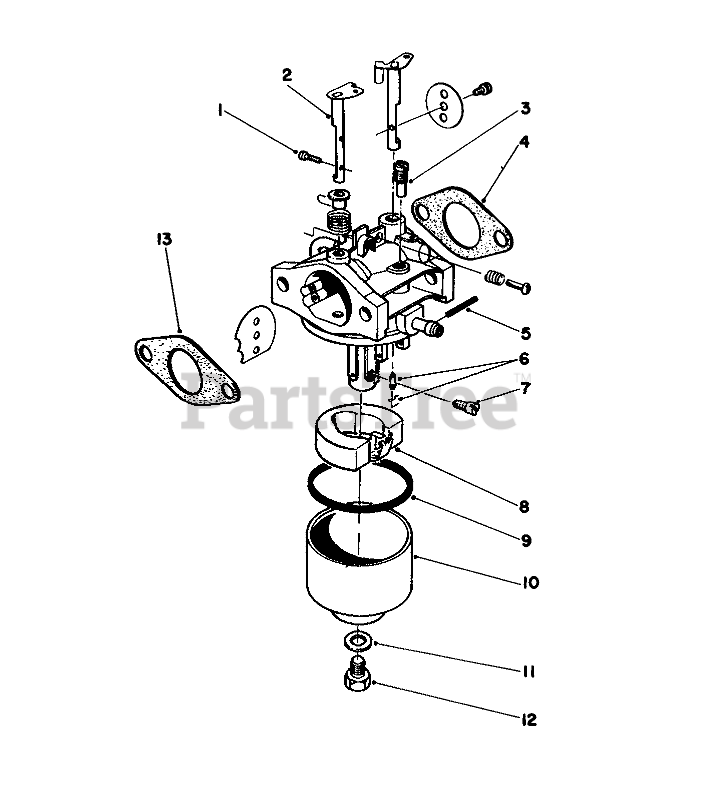

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 81-2160

SCREW

$4.99

$

Usually ships in 3-6 days

0

2

Toro 81-1950

SHAFT-CHOKE

$

$

Not available

3

Toro 81-1030

PILOT JET

$33.99

$

Usually ships in 3-6 days

0

4

Toro 81-0780

GASKET-CARB

$6.99

$

In Stock, only 2 left!

0

5

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 81-1600

NEEDLE VALVE ASM

$68.99

$

Usually ships in 3-6 days

0

7

Toro 81-2340

JET-HIGH ALTITUDE

$20.99

$

Usually ships in 3-6 days

0

Toro 81-1940

MAIN JET (76.3)

$

$

Not available

8

Toro 81-0970

FLOAT

$60.99

$

Usually ships in 3-6 days

0

9

Toro 81-1010

GASKET

$19.99

$

In Stock, only 1 left!

0

10

Toro 81-1610

Bowl-Float
(Superseded to 81-5660)

$71.99

$

Usually ships in 3-6 days

0

11

Toro 81-1020

GASKET

$

$

Not available

12

Toro 81-1000

Bolt
(Superseded to 81-5670)

$14.99

$

Usually ships in 3-6 days

0

13

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

Toro 81-1960

Carburetor Kit (Incl. Ref. #4,6,9,11&13)

Note: Not illustrated

$

$

Not available

Toro 81-1930

Carburetor Assy. Complete
(Superseded to 81-4900)

Note: Not illustrated

$

$

Not available
