16202 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

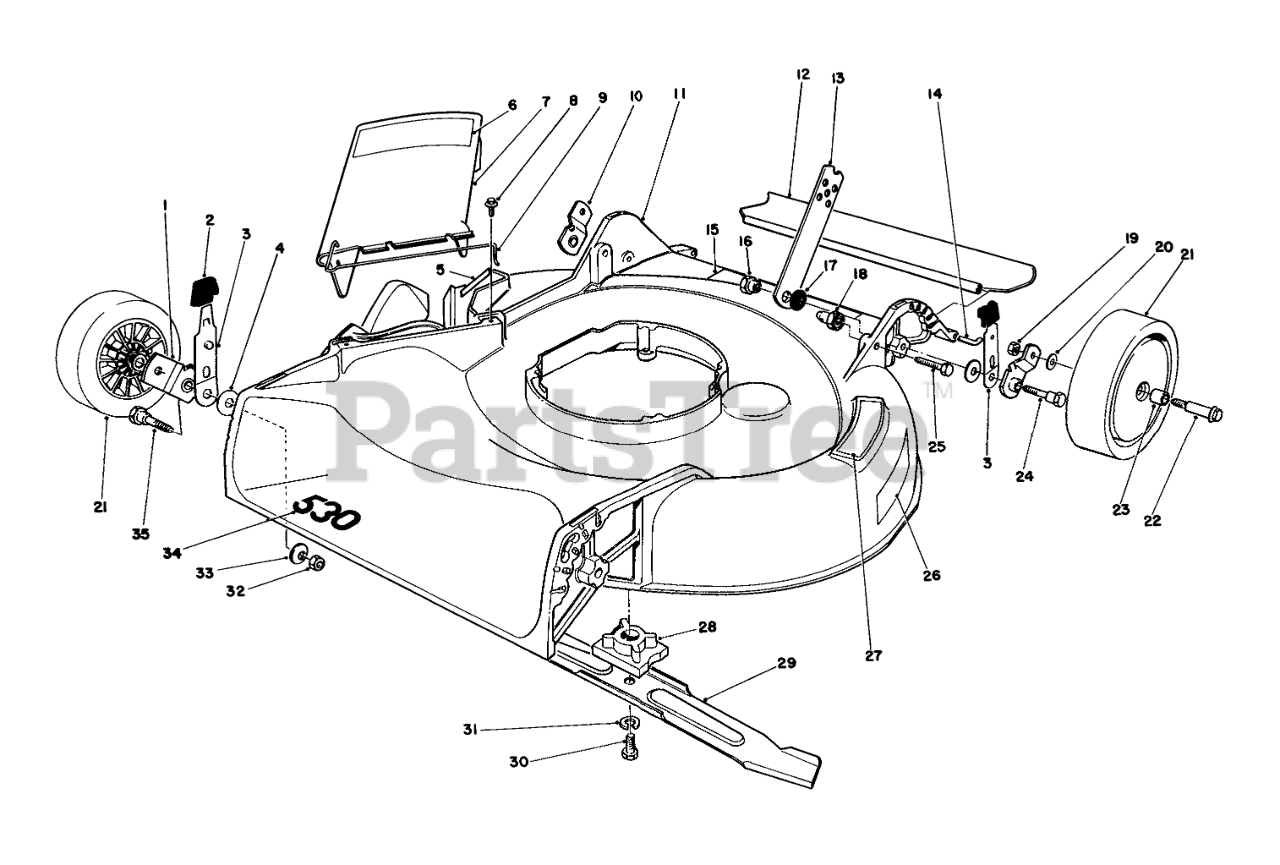

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 25-8000

SPRING ARM ASM

$

$

Not available

4

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

5

Toro 40-2760

Decal-Danger

$

$

Not available

6

Toro 47-7410

DANGER DECAL

$

$

Not available

7

Toro 27-7818

Deflector Assembly (Incl Ref. #689)
(Superseded to 13-5909)

$129.99

$

Usually ships in 3-6 days

0

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 20-2640

SPRING HINGE

$

$

Not available

10

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

11

Toro 11-4589

HOUSING/DECAL

$

$

Not available

12

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

13

Toro 27-7080

HANDLE LATCH

$

$

Not available

14

Toro 33-3201

SHIELD ROD

$

$

Not available

15

Toro 49-8380

DECAL-DANGER

$

$

Not available

16

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

17

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

18

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

19

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

20

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

21

Toro 11-9509

Wheel 8 Tire Assembly (Incl. Ref. #23)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

22

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

23

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

24

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

25

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 47-7400

Decal-Place Foot Here

$

$

Not available

27

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

28

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0

29

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

30

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

31

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

34

Toro 46-8310

Decal-530

$

$

Not available

35

Toro 25-3440

PIVOT SCREW

$

$

Not available
