16202 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

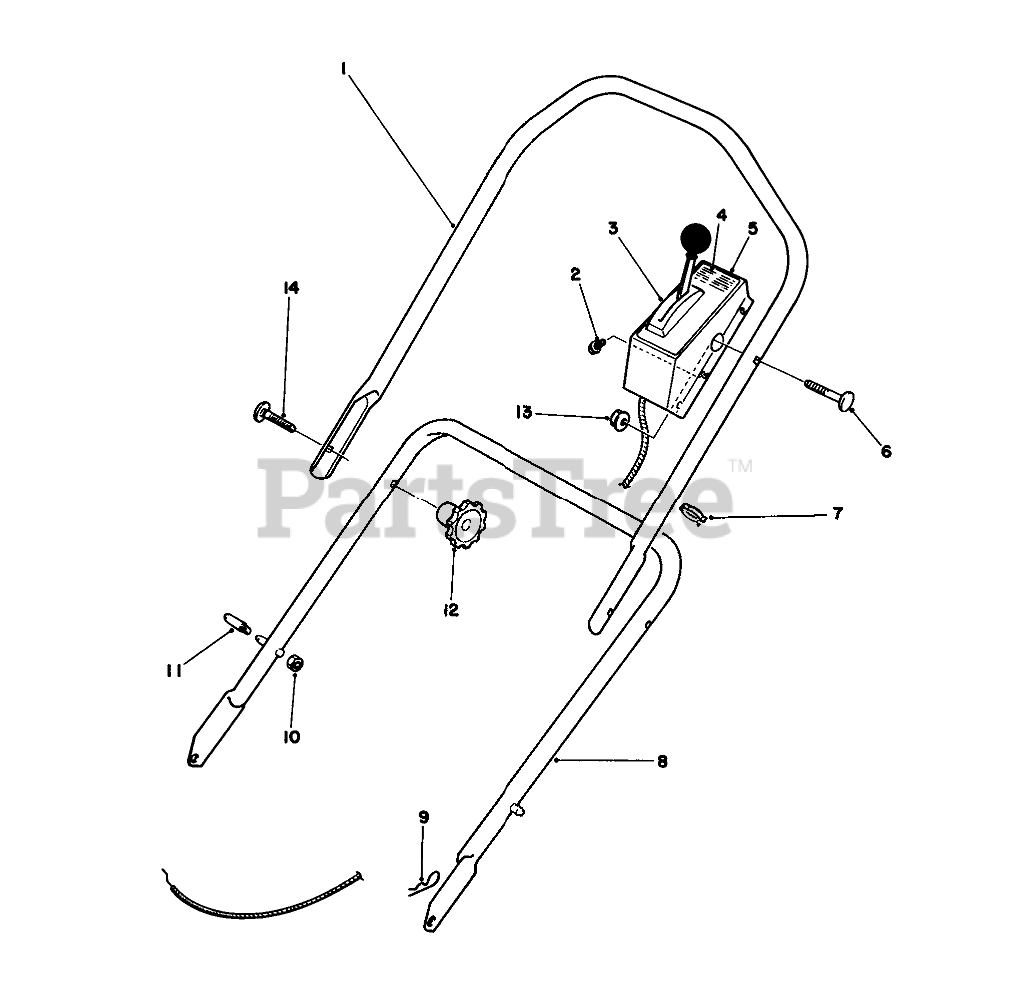

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

2

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 49-4183

THROTTLE CONT-SERVICE

$77.99

$

Usually ships in 3-6 days

0

4

Toro 49-8000

CONTROL COVER DECAL

$

$

Not available

5

Toro 11-7039

Cover-Control (Incl. Ref. #4)
(Superseded to 49-1650)

$

$

Not available

6

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

7

Toro 218-466

CLIP

$

$

Not available

8

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

9

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

10

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 20+

0

11

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$36.99

$

Usually ships in 3-6 days

0

12

Toro 194050

Horn

$

$

Currently unavailable

13

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

14

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

Toro 12-0739

Loose Parts

Note: Not illustrated

$

$

Not available
