1620 (137-270-100) - Cub Cadet Garden Tractor Fuel Tank & Related Parts Parts Diagram

Garden Tractor

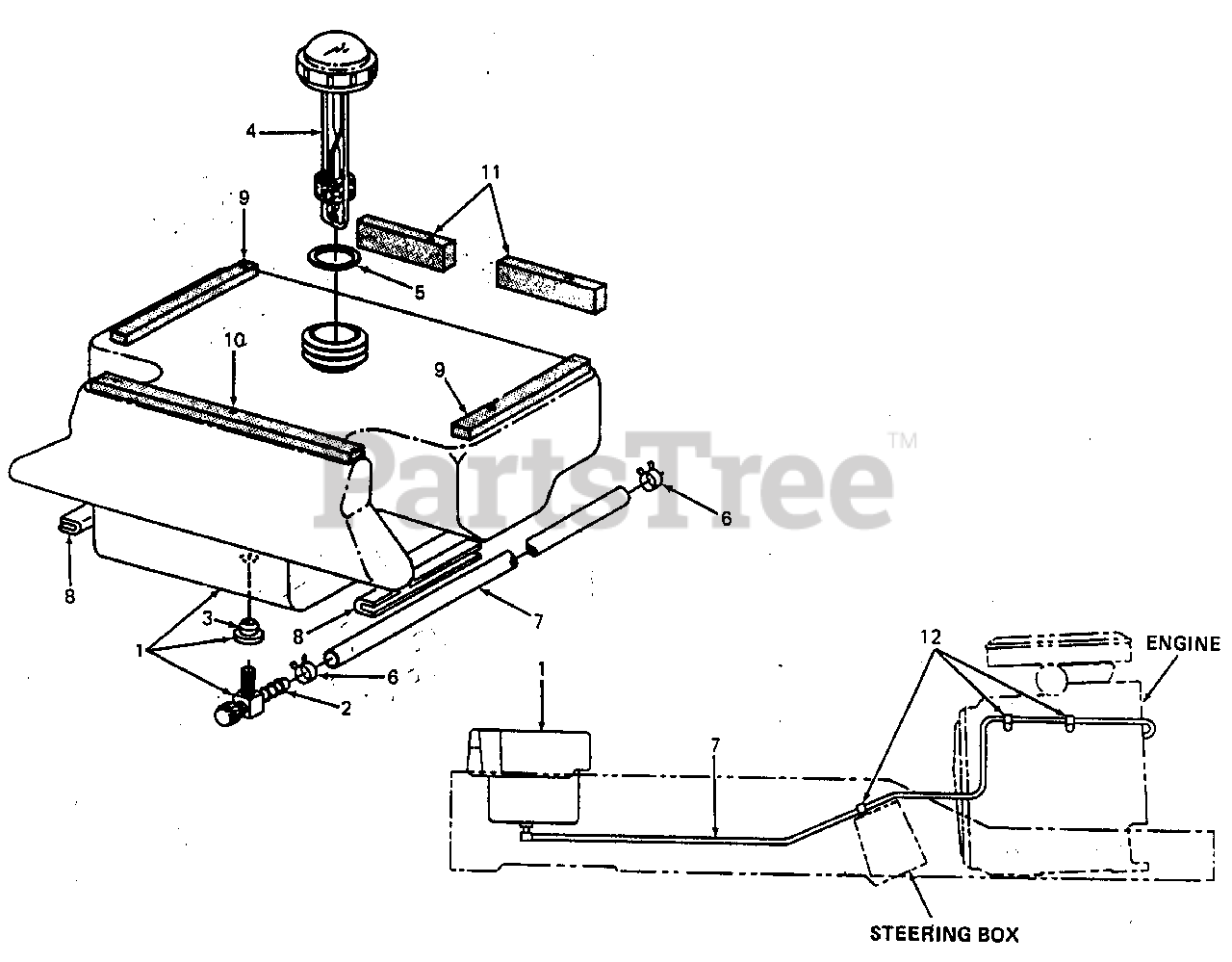

Fuel Tank & Related Parts Parts Diagram

  • Title

1

Cub Cadet 759-3195

Tank Assy, Fuel

Note: (Includes Ref No. 2 & 3)

$

$

Currently unavailable

2

Cub Cadet 751-0171

Valve w/ Screen, Shut-off
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet 751-3044

Cap w/ Gauge, Fuel Tank

$

$

Not available

5

Cub Cadet 723-3003

Gasket, Fuel Tank Cap

$

$

Not available

6

Cub Cadet 726-0205

Clamp, 1/2 O.D.Tube Hose

$3.99

$

In Stock, Qty 18

0

7

Line, Fuel, 65 in. Long

Note: (Order Bulk Fuel Line Part No. 759-3330 10 ft. Long)

$

$

Not available

8

Cub Cadet 703-1368

Seal, Edge, 4 in. Long

$

$

Not available

9

Cub Cadet 703-1348

Strip, Foam Gasket Sealing, 5 in. Long

$

$

Not available

10

Cub Cadet 703-1349

Strip, Foam Gasket Sealing, 12 in. Long

$

$

Not available

11

Cub Cadet 723-3051

Strip, Foam Gasket Sealing, 3 in. Long

$

$

Not available

12

Cub Cadet KH-48-154-01

Clip
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, Qty 5

0
