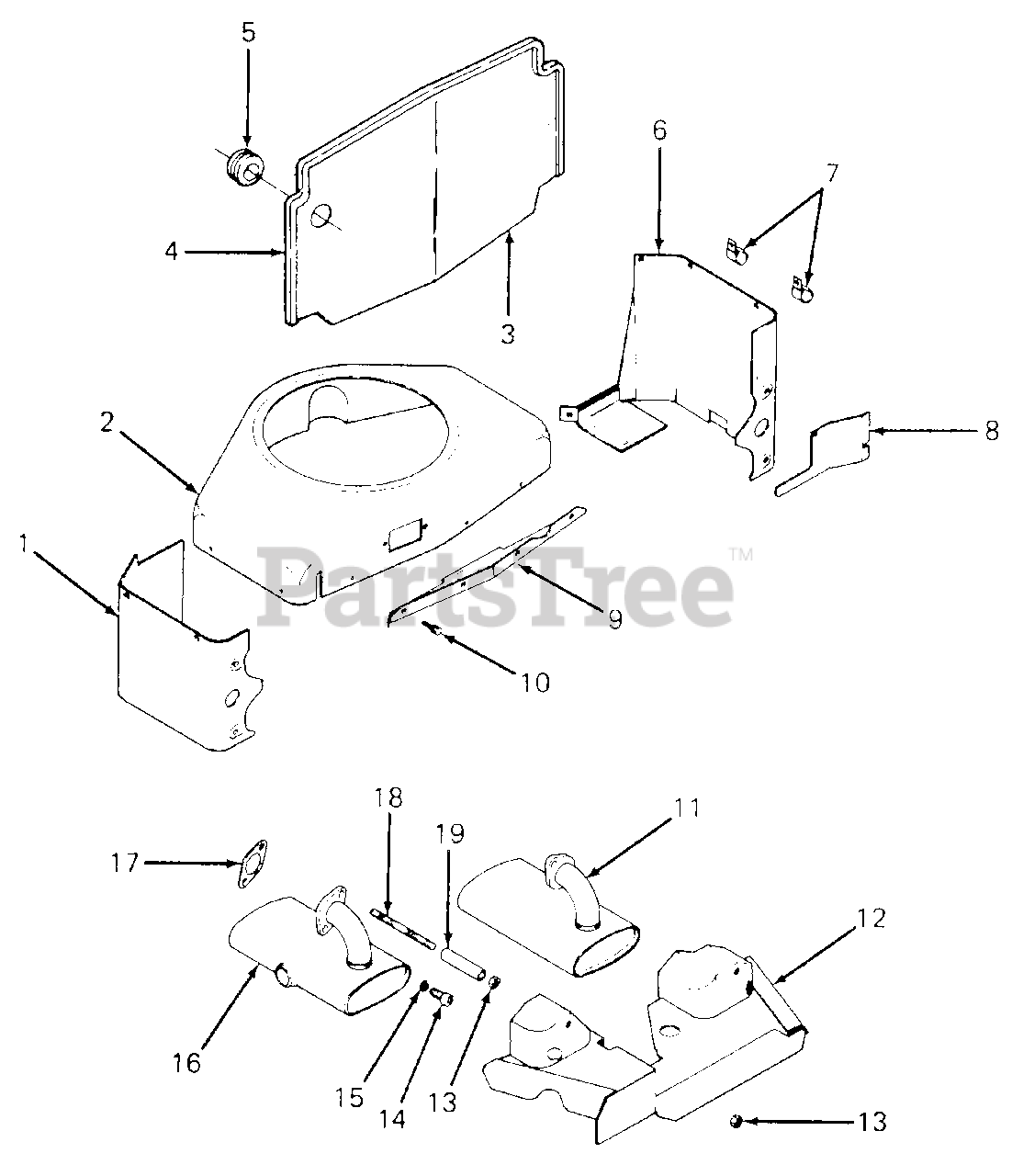

1620 (137-270-100) - Cub Cadet Garden Tractor Exhaust, Baffles & Shrouds Parts Diagram

Garden Tractor

Exhaust, Baffles & Shrouds Parts Diagram

  • Title

1

Cub Cadet KH-52-124-23

Baffle, Cylinder Head, RH

$

$

Not available

2

Cub Cadet KH-52-027-26

Housing, Blower

$

$

Not available

3

Cub Cadet 703-1498

Baffle, Engine Heat

$

$

Not available

4

Cub Cadet 723-3050

Seal, Engine Heat Baffle

$

$

Not available

5

Cub Cadet 723-3041

Bushing, Snap, 3/4

$

$

Currently unavailable

6

Cub Cadet KH-52-124-30

Baffle, Cylinder Head, LH
(Superseded to KH-52-063-21-S)

$

$

Not available

7

Cub Cadet KH-48-154-01

Clip
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, only 4 left!

0

8

Cub Cadet KH-52-063-01

Top, Cylinder, LH
(Superseded to KH-52-063-01-S)

$

$

Not available

9

Cub Cadet KH-52-217-01

Support, Upper Housing

$

$

Not available

10

Cub Cadet KH-X-67-83

Screw, Hex Wash Hd, 1/4-20 X 7/16
(Superseded to KH-25-086-106-S)

$2.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-52-068-23

Muffler, LH
(Superseded to KH-52-068-26-S)

$235.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-52-281-16

Shield, Heat

$

$

Not available

13

Cub Cadet KH-X-82-2

Nut, Hex, 5/16-18

$

$

Not available

14

Cub Cadet KH-X-55-6

Screw, Hex Socket Hd, 5/16-18 X 3/4
(Superseded to KH-25-086-87-S)

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet KH-X-21-1

Washer, Lock, 5/16

$

$

Not available

16

Cub Cadet KH-52-068-22

Muffler, RH

$

$

Not available

17

Cub Cadet KH-52-041-14

Gasket, Exhaust
(Superseded to KH-52-041-14-S)

$10.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-52-072-13

Stud, 5/16-18 X 4

$

$

Not available

19

Cub Cadet KH-52-112-08

Spacer, 5/16 I.D. X 9/16 O.D.

$

$

Not available
