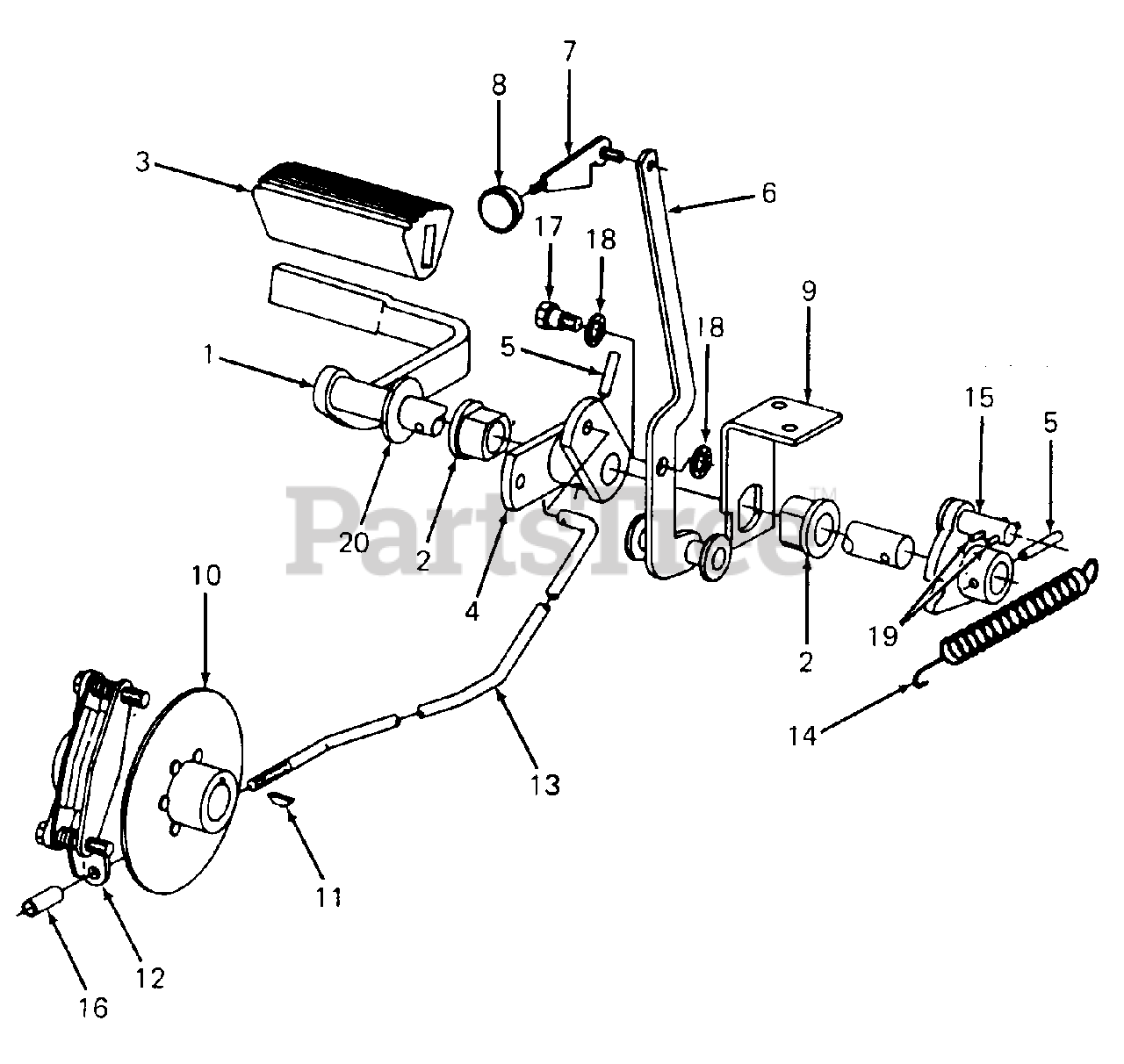

1620 (137-270-100) - Cub Cadet Garden Tractor Brake Pedal & Connections Parts Diagram

Garden Tractor

Brake Pedal & Connections Parts Diagram

  • Title
1

Cub Cadet 703-1243

Pedal, Brake

$

$

Currently unavailable

2

Cub Cadet 748-0151

Bearing, Flanged
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

3

Cub Cadet 735-0189

Pad, Foot

$

$

Not available

4

Cub Cadet 703-1176

Control, Brake Link

$

$

Currently unavailable

5

Cub Cadet 715-3028

Pin, 1/4 X 1-1/4 Pln Slt-Spr

$

$

Not available

6

Cub Cadet 703-1226

Lever, Parking Brake

$

$

Not available

7

Cub Cadet 703-1224

Handle, Brake Lock

$

$

Not available

Cub Cadet 712-0998

Nut, No. 10 Cad P/T Lock GR 5

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 720-3016

Knob, Brake Lock Handle

$

$

Not available

9

Cub Cadet 703-1120

Bracket, Brake

$

$

Currently unavailable

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet 712-3000

Nut, 3/8 GR 5

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 761-3010

Disc & Hub

$

$

Not available

11

Cub Cadet 714-0126

Key, No. 9 Hi-Pro

$4.99

$

In Stock, Qty 19

0

12

Cub Cadet 761-3000

Brake Assy, Caliper For Components See Brake Assembly

$

$

Not available

Cub Cadet 736-0463

Washer, .281 X .625 X .051

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 712-0107

Nut, 1/4-20, Hex Patch Lock
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 747-3099

Rod, Brake

$

$

Not available

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Pln Cot

$4.99

$

In Stock, Qty 14

0

Cub Cadet 736-0185

Washer, .406 X .812 X .065 Hdn

$3.99

$

In Stock, only 3 left!

0

Cub Cadet 712-0130

Nut, 3/8 Cad P/T Lock GR 5

$3.99

$

In Stock, Qty 13

0

14

Cub Cadet 732-3045

Spring, Brake Pedal Return

$

$

Not available

15

Cub Cadet 703-1316

Cam, Hydro

$

$

Not available

16

Cub Cadet 750-0262

Spacer, .375 X .50 X 1.42

$

$

Not available

17

Cub Cadet 738-0258

Screw, Shoulder
(Superseded to 938-0258)

$

$

Not available

18

Cub Cadet 736-0232

Washer, Wave

$4.99

$

In Stock, Qty 12

0

19

Cub Cadet 715-0119

Pin, 5/32 X 3/4 Slt-Spg

$

$

Not available

20

Cub Cadet 736-3028

Washer, .781 X 1.25 X .054

$

$

Not available
