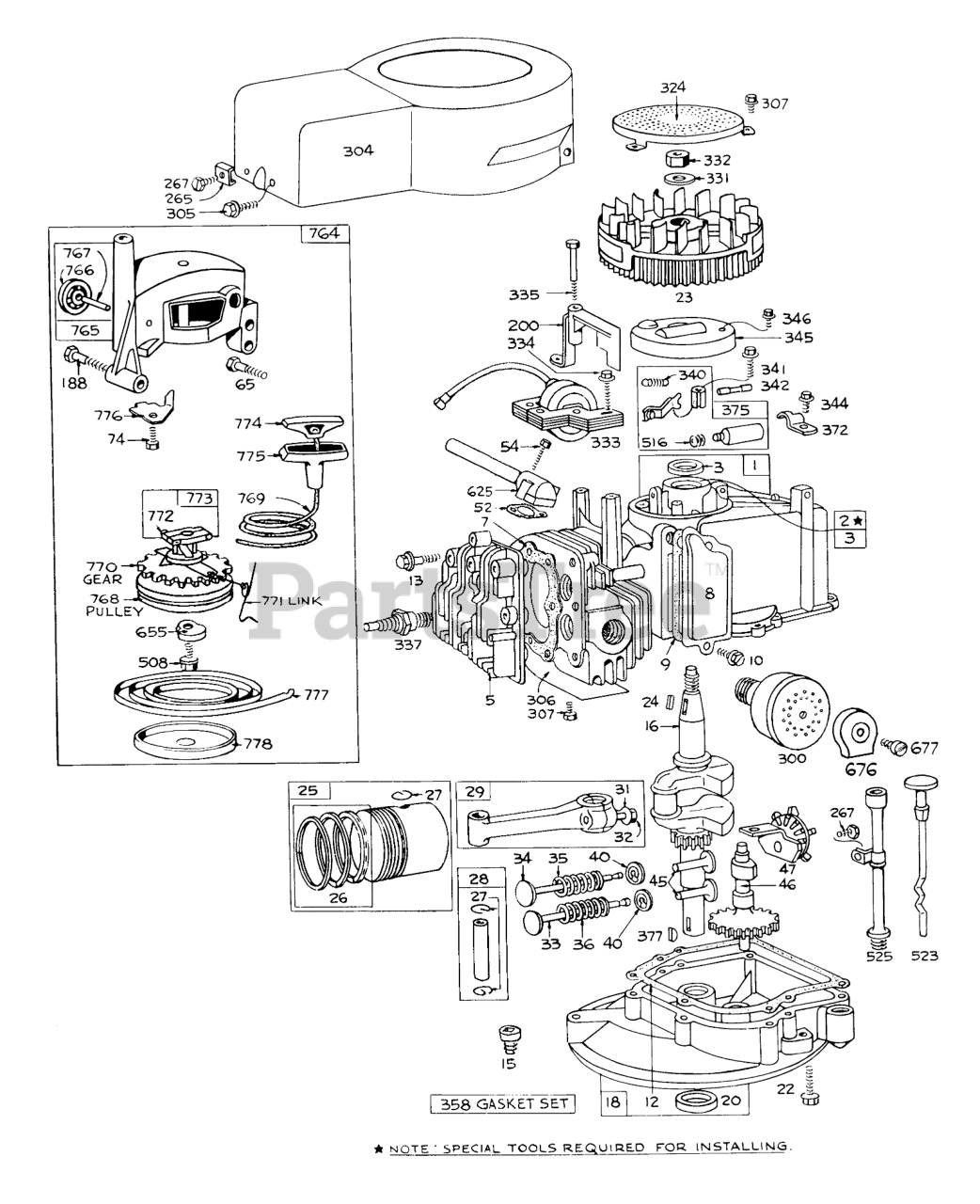

16173 - Toro Whirlwind Walk-Behind Mower (SN: 003000001 - 003999999) (1973) ENGINE BRIGGS & STRATTON - MODEL 92908-1224-01 FOR 21" SELF-PROPELLED MODEL 16273 Parts Diagram

Whirlwind Walk-Behind Mower

ENGINE BRIGGS & STRATTON - MODEL 92908-1224-01 FOR 21" SELF-PROPELLED MODEL 16273 Parts Diagram

  • Title

1

Briggs & Stratton 298988

Cylinder
(Superseded to 396002)

$248.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 211479

Head Cylinder
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 270341

Gasket-Cylinder Hd.
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 298383

Breather-Valve
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 270239

Gasket Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part Num 298989

$4.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 27586

Gasket-Crankcase" thick (Standard)
(Superseded to 692218)

Note: Included in Gasket Set-Part Num 298989

$

$

Not available

Briggs & Stratton 27617

Gasket-Crankcase .005" thick
(Superseded to 270895)

Note: Included in Gasket Set-Part Num 298989

$9.99

$

In Stock, only 3 left!

0

Briggs & Stratton 27618

Gasket-Crankcase .009" thick
(Superseded to 270896)

Note: Included in Gasket Set-Part Num 298989

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 93418

Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 261133

Crankshaft

$148.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 390810

Sump-Oil

$

$

Not available

20

Briggs & Stratton 291841

&al, Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 299982

Key-Flywheel
(Superseded to 394848)

$46.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

Piston Assy.-Std.
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

Piston Assy.-010"O.S.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

Piston Assy.-020"O.S.

$

$

Not available

Briggs & Stratton 298907

Piston Assy. .030" O.S.

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Std.)

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$

$

Not available

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298985

Lock-Piston Pin

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294201

Rod Assy., Conn.
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

31

Briggs & Stratton 220756

Lock, Conn Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve Exhaust

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210453

Gear-Cam
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 294652

Oil Slinger Gear & Bracket
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

Gasket-Intake Elbow
(Superseded to 270345S)

$4.49

$

In Stock, Qty 6

0

54

Briggs & Stratton 93485

Screw Intake Elbow Mtg.
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93587

Screw-Starter Mounting
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

200

Briggs & Stratton 68388

Blade Governor

$26.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

300

Briggs & Stratton 391294

Muffler
(Superseded to 394569S)

$10.99

$

Usually ships in 2-12 days

0

304

Toro 299983

Housing-Blower

$

$

Currently unavailable

305

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

306

Briggs & Stratton 221805

Shield Cylinder
(Superseded to 690400)

$6.49

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

324

Briggs & Stratton 222063

Screw-Rotating
(Superseded to 223006)

$10.99

$

Usually ships in 2-12 days

0

331

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 298502

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93435

Screw-Armature & Governor Blade
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 298809

Plug Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover Breaker Pt. & Cond.

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93014

Screw
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 298989

Gasket Set
(Superseded to 590777)

$

$

Not available

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

377

Briggs & Stratton 93065

Key-Woodruff
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

508

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

523

Toro 299978

Cap w/Dipstick Oil Filler

$

$

Currently unavailable

525

Briggs & Stratton 299987

Tube, Oil Filler
(Superseded to 392055)

$47.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 298775

Tube Intake
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 221794

Deflector
(Superseded to 393755)

$

$

Not available

677

Briggs & Stratton 93606

Screw

$3.99

$

Usually ships in 2-12 days

0

764

Toro 299946

Starter Assy.-Vertical Pull

$

$

Currently unavailable

765

Briggs & Stratton 299947

Housing, Vert. Pull Starter
(Superseded to 395914)

$55.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Duct Body

$11.99

$

Usually ships in 2-12 days

0

767

Briggs & Stratton 93586

Pin, Small Rope Pulley

$3.49

$

Usually ships in 2-12 days

0

768

Toro 280018

Pulley, Rope Gear

$

$

Currently unavailable

769

Briggs & Stratton 66734

Rope-Starter (48.6")

$6.49

$

In Stock, Qty 12

0

770

Toro 280020

Gear, Vert. Pull Starter

$

$

Currently unavailable

771

Briggs & Stratton 299961

Clip-Starter

$6.49

$

Usually ships in 2-12 days

0

772

Briggs & Stratton 93598

Screw, Sem

$5.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 390112

Retainer Assy., Spur Gear

$9.49

$

Usually ships in 2-12 days

0

774

Toro 280035

Insert, Starter Handle

$

$

Currently unavailable

775

Briggs & Stratton 280036

Grip-Starter Rope
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

776

Briggs & Stratton 222049

Guide Rope

$3.99

$

Usually ships in 2-12 days

0

777

Briggs & Stratton 390066

Spring-Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Starter

$

$

Not available
