16172 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1973) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

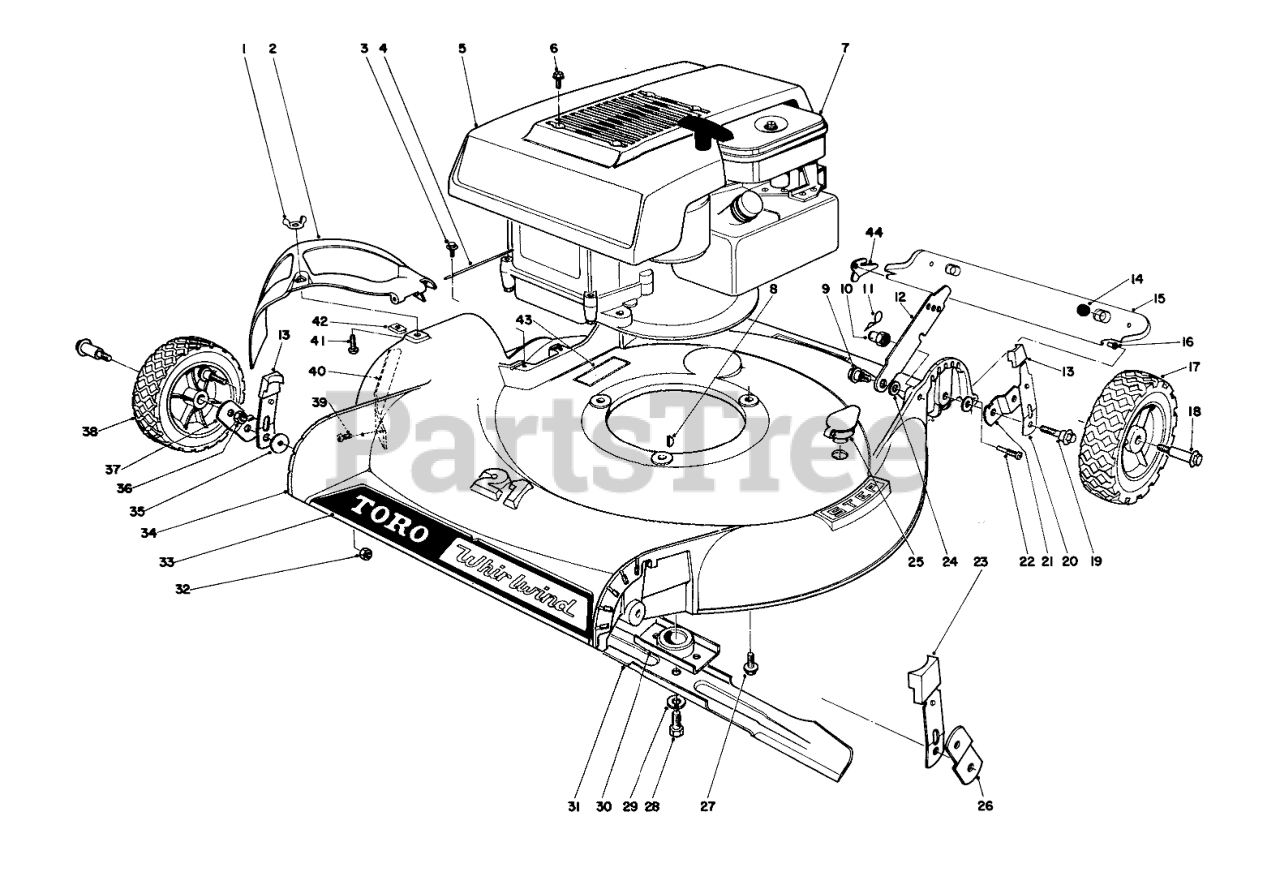

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

2

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

3

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

4

Toro 3-2644

HINGE PIN

$

$

Not available

5

Toro 12-4470

Shroud
(Superseded to 28-4720)

$79.99

$

Usually ships in 3-6 days

0

6

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

7

Toro 221-439

Engine

$

$

Currently unavailable

8

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

9

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

10

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

11

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

12

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

13

Toro 6-6220

Arm Knob

$

$

Currently unavailable

14

Toro 5-6450

SKID BUTTON

$

$

Not available

15

Toro 19-5780

Safety Shield (Incl. Ref. 15 & 16)
(Superseded to 28-3780)

$

$

Not available

16

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

17

Toro 10-9680

WHEEL ASM 8

$

$

Not available

18

Toro 3-2652

Bolt

$

$

Not available

19

Toro 12-2440

PIVOT SCREW

$22.99

$

In Stock, only 1 left!

0

20

Toro 18-9590

Spring Arm

$

$

Not available

21

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

22

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

23

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 8

0

24

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

25

Toro 6-4500

WASHOUT PLUG

$

$

Not available

26

Toro 5-4473

Pivot Arm
(Superseded to 20-3170)

$

$

Not available

27

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

28

Toro 3-5246

SPECIAL SCREW

$

$

Not available

29

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

30

Toro 8-5380

BLADE RETAINER WA

$

$

Not available

31

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$33.99

$

Usually ships in 3-6 days

0

32

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

33

Toro 12-2460

Decal

$

$

Currently unavailable

34

Toro 5-5299

Housing

$

$

Currently unavailable

35

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

36

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

37

Toro 20-3180

PIVOT ARM D PLTD

$

$

Not available

38

Toro 10-9670

WHEEL ASM 7

$

$

Not available

39

Toro 32140-90

Screw

$

$

Currently unavailable

40

Toro 12-2990

Bar Safety

$

$

Not available

41

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

42

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

43

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

44

Toro 19-5680

Restraint R.H.

$

$

Not available

Toro 19-5740

Restraint L.H.

Note: Not illustrated

$

$

Not available

Toro 19-5790

Drain Plug Wrench

Note: Not illustrated

$

$

Not available

Toro 12-2950

Loose Parts-Kit

Note: Not illustrated

$

$

Currently unavailable
