16169 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) HANDLE ASSEMBLY MODELS 16073, 16173, 16273 Parts Diagram

Walk-Behind Mower

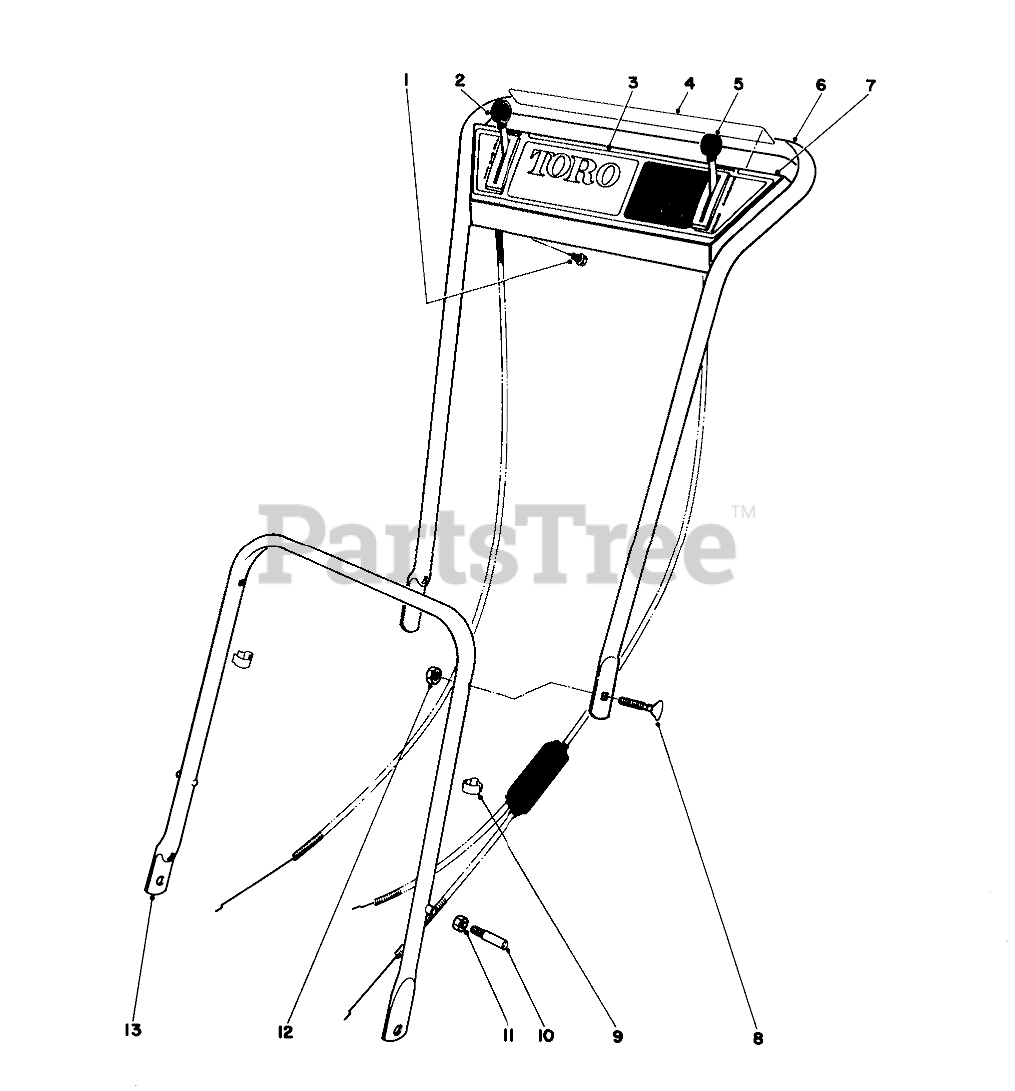

HANDLE ASSEMBLY MODELS 16073, 16173, 16273 Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 26-2030

Throttle Control
(Superseded to 46-6010)

$72.99

$

Usually ships in 3-6 days

0

3

Toro 26-2160

Decal Escutcheon Plate (Model No. 16273)

$

$

Not available

Toro 26-2150

Decal Escutcheon Plate (Model No. 16073 & 16173)

Note: Not illustrated

$

$

Currently unavailable

4

Toro 22-8140

Decal Safety Instructions

$

$

Currently unavailable

5

Toro 26-2040

Traction Control (Model No.16273)
(Superseded to 46-6050)

$

$

Not available

6

Toro 17-9290

UPPER HANDLE

$

$

Not available

7

Toro 25-0400

Escutcheon Plate (Model No.16273)

$

$

Not available

Toro 17-9300

Escutcheon Panel

Note: Not illustrated

$

$

Not available

8

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

9

Toro 218466

Clip

$

$

Currently unavailable

Toro 218-466

CLIP

Note: Not illustrated

$

$

Not available

10

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts Only

$

$

Not available

11

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts Only

$1.49

$

Usually ships in 3-6 days

0

12

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 17-9360

LOWER HDLE STKD ASM

$

$

Not available

Toro 19-4220

Grass Bag Kit

Note: Optional equipment

$

$

Not available

Toro 19-2590

Giant Bagging Kit

Note: Optional equipment

$

$

Currently unavailable
