16165 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

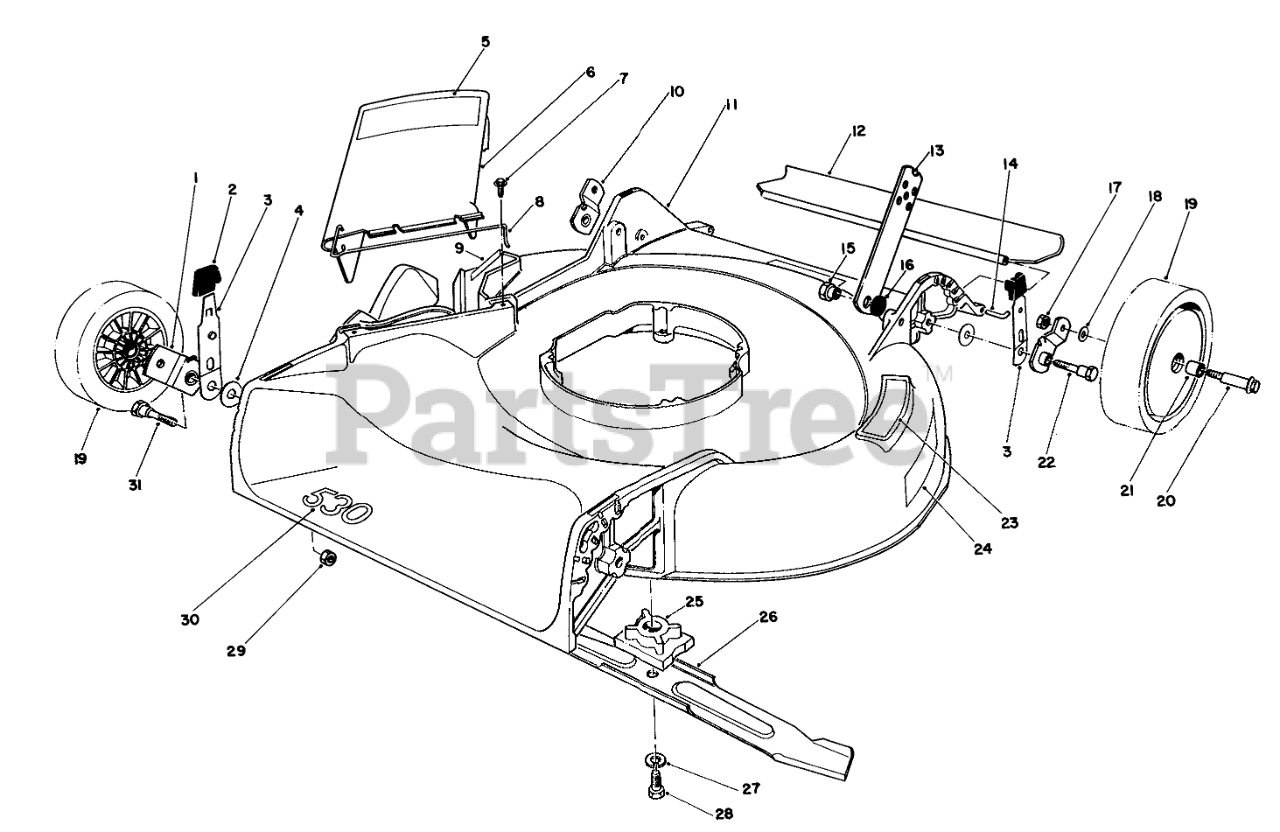

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

4

Toro 54460

Washer

$

$

Currently unavailable

5

Toro 46-9280

Decal-Danger(French)
(Superseded to 47-7410)

$

$

Not available

6

Toro 27-7815

Deflector Assy. (Incl. Ref. #5&8)
(Superseded to 13-5909)

$110.99

$

Usually ships in 3-6 days

0

7

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

8

Toro 20-2640

SPRING HINGE

$

$

Not available

9

Toro 40-2760

Decal-Danger

$

$

Not available

10

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

11

Toro 11-4589

HOUSING/DECAL

$

$

Not available

12

Toro 224950

Rear Shield

$

$

Currently unavailable

13

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

14

Toro 33-3201

SHIELD ROD

$

$

Not available

15

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

16

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 44-0560

Wheel & Tire Assembly (Incl. Ref. #21)
(Superseded to 11-6349)

$

$

Not available

20

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

21

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

22

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

23

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

24

Toro 40-2730

Decal-Step

$

$

Not available

25

Toro 49-7890

BLADE RETAINER

$64.99

$

Usually ships in 3-6 days

0

26

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 2 left!

0

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

28

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 46-8310

Decal-530

$

$

Not available

31

Toro 25-3440

PIVOT SCREW

$

$

Not available

Toro 11-4009

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
