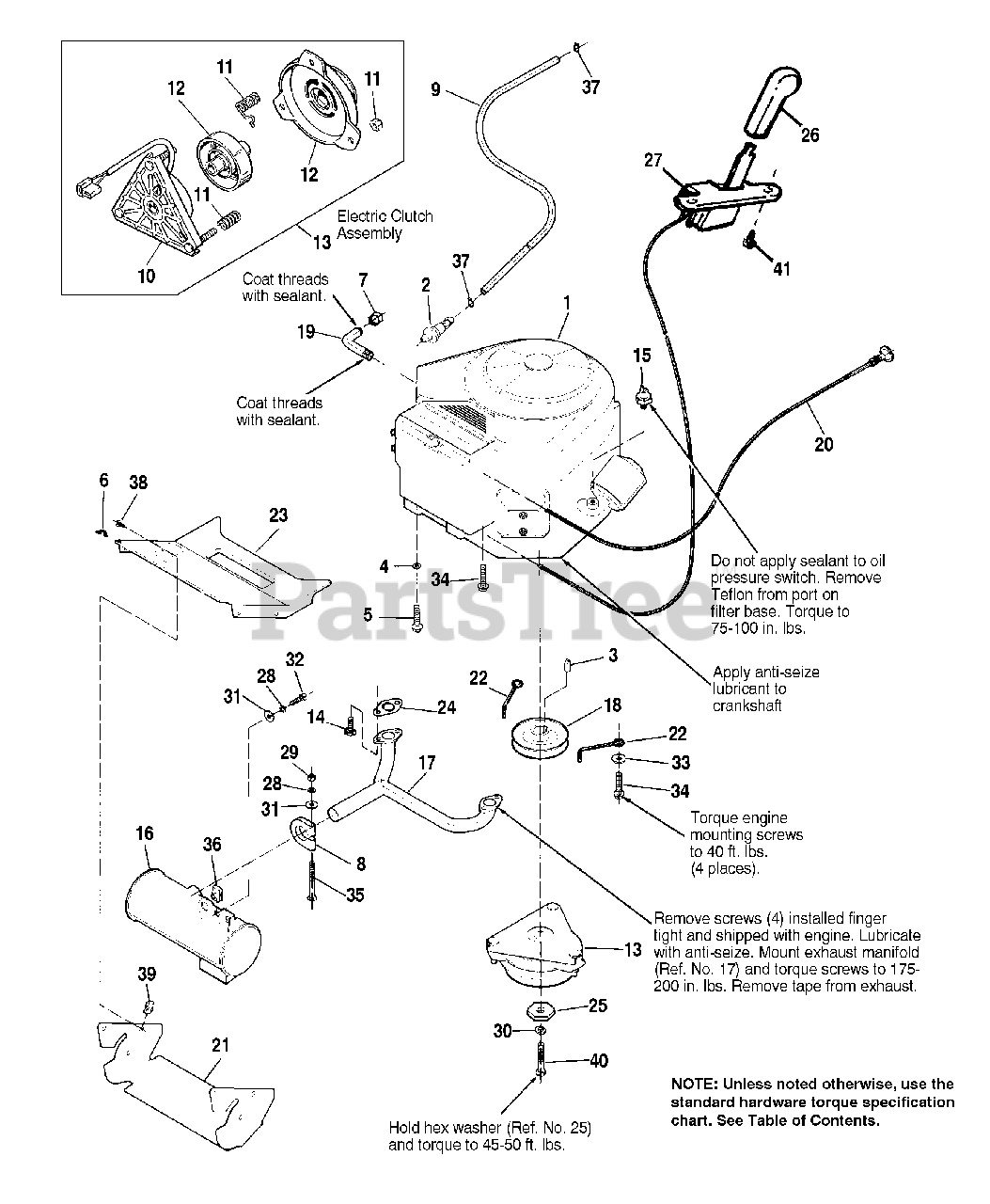

1616 H (1692739) - AGCO 44" Lawn Tractor, 16hp Engine Group - Electric Clutch - 14 & 16HP Twin Cylinder Parts Diagram

44" Lawn Tractor, 16hp

Engine Group - Electric Clutch - 14 & 16HP Twin Cylinder Parts Diagram

  • Title

1

ENGINE, Twin Cylinder

$

$

Not available

1

14 HP: 294777 - 0431-01

$

$

Not available

1

16 HP: 303777 - 0411-01

$

$

Not available

2

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

3

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 2820427SM

LOCKWASHER, External Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1667346SM

CAP, Oil

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1718678SM

HOSE, Fuel, 45-1/2" Long

$

$

Not available

10

Simplicity 1679101

FIELD ASSY., Clutch

$

$

Not available

11

Simplicity 1679104SM

SPRING & NUT KIT

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1703816SM

ROTOR & ARMATURE ASSY.

$555.99

$

Usually ships in 2-12 days

0

13

Simplicity 1703816SM

ELECTRIC CLUTCH

Note: (Incl. Ref. Nos. 10 - 12)

$555.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960407SM

SCREW, Metric

$4.49

$

In Stock, only 4 left!

0

15

Simplicity 1703956SM

SWITCH, Oil Pressure
(Superseded to 690233)

Note: Do not apply sealant to oil pressure switch. Remove Teflon from port on filter base. Torque to 75-100 in. lbs.

$28.99

$

In Stock, only 2 left!

0

16

Simplicity 1703971SM

MUFFLER ASSY.

$213.99

$

Usually ships in 2-12 days

0

17

Simplicity 1703986SM

MANIFOLD, Exhaust

Note: Remove screws (4) installed finger tight and shipped with engine. Lubricate with anti-seize. Mount exhaust manifold (Ref. No. 17) and torque screws to 175-200 in. lbs. Remove tape from exhaust.

$186.99

$

Usually ships in 2-12 days

0

18

Simplicity 1704307ASM

PULLEY ASSY.

$120.99

$

Usually ships in 2-12 days

0

19

Simplicity 1704343SM

DRAIN, Oil

$13.99

$

Usually ships in 2-12 days

0

20

Simplicity 1704344SM

CABLE, Choke Control

$49.99

$

Usually ships in 2-12 days

0

21

Simplicity 1704357SM

DUCT, Lower Muffler
(Superseded to 1704357ASM)

$179.99

$

Usually ships in 2-12 days

0

22

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

23

Simplicity 1707334SM

DUCT, Upper Muffler

$16.99

$

Usually ships in 2-12 days

0

24

GASKET, Exhaust Manifold

$

$

Not available

25

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

26

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, only 1 left!

0

27

Simplicity 1714068SM

THROTTLE CONTROL ASSY.

$52.99

$

In Stock, only 1 left!

0

28

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1919326SM

WASHER, Plain, 11/32

$4.49

$

In Stock, Qty 5

0

32

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1930598SM

SCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

Note: Torque engine mounting screws to 40 ft. lbs. (4 places).

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

36

Simplicity 1935255SM

PAL NUT, 5/16-18

$3.49

$

In Stock, only 2 left!

0

37

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 1960295SM

SCREW, Flange, Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1960370SM

CAPSCREW, 7/16-20 x 2-1/2

Note: Hold hex washer (Ref. No. 25) and torque to 45-50 ft. lbs.

$5.49

$

Usually ships in 2-12 days

0

41

Simplicity 1960536SM

SCREW, Hex, Washer Hd., Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0
