1615 H (1693157) - AGCO Lawn Tractor, 15hp Engine Group - Electric Clutch - 15HP Single Cylinder Kohler Parts Diagram

Lawn Tractor, 15hp

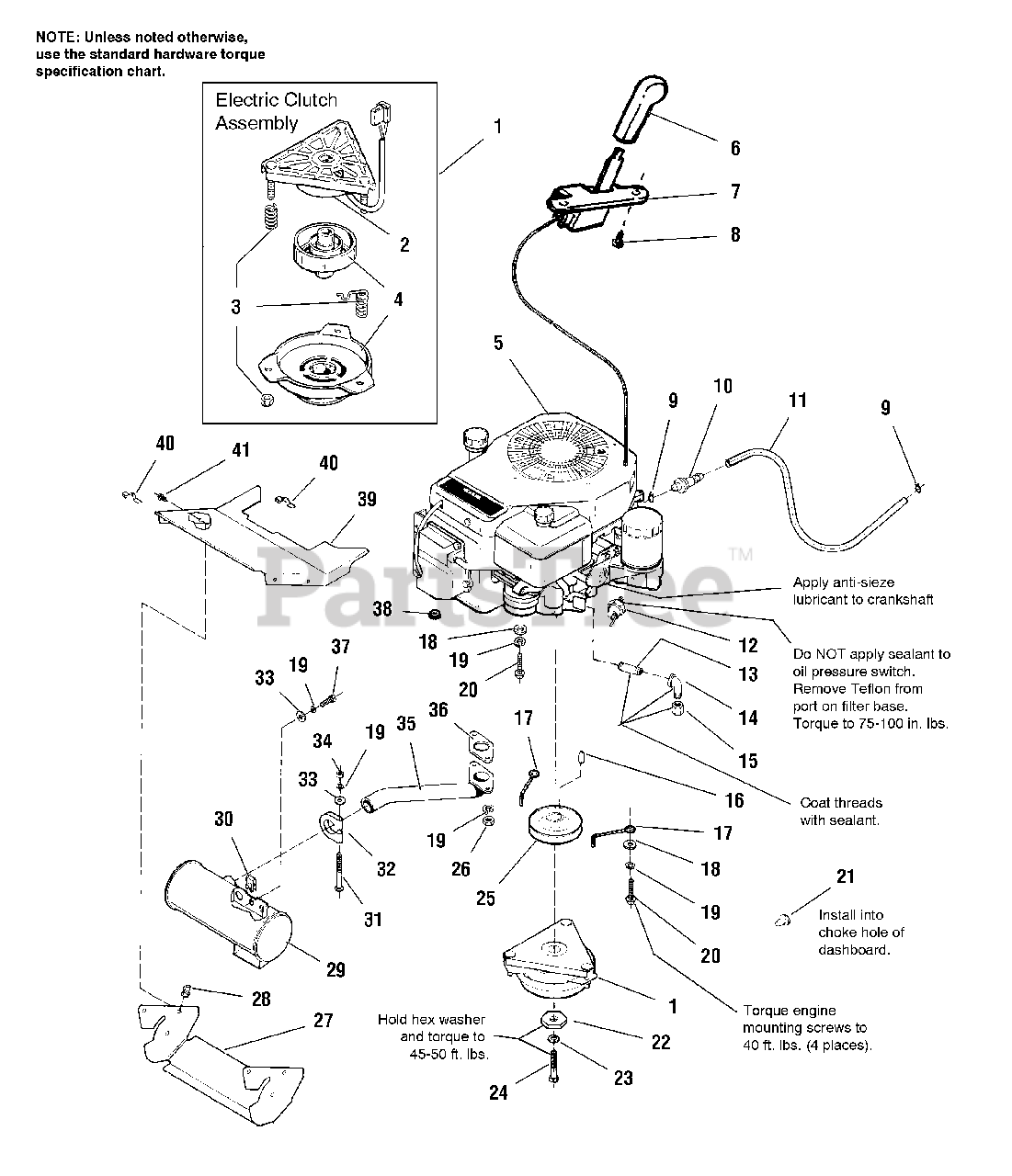

Engine Group - Electric Clutch - 15HP Single Cylinder Kohler Parts Diagram

  • Title

1

Simplicity 1703816SM

ELECTRIC CLUTCH

Note: (Incl. Ref. Nos. 2, 3 & 4)

$555.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679101

FIELD ASSY., Clutch

$

$

Not available

3

Simplicity 1679104SM

SPRING & NUT KIT

$12.99

$

Usually ships in 2-12 days

0

4

Simplicity 1703816SM

ROTOR & ARMATURE ASSEMBLY

$555.99

$

Usually ships in 2-12 days

0

5

ENGINE, 15HP Kohler Command

$

$

Not available

6

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, only 1 left!

0

7

Simplicity 1714065SM

THROTTLE CONTROL ASSY.

$64.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960536SM

SCREW, Hex, Washer Hd., Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1718678SM

HOSE, Fuel, 45-1/2" Long

$

$

Not available

12

Simplicity 1703956SM

SWITCH, Oil Pressure
(Superseded to 690233)

Note: Do NOT apply sealant to oil pressure switch. Remove Teflon from port on filter base. Torque to 75-100 in. lbs.

$28.99

$

In Stock, only 2 left!

0

13

Simplicity 1901491SM

PIPE NIPPLE, 3/8 x 2

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1673453SM

STREET ELBOW, 3/8 Pipe

$12.99

$

Usually ships in 2-12 days

0

15

Simplicity 1667346SM

CAP, Pipe

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

17

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

18

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1960405SM

SCREW, Taptite, M8-1-1/4 x 30mm

Note: Torque engine mounting screws to 40 ft. lbs. (4 places).

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1705358SM

FASTENER, Panel

$

$

Not available

22

Simplicity 1708264SM

WASHER, Hex

Note: Hold hex washer and torque to 45-50 ft. lbs.

$8.99

$

In Stock, Qty 5

0

23

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1960370SM

CAPSCREW, 7/16-20 x 2.5

Note: Hold hex washer and torque to 45-50 ft. lbs.

$5.49

$

Usually ships in 2-12 days

0

25

Simplicity 1704307ASM

PULLEY ASSY.

$120.99

$

Usually ships in 2-12 days

0

26

NUT, Exhaust

$

$

Not available

27

Simplicity 1704357SM

DUCT, Lower Muffler
(Superseded to 1704357ASM)

$179.99

$

Usually ships in 2-12 days

0

28

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1703971SM

MUFFLER ASSY.

$213.99

$

Usually ships in 2-12 days

0

30

Simplicity 1935255SM

PAL NUT, 5/16-18

$3.49

$

In Stock, only 2 left!

0

31

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

32

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

33

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

34

Simplicity 1917372SM

NUT, Full, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1722947SM

PIPE, Exhaust

$

$

Not available

36

GASKET, Exhaust

$

$

Not available

37

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1705440SM

DUCT, Top, Muffler

$21.99

$

Usually ships in 2-12 days

0

40

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960295SM

SCREW, Flange, Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0
